HPLC Guard Columns and Cartridges
Optimize Technologies EXPGuard Column Cartridge, 1mm x 5mm, HILIC, 3µm, 3pk
The EXP™ Guard Column cartridge system is rated to 15,000psi with hand-tight replaceable cartridges. This unique design connects directly to any UHPLC column with the auto-adjusting Titanium Hybrid Ferrule and EXP™ Fittings, providing repeated zero-dead-volume connections and easy adjustability between various column types. Free-Turn™ architecture allows the user to change cartridges by hand without breaking fluid connections on the holder inlet/ outlet. The combination of low-dispersion and ultra high-pressure capabilities provides effective protection with negligible effects on retention time, plate count, and peak shape. Use with EXP™ Direct Connect and In-line Holders.
Waters Corp Waters Porasil Silica Radial-Pak Cartridge, 125 Å, 15 to 20 μm, 25 mm x 100 mm
Radial-Pak columns are plastic compression cartridge segments that insert into radial compression modules (RCM- holder sold separately) for use on liquid chromatography systems.
- Silica chemistry
- Normal-phase separation mode
- pH range of 2 to 8
- Maximum pressure of 6000 psi (415 bar)
- Not endcapped
- Silica bonding technology
- Low silanol activity
- Irregular particle shape
- Particle size: 15 to 20 μm
- Pore size: 125 Å
- Radial-Pak column format
- Surface area: 330
- Compatible with HPLC systems
- USP classification L3
- Inner diameter: 25 mm
- Length: 100 mm
- 1 unit per package
Sepax Technologies Inc Sepax HPLC Column Proteomix SAX, NP3, Guard cartridge with holder, 4 x 10 mm
Sepax HPLC Column Proteomix SAX, NP3, Guard cartridge with holder, 4 x 10 mm
Mac-Mod Princeton 2-Ethylpyridine 100 Å, 5 µm, 2.1 x 10 mm Guard Cartridges (5/pk)
Princeton Chromatography Achiral SFC columns are designed and manufactured in the US, well known for innovating novel and robust workhorse phase chemistries, for the analysis of achiral SFC applications. Princeton designs myriad phase chemistries to improve the selectivity and efficiency of SFC analysis. Known for originally innovating the 2-EP phase chemistry, explore what Princeton has to offer. Columns are available from analytical to preparative sizes and are available in a wide range of pore sizes, particle sizes, column ID's and lengths. If you do not see something that you want, please just ask!
Waters Corp Waters Column, BEH C8, 1.7 μm, 2.1 × 50 mm
This column features BEH C8 chemistry, ideal for rapid method development. It incorporates MaxPeak High Performance Surface technology to reduce unwanted analyte/surface interactions and includes a VanGuard Fit design for enhanced protection and extended lifetime.
- BEH C8 chemistry for fast method development
- Trifunctionally bonded BEH particles provide wide pH range (1–12) and low pH stability
- MaxPeak High Performance Surface technology improves peak shape and signal by minimizing analyte/surface interactions
- Mitigates loss of metal-sensitive analytes
- Integrated VanGuard Fit design extends column lifetime and protects from contaminants
- Maximum pressure: 18000 psi (1240 Bar)
- Particle size: 1.7 μm; Pore size: 130 Å
- Dimensions: 2.1 mm ID, 50 mm length

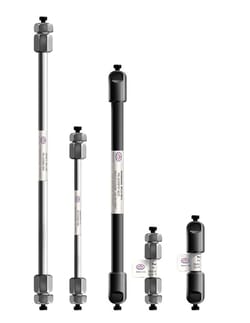

Sepax Technologies Inc Sepax HPLC Column GP-C4, 3 µm, 120 Å, 2 x 10 mm
Monomeric and fully endcapped GP-C4 packing is bonded with butyl groups that lead to moderate hydrophobicity. GP-C4 columns have unique selectivity and peak symmetry with moderate retention for separations of acidic, neutral and basic organic compounds, such as pharmaceuticals, peptides, and organic acids.
Waters Corp VanGuard Cartridge, C18, 130 Å, 3.5 μm, 2.1 mm X 5 mm
XSelect CSH C18 VanGuard Cartridges extend analytical column lifetime and performance by removing particulate contamination. They are optimized to protect 2.1 mm and 3.0 mm I.D. XSelect CSH C18 analytical columns with 3.5 μm sorbent particles.
- Extends analytical column lifetime and performance.
- Removes particulate and chemical contaminants.
- Protects 2.1 mm, 3.0 mm, and 4.6 mm I.D. analytical columns with 3.5 μm sorbent particles.
- Maintains UPLC, UHPLC, and HPLC separation.
- Sustains high pressures in ACQUITY UPLC System applications.
- Features BEH Technology C18, 130 Å pore size, and 3.5 μm particles.
- Q.C. tested with peptide map for consistent performance.
- Quick connection for UPLC column intake.
- Designed for reversed-phase liquid chromatography.
