pH, ORP, and Titration, Combination Electrodes
Hach Company DPD1P1 Digital pH Sensor, PEEK Body, Convertible Mount, with Adaptor Cable (Compatible with FL1500 Flow Logger)
The DPD1P1 is a digital pH sensor designed for continuous online process pH measurement. It features a PEEK body and a convertible mount, and includes an adaptor cable for connection to process controllers such as the FL1500 Flow Logger.
- Digital sensor for continuous online process pH measurement.
- PEEK body offers chemical resistance for process environments.
- Convertible mount supports flexible installation options.
- Includes adaptor cable for straightforward connection to controllers and loggers.
- Suitable for process monitoring and control applications.
Hach Company Intellical™ PHC281 Water Quality Laboratory Refillable pH Electrode, 3 m Cable
Intellical™ PHC281 is a digital combination pH electrode with built-in temperature sensor. The PHC281 is a pH refillable probe made for difficult samples. This laboratory pH electrode is shockproff with its Zeonor plastic body protecting down to the glass bulb sensing element. The electrode is available with a 3 or 1 m cable. The PHC281 refillable pH electrode has a high electrolyte flow rate and a large open junction ideal for difficult samples, such as Low Ionic Strength (LIS), Ultrapure, dirty samples and samples with high solids content. The PHC281 is not suitable for use with organic solvents. A 59-mL bottle of 2.44 M KCl Electrode Filling Solution is included with the probe.
Waters Corp Puncture Needle Assembly, .059 OD, I-Class, M-Class, UPC2 Compatible
This replacement Puncture Needle Assembly is designed for use on I-Class, M-Class, and UPC2 Fixed Loop Sample Managers. Its primary function is to pierce vial caps, allowing the sample needle to enter vials for sample analysis.
- Designed for use on I-Class, M-Class, and UPC2 Fixed Loop Sample Managers
- Pierces vial caps to allow sample needle to enter vials
- .059 outer diameter
- UPLC system compatible
- Mechanical type
- One unit per package
- As required replacement schedule
Cole-Parmer pH electrode, general purpose, combination, glass body, Delrin shield, BNC
Glass body combination probes are able to withstand higher temperatures and chemical attack. All have 3.3 ft (1 m) long cables with BNC connectors.

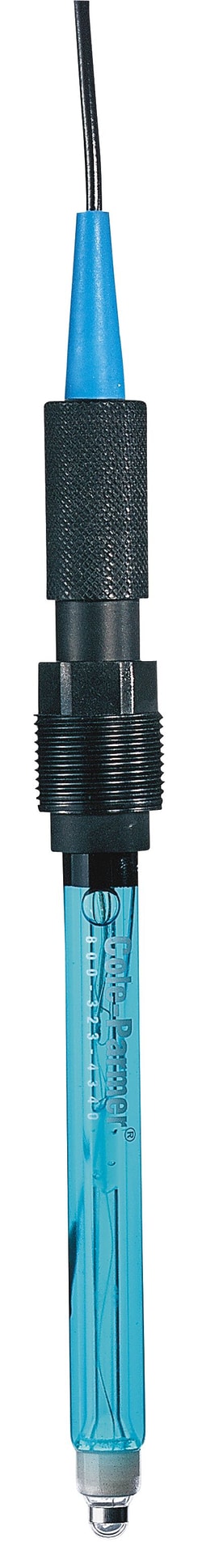

Cole-Parmer Removable Double-Junction ORP Electrode
Use for oxidation/reduction measurements in plating baths, waste-water monitoring, and other general-purpose applications. Platinum band ORP withstands temperatures from 23 to 212ºF (-5 to 100ºC).
World Precision Instrument Ussing Electrode Kit
The Electrode Kit contains four voltage/current electrodes, plus four luer-tipped cartridges. Electrodes are threaded and screw securely into the end of each cartridge. The luer tip then plugs securely into the luer openings of the chamber. The cable from each electrode terminates with a 2 mm pin which may be plugged into voltage/current clamps such as WPI’s DVC1000 or EVC-4000. The miniature electrode-gel cartridge is a small plastic tube with a male luer tip identical to those at the tip of hypodermic syringes. The tube may be filled with different gel materials; agar is commonly used but other gel materials may also be satisfactory.

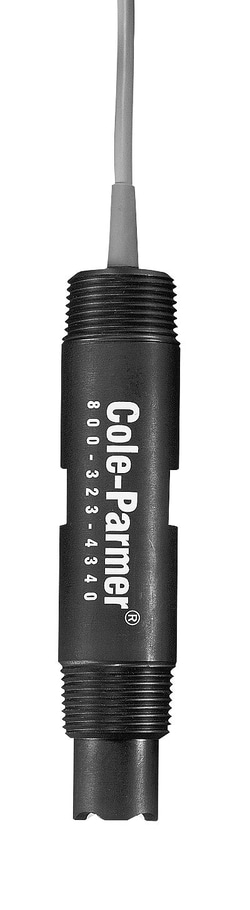

Cole-Parmer Side-Mount Tuff-Tip pH Probe, DJ/PVDF/No ATC; BNC
The tip design protects the bulb from breakage and the gel internal fill solution allows electrode to be installed where others cannot. Rugged PVDF housing with 1/2'' NPT (M) threads withstands temperatures from 23 to 176°F (--5 to 80°C) and pressures to 100 psi. Use for measurements up to pH 13. Models include a 10-ft cable with BNC pH connector. Insertion depth 1''.
Hach Company Radiometer Analytical PHC3359-8 Combination pH Electrode for Microsamples (d=3 mm, glass body, BNC)
The Radiometer PHC3359-8 Combination pH Electrode has a glass body, Ag/AgCl reference system, refillable electrolyte (3M KCl + sat. AgCl) and micro diameter (3 mm) for small volume sample measurements. The PHC3359-8 has a BNC connector and is compatible with Hach Sension+ laboratory pH meters.

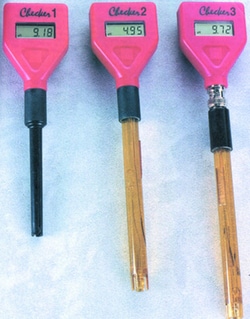

Electron Microscopy Sciences pH Tester Hi 1270 Replacement Electrode
Replacement screw-type, combination pH electrode for Checker 1.
Cole-Parmer pH Electrodes for Field Use; Single-Junction 3 Foot Cable
These combination electrodes withstand the most demanding field conditions—the semi-domed tip protects the pH bulb and ensures a quick response when taking measurements in harsh and dirty environments. Easy-to-clean electrodes feature an impact-resistant epoxy body for further protection from the elements. The large, annular ceramic reference junction and sealed cross-linked polymer reference resist clogging. Operating range is from 0 to 14 pH. Electrodes measure 110 mm L x 12 mm dia and withstand temperatures up to 212°F (100°C). All models have BNC connectors.
Hach Company Intellical™ PHC101 Field Low Maintenance Gel Filled pH Electrode, 30 m Cable
Intellical™ PHC101 is a digital combination pH electrode with built-in temperature sensor. PHC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged PHC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the pH sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the PHC101 rugged models specially designed for field use. PHC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The PHC101 Rugged is ideal for measuring pH in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
Hach Company 3/4 Inch Combination pH/ORP Sensor, Convertible Style, Ryton Body Material, Flat Glass General Purpose pH Electrode, Temperature Compensation - PT1000 ohm RTD, 15 ft cable
Ryton, Convertible Body Style, 4.5m Analog Cable, General Purpose Flat Glass pH Electrode, Pt 1000 Temperature Compensation
Hach Company Sension+ 5010T laboratory combination pH electrode for general applications
Sension+ 5010T is a low maintenance combination pH electrode with a polycarbonate body, non-refillable gel-electrolyte reference and built-in temperature sensor. The 5010T has a fixed 1 meter cable with BNC connector (pH) and banana (temperature) connectors. It is intended for use with Hach Sension+ Laboratory pH meters. The 5010T has a ceramic pin junction and is ideal for pH measurements in general aqueous applications.
Cole-Parmer All-in-One pH/ATC Probe, Sealed/SJ/Epoxy; Mettler
"All-in-One" electrodes offer versatility and customization. These electrodes combine the pH reference, pH half-cell, and temperature sensor in one 12mm-diameter electrode body. The seven designs allow you to select between low-maintenance, sealed electrodes or clog-resistant refillable electrodes. Tuff-Tip electrodes feature a semi-domed tip which protects the pH bulb and ensures a quick response in harsh and dirty samples. PBR-style electrodes provide predictable, reliable, and quick responsesno matter what the sample temperature. This design virtually eliminates drift, accuracy problems, and premature performance losses due to temperature. All electrodes include 3-ft cable and BNC connector for pH, except where noted. Mettler-Toledo compatible electrodes arrive with the proper 30K temperature compensator and cinch connector for connecting to your meter.
