Clamps
Adjustable devices designed to securely hold two objects together or to hold an object in place; used with standard-taper and ball-and-socket joints, glass and tubing assemblies, and with ring stands. Available as plastic joint clips, stainless steel pinch clamps, and taper clips.
A laboratory clamp is an essential piece of equipment used to support and secure labware and other laboratory apparatus such as flasks, reaction vessels, tubing, thermometers, probes, columns, funnels, and overhead stirrers.
Some laboratory clamps consist of a shaft and boss head, secured with hand-tightened thumbscrews, knurled nuts, or wingnuts onto a supporting rod, stand or scaffold. They may also include two- or three-pronged, adjustable closing jaws designed for gripping objects safely and securely.
Laboratory clamps are constructed of metals such as stainless steel, nickel-plated zinc, plated brass or diecast aluminum alloy for enhanced chemical, heat, and corrosion resistance. However, some components such as the adjusting screws may be made of plastic, and the prongs may also be lined or covered with cork, plastic, glass-fiber, or rubber for enhanced grip with minimal damage or breakage.
Laboratory Clamp Styles and Designs
• Universal, general-purpose clamps that are fully adjustable for accommodating and securing a wide range of items of different sizes such as columns and thermometers
• Retort clamps for securing round-bottom flasks and similar glassware
• Fork clamps for securing and supporting cone-and-socket ground glassware joints
• Three-prong extension clamps, sometimes available with spring-loaded jaws, for holding irregularly shaped or outsized objects
• Specialized clamps for securing burettes and condensers or reaction vessels
• Chain clamps, which incorporate a circular, adjustable chain loop to hold cylinders and beakers
Accuflow Systems W. L. Gore Tube Clamp, Polysulfone, Pinch Closure, Autoclavable
W. L. Gore AME-Clamp is a high-strength polysulfone tube clamp designed for sanitary and bioprocess tubing applications. It provides a secure pinch closure for tubing and hose, installs quickly with a swingaway locking screw, and is reusable and cleanable for repeated sterilization cycles.
- Polysulfone construction for chemical resistance and durability.
- Autoclavable up to 30 cycles, gamma compatible up to 50 kGy.
- FDA-compliant material suitable for bioprocess environments.
- Compatible with unreinforced tubing wall thickness .090-.190 in.
- Compatible with reinforced braided hose wall thickness .090-.180 in.
- Positive swingaway locking screw for quick, tool-free installation.
- Reusable and fully disassemblable for cleaning and maintenance.
- Suitable for silicone, C-Flex, PVC, and similar elastomeric tubing.
Accuflow Systems Steel & O'Brien Tri-Clamp Adapter, 2 in, 3/8 in Barb
Tri-clamp to hose barb adapter designed to connect 2 in tri-clamp process lines to 3/8 in ID rubber hose. The fitting provides a sanitary clamp connection with a grooved barb for secure hose retention and hygienic fluid transfer in food, beverage, brewery, dairy, and laboratory process lines.
- Connects 2 in tri-clamp to 3/8 in hose barb.
- Constructed from stainless steel; commonly offered in 304 or 316L.
- Sanitary design for hygienic fluid transfer.
- Grooved hose barb for secure hose retention.
- Suitable for food, beverage, dairy, brewery, and biotech process lines.
- Available in multiple clamp and barb size combinations.
Chemglass Life Sciences Clamp, PTFE, 19/22
Clamp, PTFE, 19/22. PTFE molded clamps with a steel core can withstand temperatures up to 250C and are totally chemically resistant and inert.

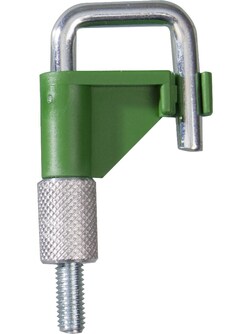

BURKLE INC stop-it hose clamp, Easy-Click, Ø 0.59 in. (15 mm), green
Stepless flow regulation: With the tubing clamp stop-it's knurled screw, a stepless, delicate flow regulation or complete stop of the flow are possible, even for existing hose connections. The tubing is compressed over a wide area against the sturdy steel hook in order to prevent it from being damaged.
BURKLE INC stop-it hose clamp metal, Schlauch-Ø to 0.59 in. (15 mm)
Stepless flow regulation: With the tubing clamp stop-it's knurled screw, a stepless, delicate flow regulation or complete stop of the flow are possible, even for existing hose connections. The tubing is compressed over a wide area against the sturdy steel hook in order to prevent it from being damaged.
BURKLE INC stop-it hose clamp metal, Schlauch-Ø to 0.79 in. (20 mm)
Stepless flow regulation: With the tubing clamp stop-it's knurled screw, a stepless, delicate flow regulation or complete stop of the flow are possible, even for existing hose connections. The tubing is compressed over a wide area against the sturdy steel hook in order to prevent it from being damaged.
Chemglass Life Sciences Clamp, PTFE, 34/45
Clamp, PTFE, 34/45. PTFE molded clamps with a steel core can withstand temperatures up to 250°C and are totally chemically resistant and inert.
Chemglass Life Sciences Chain Clamp, 12" Arm
Chain Clamp, 12" Arm. Similar to the CG-9220-01 except has a 12" long arm. Clamp can accommodate up to 6-1/2¿ (170mm) O.D. respectively. Quick slip-on chain connection has large, easy-to-turn adjusting knob. Grip is vinyl coated.
Hach Company Clamp, Tubing, Large, 12/pk
Molded, white polycarbonate. Autoclavable. Will not distort, rust or corrode. Mini-clamp is a single position on/off clamp for use with thin-walled tubing under 4.7 mm (3/16") O.D. Larger clamp has 15 positions, stepped control to throttle flow from full open to complete closure. Fits tubing from 3.2 mm (1/8") to 11 mm (3/8") O.D.
