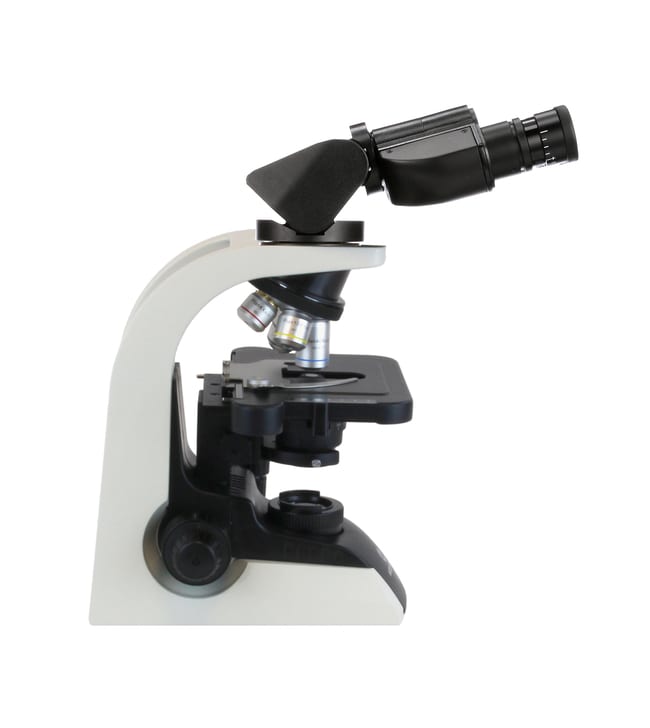

ACCU-SCOPE™ 3012 Microscope Series Ergo Binocular Microscope
SDP

Catalog No. 01189235 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Binocular, Tilting
Catalog No. Head Style
01-189-235 Binocular, Tilting
1 options

Catalog No. 01-189-235

Supplier: ACCU-SCOPE™ 3012LEDBE

Only null left
Add to Cart
Add to Cart

Description

The ACCU-SCOPE™ 3012-LED-BE features an ergo binocular viewing head with E-Plan achromat infinity objectives which are renowned for crisp, high contrast images with outstanding resolution. Modular in design the 3012 boasts options for entry level fluorescence applications and simple polarization

  • Optical System: Infinity Optical System, f = 200 mm
  • Viewing Head: Binocular, Ergo Tilting Binocular or Trinocular Siedentopf type, inclined 30°. Interpupillary distance adjustable from 47 to 75 mm, 360° rotatable. Eyepoint height is adjustable and can be raised 35 mm when the interpupillary distance is 64 mm by rotating the eyepiece tubes up 180° to accommodate the needs of various users.
  • Eyepieces: HWF Plan 10x eyepiece, 22 mm field of view with built-in diopter adjustment, a pointer is standard in one eyepiec, eyepieces are locked-in to prevent classroom tampering.
  • Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
  • Objectives: Infinity plan achromat 4x, 10x, 40xR and 100xR oil
  • Stage: Rackless, scratch resistant rectangular stage
  • Condenser: N.A. 1.25 Abbe Condenser with aperture diaphragm and position guide markings for each objective, filter holder
  • Stand: Cast alloy aluminum with built-in carrying handle and removable laMP house for easy bulb replacement.
  • Illumination: 5-watt LED with variable intensity control, LED bulb is rated for over 20,000 hours of continued use
  • Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear. Fine focus precision of 2 μm minimum. Micrometric increments on fine focus knob.
  • Accessories: Dust cover, immersion oil and instruction manual, universal power supplyCertification: ISO 9001: 2018 and ISO 14001: 2018, UL approved, CE anti-moldWarranty: 5-year limited warranty for parts, labor, and electronic components, 1-year warranty on LED bulb

Specifications

Eyepiece WF 10X/22 mm
Head Style Binocular, Tilting
Lighting Type LED
Magnification Power 40X, 100X, 400X, 1000X
Model 3012
Objective Types AIS E Plan Infinity
Product Type Binocular LED Microscope
Voltage 110/240 V
