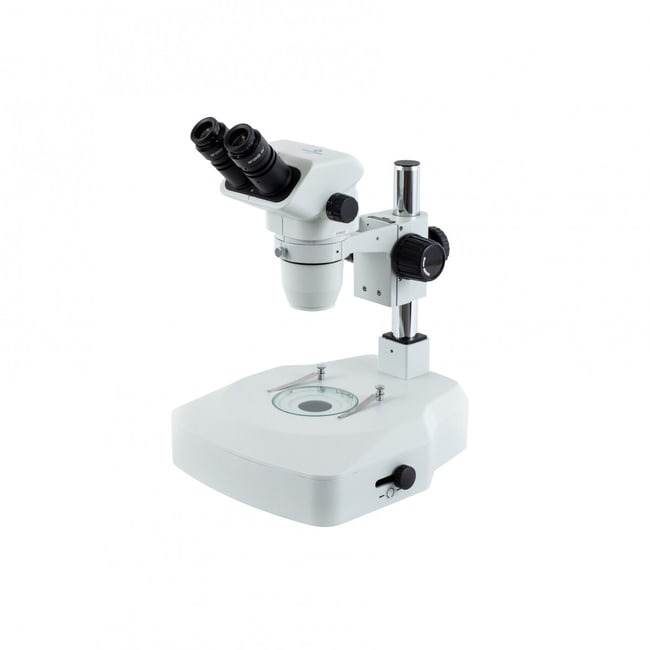

ACCU-SCOPE™ 3075-DIA2 Binocular Zoom Stereo Microscope on Advanced Diascopic Stand
SDP

Catalog No. 01189229 Shop All ACCU-SCOPE Products
Change view
Click to view available options
Head Style:
Binocular, 45° Inclined
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Head Style
01-189-229 Binocular, 45° Inclined
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 01-189-229 Supplier ACCU-SCOPE™ Supplier No. 3075DIA2

Description

The ACCU-SCOPE™ 3075-DIA2 features a binocular stereo microscope with advanced diascopic stand brightfield, oblique contrast, and darkfield observation methods. Incorporating the latest in ergonomic, optical, and mechanical designs, the Series offers a 0.67x to 4.5x zoom range.

  • Optical System: Greenough
  • Viewing Head: Binocular or Trinocular viewing head, inclined 45°.
  • Interpupillary Distance Adjustment: 54 to 76 mm, diopter adjustment ± 5 mm.
  • Eyepieces: WF10x focusable eyepieces, 22 mm field of view. Eyeguards included.
  • Objectives: Zoom magnification objective 0.67x to 4.5x.
  • Anti-fungal treatment protects the optical system in hot, humid environments.
  • Focusing System: Dual focusing knobs with adjustable tension control.
  • Stage: Diffused stage plate in the base provides even illumination.
  • Stand: Cast aluminum alloy. Advanced diascopic stand, 360° rotatable and sliding mirror with polished mirror on one side, silver metallic on the other. Coarse focus stand, 100 mm focusing travel, pod holder, 100 mm glass stage plate, optional arm rest (CAT# 112-30-20). Accepts single fiber bundle (CAT# 112-20-01: not included) with LED light source (CAT# 15918: not included).
  • Accessories: Dust cover and instruction manual.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018
  • Warranty: 5-year limited warranty for parts, labor, and electronic components.

Specifications

Voltage 110/120 V
Magnification Power 6.7X to 45X
Objective Types Zoom Stereo
Head Style Binocular, 45° Inclined
Lighting Type LED
Eyepiece WF 10X/22 mm
