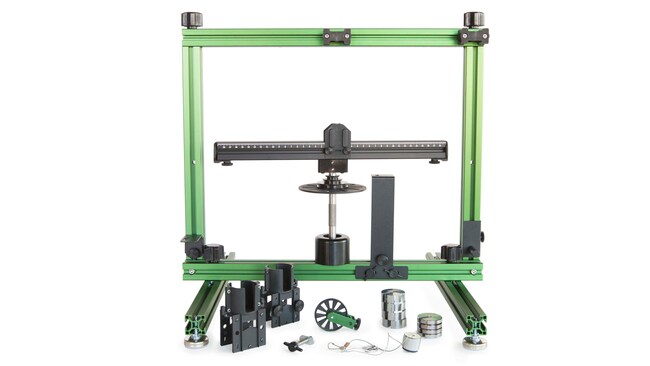

Vernier™ Centripetal Force Apparatus



Description
Includes
Rectangular Frame, Support Legs (2), Rotating Assembly consisting of Rotational Shaft, Encoder Wheel, 3-Step Pulley, Rotating Beam, Bearing Housing, Sliding Carriage to hold the test masses, Counterbalance Carriage to balance the rotating beam, Swivel Assembly (connects Sliding Carriage to a Dual-Range Force Sensor), Ultra Pulley, Ultra Pulley Bracket (preinstalled on Assembly), Photogate Bracket with 1/4 x 20 mounting screw (preinstalled on Assembly), Dual-Range Force Sensor Bracket (preinstalled on Assembly), 50 g masses (4), 100 g masses (4), Hook (attaches a Wireless Dynamic Sensor System to the Sliding Carriage), WDSS Mounting Screw and T Nut to secure a WDSS
- A force sensor measures the centripetal force exerted on a mass as it moves in a circle. A photogate can be used to measure the angular speed. Different masses can be added to the platform and positioned at variable radii. The platform can be driven by a falling mass. The apparatus also accommodates the Wireless Dynamic Sensor System to measure force, which provides the best set of data. Sensors are sold separately.
- Includes:
- Rectangular Frame
- Support Legs (2)
- Rotating Assembly consisting of Rotational Shaft, Encoder Wheel, 3-Step Pulley, Rotating Beam, Bearing Housing
- Sliding Carriage to hold the test masses
- Counterbalance Carriage to balance the rotating beam
- Swivel Assembly (connects Sliding Carriage to a Dual-Range Force Sensor)
- Ultra Pulley
- Ultra Pulley Bracket (preinstalled on Assembly)
- Photogate Bracket with 1/4 x 20 mounting screw (preinstalled on Assembly)
- Dual-Range Force Sensor Bracket (preinstalled on Assembly)
- 50 g masses (4)
- 100 g masses (4)
- Hook (attaches a Wireless Dynamic Sensor System to the Sliding Carriage)
- WDSS Mounting Screw and T Nut to secure a WDSS
Warranty and Services
5-year limited warranty
Specifications
Specifications
Grade | High School and College |
For Use With (Application) | Educational use only |
