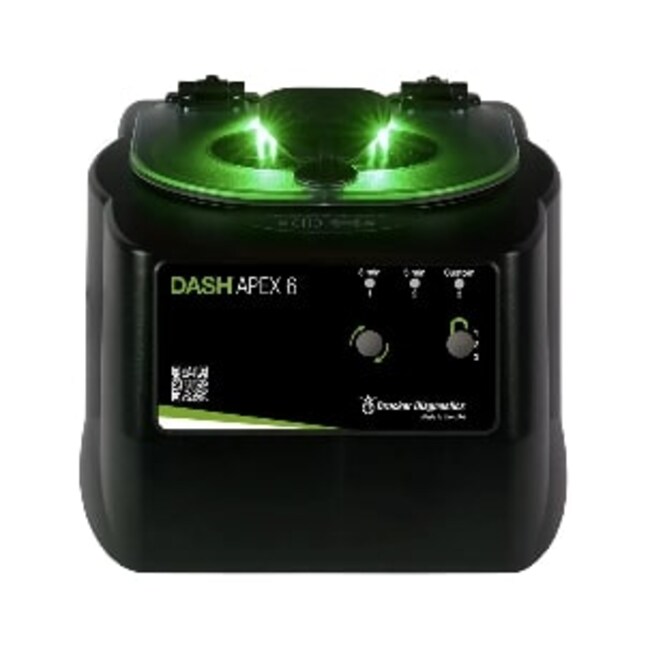

Drucker™ DASH APEX 6 Centrifuge

Description

The DASH APEX 6 Centrifuge helps you cut your lab TAT by 20+ minutes. APEX 6 is preprogrammed to provide high performance STAT processing of gel or non‐gel tubes to meet needs of most demanding lean laboratories.

• In combination with Drucker Dash approach to centrifugation, Apex 6 can dramatically improve turnaround time for chemistry samples and coags.
• Its high g-force capability provides 3-minute sample separation to make your lab even more efficient which keeps your patients happy.
• High RPM (5300 RPM) and high g-force capability (4000xg).
• Easy to use high-G centrifuge (pre-programmed for STAT processing).
• Patented swing-out 2-stage horizontal rotor design produces optimal sample separation.
• 3 easily selectable pre-set cycles conveniently labeled for your lab's most common tubes.
• Use the default cycles or settings can be customized.
• An LED light indicates the current setting.
• Cycle Lock: the control panel can be temporarily lock on one cycle for error-free reproducibility.
• Lid lighting indicates the centrifuge's status (ready, running, done) that can be viewed by the technicians from across the room.
• Clear Shatterproof Lid: Allows for safe sample observation and optical calibrations and access for phototachometer made from high strength polycarbonate.
• Tube holders are made from carbon fiber reinforced composite materials for high strength and durability.
• Automatic Lid Lock: Centrifuge will not run with lid open, and lid cannot be opened while samples are spinning.
• Positive Lid Latching: Firm mechanical latching of the lid prevents the escape of debris.
• Reinforced Guard Bowl: Provides maximum safety and durability.
• Push-button operation.
• Removable rotor core for easy cleaning.
• Cool-Flow air flow design that prevents overheating of samples.
• Brushless DC motor: years of operation with no routine maintenance.
• Auto-start option that will begin centrifuge cycle as soon as lid is latched (no button push required).
• Includes: 6-Place Horizontal Rotor, universal tube holders, and 2 year warranty.

Specifications

• Acceleration Time: 20 sec.
• Controller Type: Push Button
• Description: Horizontal Centrifuge, Accommodates up to a 10 mL size tube
• Capacity: 6 x 75 mm to 100 mm (3 to 10 mL Tubes)
• Max. RCF: 4,000 x g
• Max. Speed: 5,300 rpm
• Product Line: APEX 6
• Refrigerated: No
• Display: Push Button
• Drive System: 1/2 H.P. Brushless DC
• For Use With (Equipment): Clinical
• Includes: Rotor, Tube Holders
• Memory: 3 Cycles
• Model: DASH Apex 6
• Noise Level: 61 dB(A)
• Profile (Acceleration/Braking): Max Accel: 20 sec., Max Decel: 20 sec.
• Program Storage: 3 Programmable Settings
• Quantity: 1 Ea.
• Rotor: 6-place Horizontal
• Rotor Included: Yes
• Run Time: 1 to 30 min. (±1%)
• Safety Features: Automatic Lid Lock, Positive Lid Latching, Clear Shatter Proof Lid, Reinforced Guard Bowl
• Timer: Electronic
• Type: Horizontal Centrifuge, STAT
• Ventilated: Yes
• Warranty: 2 Years
• Dimensions (L x W x H) Exterior: 8 x 13.5 x 11 in. (20 x 34 x 28 cm)
• Length (English) Exterior: 13 in.
• Length (Metric) Exterior: 33 cm
• Width (English) Exterior: 11 in.
• Width (Metric) Exterior: 28 cm
• Height (English) Exterior: 8 in.
• Height (Metric) Exterior: 20 cm
• Height (Metric) Exterior Lid Open: 20 cm
• Depth (English): 13.5 in.
• Depth (Metric): 34 cm
• Net Weight: 12 lb. (5.4 kg)
• Electrical Requirements: 225 W
• Voltage: 100/240 V
• Wattage: 225 W
• Frequency: 50/60 Hz
