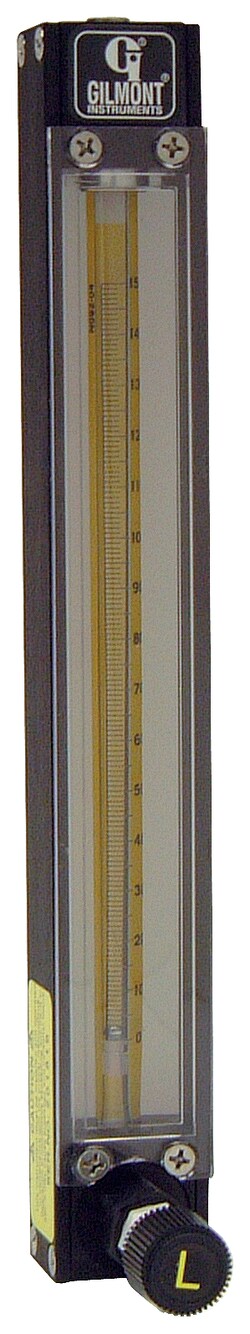

Cole Parmer™ 150 mm Construction Industrial Calibrated Flowmeters With Precision Valve

Measure and control liquids and gases in wide range of applications with precision and repeatability.

$381.50 - $405.50

Specifications

Case Material Black Painted Aluminum with Acrylic Window
Connections 1/8 NPT(F)
Description Calibrated - Gas and Liquid
Repeatability 0.25% of scale reading
Scale 150mm
View More Specs

Products 3
Catalog Number Airflow Rate Price Quantity & Availability
Catalog Number Airflow Rate Price Quantity & Availability
15-178-164
View Documents
70 to 825SmL/min. Each for $381.50
Add to cart

15-178-140
View Documents
288 to 7590SmL/min. Each for $405.50
Add to cart

15-178-142
View Documents
3542 to 59494SmL/min. This item has been discontinued by the manufacturer and is no longer available. Please call customer service for assistance: 1-800-766-7000.
N/A
Description

Description

Measure and control liquids and gases in wide range of applications with precision and repeatability. Thermo Scientific™ Gilmont 150mm Construction Industrial Calibrated Flowmeters with Precision Valve are versatile, and functionally and dimensionally interchangeable with other current designs.

  • Precision glass metering tubes, glass and stainless-steel floats
  • Glass metering tubes have integral float guides to assure a ±5% accuracy of full scale
  • Glass and stainless-steel floats are standard
  • Calibration tables for both air and water are enclosed with each flowmeter
  • Front shields have 1.5X magnification for more accurate readings
  • Industry standard dimensions for easy retrofitting and direct replacements
  • Standard panel mounting hardware is supplied with each meter, and tripod bases are available for benchtop applications

Construction Materials

  • Wetted end blocks, fittings and internal parts: anodized aluminum, brass, 316 Stainless Steel
  • Seal materials: Buna-N or Viton™
  • Side plates: aluminum
  • Metering tube: borosilicate glass enclosed in the unitized aluminum frame
  • Piping connections: aluminum, brass or 316 Stainless Steel, 1/8 NPT(F) horizontal on inlet and outlet
  • Float material: black glass, 316 Stainless Steel or tungsten carbide
  • Scale: ceramic fused on glass tube, 150mm L

Recommended for:

  • Research and development laboratories
  • Field calibration of instrumentation
  • Gas chromatography
  • Atomic absorption Cylinder gas metering
  • Air and water pollution analysis
  • Chemical processing
  • Paper manufacturing
  • Purge systems
  • Controlled environments
  • Universities
  • Petrochemical
Specifications

Specifications

Black Painted Aluminum with Acrylic Window
Calibrated - Gas and Liquid
150mm
250°F max. operating
250psig max. operating
1/8 NPT(F)
0.25% of scale reading
Buna-N or Viton™
±5% full scale
