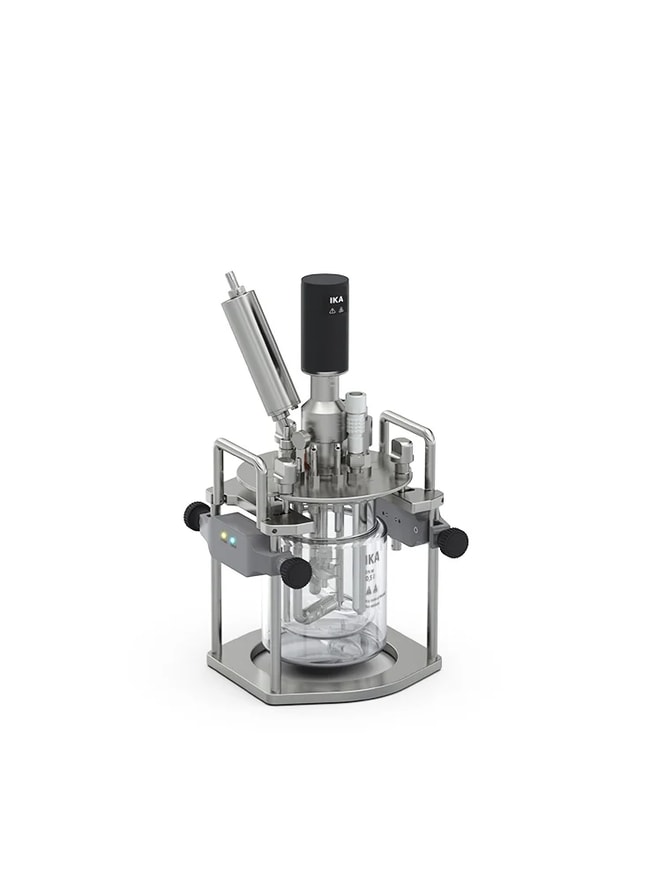

IKA™ Habitat Cell Bioreactor 0.5 L Double-Walled Glass Vessel Package

The 0.5 L vessel package for the HABITAT bioreactor contains a double-walled glass vessel, motor, connectors, and the following sensors: temperature, pH, DO, level and foam. For temperature control via the double wall, an IKA circulator is recommended.

Supplier:  IKA™ 0010007645

Catalog No. 11-116-962

Description

• Cell vessel packages are equipped with a micro sparger and 3-pitched bladed impeller
• Low gas flow rate of 8 to 2,000 cc/min for cell culture
• Additional sensors are available upon request
• Borosilicate glass reactor material
• Stainless steel 1.4404 lid material
• 10 available lid ports

Scope of Delivery:

• Stand 0.5 L
• HA.gv.dw.0.5 Glass vessel, double-wall, for 0.5 L
• HA.mt.s.2 Motor, small, for 0.5, 1 and 2 L
• HA.hp.s.0.5 Harvest pipe, straight, for 0.5 L
• HA.fd Feeding port (2 pcs.)
• HA.sp.m.0.5 Micro sparger, for 0.5 L
• HA.cn Condenser
• HA.ip.pi.0.5 3-pitched bladed impeller, for 0.5 L
• HA.s.tm.1 Temperature sensor, for 1 L
• HA.s.ph.0.5 Hamilton pH sensor, for 0.5 L
• HA.s.do.0.5 Hamilton DO analogue sensor, for 0.5 L
• HA.s.fo Foam sensor
• HA.s.lv.1 Fill level sensor, for 0.5 to 1 L
• HA.cab.dw Cable and tube set, for double-wall vessels
• HA.sf.250 Sample flask, 250 mL (4 pcs.)

Specifications

• Capacity (Metric): 0.5 L
