Bioreactor Vessel Hardware
Bioreactor Vessel Hardware
Chemglass Life Sciences Male Luer Lock, Needleless Injection Site, Swabable, Polycarbonate, Silicone
Male Luer Lock, Needleless Injection Site, Swabable, Polycarbonate, Silicone

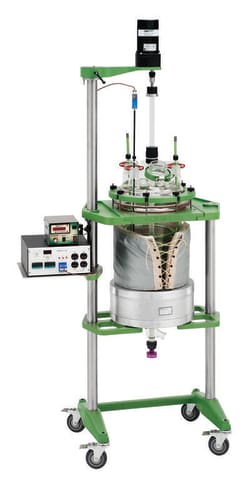

Chemglass Life Sciences 30L Process Reactor, Complete, Air Motor, 79.0" OAH with Motor, 20.9" Clearance Below Valve
30L Process Reactor, Complete, Air Motor, 79.0" OAH with Motor, 20.9" Clearance Below Valve.Features:• Motor Mount Arm Can Unlock And Swing Out Giving Greater Access To Reactor• Smaller Footprint Support Frame With Oversized Rugged S.S. Uprights And Heavy Duty PTFE Coated Aluminum Fittings• Electric And XP Motor Has Separate Controller With Digital Display• Reactor Support Plate Holds Reactor Securely And Allows Easy Installation/Removal Of Reactor By One Person• Lower Safety Ring And Lower Mantle Base• Heavy Duty Lockable Casters • Electric Or Air Motor Optional XP Motor Available• Open Frame Design Provides Excellent Accessibility• 7-Neck Lid With Large Powder Addition Port• Ridge Clamp Accepts 1/2” Rod And Adds Additional Support For Large Glassware• #304 S.S. Cooling Coil PTFE Coated • Digital Temperature Controller• Zero Dead Space Detachable Drain Valve Has Knob With Laser Etched Directional Arrows For Open And Close
Bellco Glass, Inc. Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 145mm od x 267mm oah. A full range of accessories are available for this vessel. Total volume: 3.6l. Wo
Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 145mm od x 267mm oah. A full range of accessories are available for this vessel. Total volume: 3.6l. Wo
Ace Glass, Inc. 500mL, one-piece pressure reactor with #25 center, (3)#15, (1)#7 side necks, complete with addition funnel, condenser, pressure manifold, stirring and temperature control assemblies
500mL one-piece pressure reactor system designed to perform low to moderate positive pressure reactions, synthesis and catalysis. Flask features #25 Ace-Thred center neck, 3 #15 Ace-Thred side necks, and 1 #7 Ace-Thred side neck. System is complete with addition funnel, condenser, pressure manifold, stirring and temperature control assemblies. Rated 45 PSI at 100C.
Ace Glass, Inc. 1000mL, one-piece pressure reactor with #25 center, (3) #15, (1) #7 side necks, complete with addition funnel, condenser, pressure manifold, stirring and temperature control assemblies
1000mL one-piece pressure reactor system designed to perform low to moderate positive pressure reactions, synthesis and catalysis. Flask features #25 Ace-Thred center neck, 3 #15 Ace-Thred side necks, and 1 #7 Ace-Thred side neck. System is complete with addition funnel, condenser, pressure manifold, stirring and temperature control assemblies. Rated 45 PSI at 100C.
Ace Glass, Inc. Photochem reactor body, 1000mL, complete with spinbar, sparger, bushing and PTFE tubing
Complete photochemical reactor featuring spinbar, sparger, bushing and PTFE tubing. 1000mL reaction vessel is made of borosilicate glass to accomm ODate ACE 7854, 7856, or 7857 immersion wells. Vessel has one 14/20 angled joint for sparger tube, one 24/40 vertical joint for condenser, and one #7 Ace-Thred side arm for a thermometer. Center joint is 60/40, and the bottom of the reactor is flat to allow use of a stir magnet.
Ace Glass, Inc. 500mL, one-piece pressure reactor with #25 center, (3)#15, (1)#7 side necks, 0-8mm valve and 28/15 ball joint bottom outlet, complete with addition funnel, condenser, pressure manifold, stirring and temperature control assemblies
500mL one-piece pressure reactor featuring a #25 Ace-Thred center neck, three #15 and one #7 side necks. Vessel also features a 0-8mm, 28/15 ball joint bottom outlet. Reactor is complete with an addition funnel, condenser, heating mantle, pressure manifold, stir shaft and temperature controller. Unit will perform positive pressure reactions up to 45psi at 100 C.
Ace Glass, Inc. Photochem reactor body, 250mL, complete with spinbar, sparger, bushing and PTFE tubing
Complete photochemical reactor featuring spinbar, sparger, bushing and PTFE tubing. 250mL reaction vessel is made of borosilicate glass to accomm ODate ACE 7854, 7856, or 7857 immersion wells. Vessel has one 14/20 angled joint for sparger tube, one 24/40 vertical joint for condenser, and one #7 Ace-Thred side arm for a thermometer. Center joint is 60/40, and the bottom of the reactor is flat to allow use of a stir magnet.
Bellco Glass, Inc. Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 145mm od x 267mm oah. A full range of accessories are available for this vessel. Total volume: 3.6l. Wo
Round bottom bioreactor vessel is manufactured of type 1 class a Borosilicate glass. Graduations are 500ml to 2500ml every 500ml. Vessel dimensions are 145mm od x 267mm oah. A full range of accessories are available for this vessel. Total volume: 3.6l. Wo
Ace Glass, Inc. 1000mL, one-piece jacketed pressure reactor with #25 center, (3)#15, (1)#7 side necks, 0-8mm valve and 28/15 ball joint bottom outlet, #11 Ace-Thred inlet/outlet, complete with addition funnel, condenser, manifold & stirring assemblies
Complete, one-piece 1000mL jacketed pressure reactor is designed to perform low to moderate positive pressure reactions, synthesis, and catalysis. Flask has a #25 center neck, (3) #15 side necks, and (1) #7 side neck. Flask bottom outlet is 0-8mm 28/15 ball joint. Jacket inlet/outlet has a #11 Ace-Thred for use with 3/8 I.D. tubing. Rated 45 PSI at 100 degrees C. Reactor system includes addition funnel, condenser, manifold, and stirring assemblies.
Chemglass Life Sciences 50L Process Reactor, Complete, Electric Motor, 90.8" OAH with Motor, 18.1" Clearance Below Valve
50L Process Reactor, Complete, Electric Motor, 90.8" OAH with Motor, 18.1" Clearance Below Valve.Features:• Motor Mount Arm Can Unlock And Swing Out Giving Greater Access To Reactor• Smaller Footprint Support Frame With Oversized Rugged S.S. Uprights And Heavy Duty PTFE Coated Aluminum Fittings• Electric And XP Motor Has Separate Controller With Digital Display• Reactor Support Plate Holds Reactor Securely And Allows Easy Installation/Removal Of Reactor By One Person• Lower Safety Ring And Lower Mantle Base• Heavy Duty Lockable Casters• Electric Or Air Motor Optional XP Motor Available• Open Frame Design Provides Excellent Accessibility• 7-Neck Lid With Large Powder Addition Port• Ridge Clamp Accepts 1/2” Rod And Adds Additional Support For Large Glassware• #304 S.S. Cooling Coil PTFE Coated • Digital Temperature Controller• Zero Dead Space Detachable Drain Valve Has Knob With Laser Etched Directional Arrows For Open And Close
