IKA™ Habitat Cell Bioreactor 10 L Double-Walled Glass Vessel Package
SDP

Catalog No. 11116954 Shop All IKA Works Products
Change view
Click to view available options
Capacity (Metric):
10 L
1 product options available for selection
Product selection table with 1 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Capacity (Metric)
11-116-954 10 L
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 1 options available.
1 options
Catalog No. 11-116-954 Supplier IKA™ Supplier No. 0010007652

Please contact your sales representative for a quote or further ordering instructions.

Description

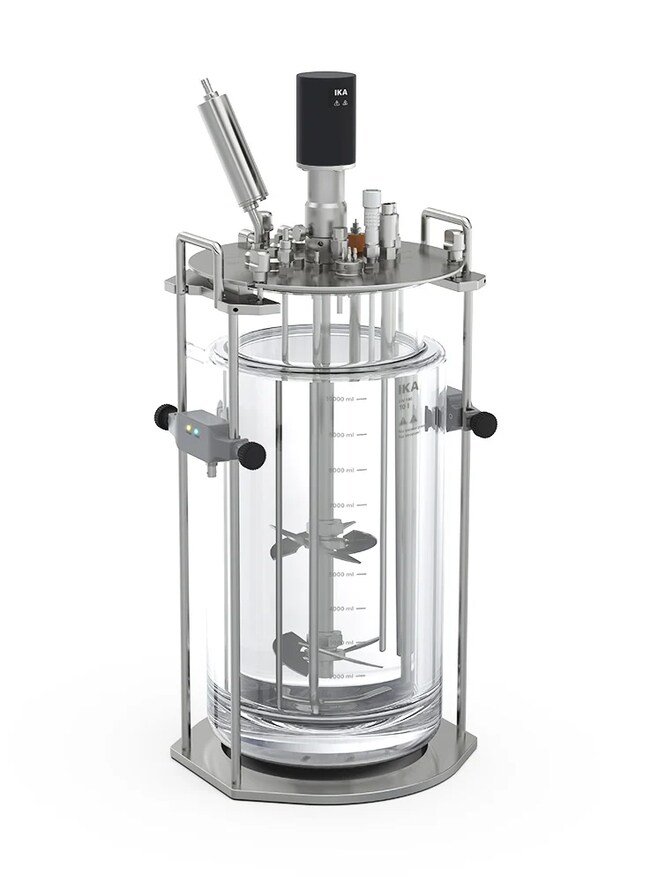

The 10 L vessel package for the HABITAT bioreactor contains a double-walled glass vessel, motor, connectors, and the following sensors: temperature, pH, DO, level and foam. For temperature control via the double wall, an IKA circulator is recommended.

  • Cell vessel packages are equipped with a micro sparger and 3-pitched bladed impeller
  • Low gas flow rate of 8 to 2,000 cc/min for cell culture
  • Additional sensors are available upon request
  • Borosilicate glass reactor material
  • Stainless steel 1.4404 lid material
  • 15 available lid ports

Scope of Delivery:

  • Stand 10 L
  • HA.gv.dw.10 Glass vessel, double-wall, for 10 L
  • HA.mt.s.10 Motor, big, for 5 L and 10 L
  • HA.hp.s.10 Harvest pipe, straight, for 10 L
  • HA.ino Port for inoculation
  • HA.sp.m.10 Micro sparger, for 10 L
  • HA.cn.flx Flexible condenser
  • HA.ip.pi.10 3-pitched bladed impeller, for 10 L (2 pcs.)
  • HA.s.tm.10 Temperature sensor, for 10 L
  • HA.s.ph.10 Hamilton pH sensor, for 10 L
  • HA.s.do.10 Hamilton DO analogue sensor, for 10 L
  • HA.s.fo Foam sensor
  • HA.s.lv.10 Fill level sensor, for 10 L
  • HA.cab.dw Cable and tube set, for double-wall vessels
  • HA.sf.250 Sample flask, 250 mL (4 pcs.)

Specifications

Capacity (Metric) 10 L
