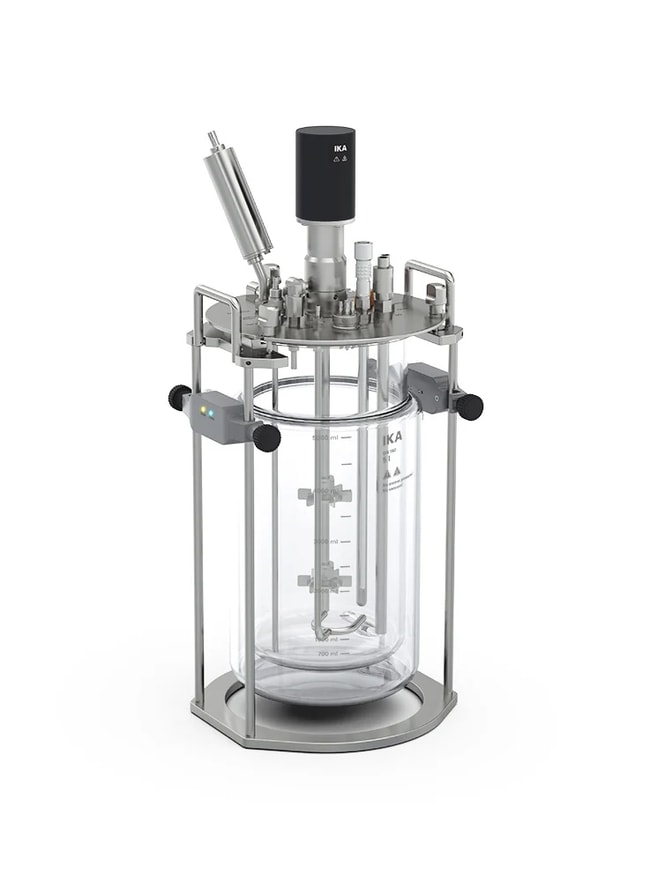

IKA™ Habitat Ferment Bioreactor 5 L Double-Walled Glass Vessel Package

Description

The 5 L vessel package for the HABITAT bioreactor contains a double-walled glass vessel, motor, connectors, and the following sensors: temperature, pH, DO, level and foam. For temperature control via the double wall, an IKA circulator is recommended.

• Fermentation vessel packages are equipped with a baffle, ring sparger and 6-bladed impeller
• High gas flow rate of 100 – 20,000 cc/min for fermentation
• Additional sensors are available upon request
• Borosilicate glass reactor material
• Stainless steel 1.4404 lid material
• 15 available lid ports

Scope of Delivery:

• Stand 5 L
• HA.gv.dw.5 Glass vessel, double-wall, for 5 L
• HA.mt.s.10 Motor, big, for 5 L and 10 L
• HA.hp.s.5 Harvest pipe, straight, for 5 L
• HA.ino Port for inoculation
• HA.ba.5 Baffle, for 5 L
• HA.sp.r.5 Ring sparger, for 5 L
• HA.cn.flx flexible condenser
• HA.ip.b.5 Rushton 6-bladed impeller, for 5 L (2 pcs.)
• HA.s.tm.5 Temperature sensor, for 5 L
• HA.s.ph.5 Hamilton pH sensor, for 5 L
• HA.s.do.5 Hamilton DO analogue sensor, for 5 L
• HA.s.fo Foam sensor
• HA.s.lv.5 Fill level sensor, for 5 L
• HA.cab.dw Cable and tube set, for double-wall vessels
• HA.sf.250 Sample flask, 250 mL (4 pcs.)

Specifications

• Type: Bioreactor Package
• Capacity (Metric): 5 L
