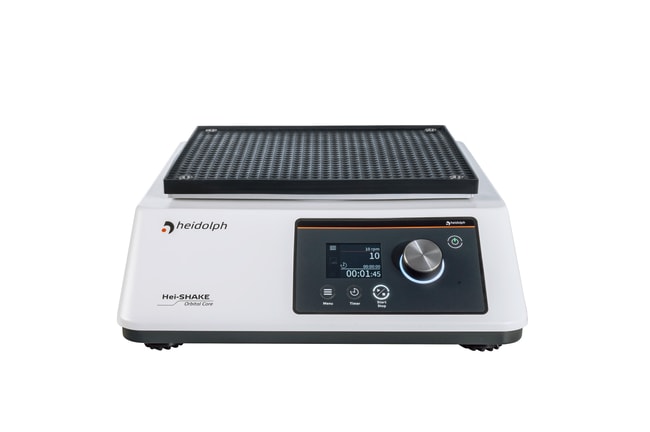

Heidolph™ Hei-SHAKE Orbital Core

Hei-SHAKE Orbital Core orbital platform shakers provide gentle, even shaking and ensure uniform nutrient distribution in flasks, tubes, and cell culture plates. Used for bacterial suspensions, cell cultures, staining and washing procedures, and solubility studies.

Catalog Number	Mfr. No.	Includes
01-672-719	Heidolph™ 036130600	Flat Rubber Mat 1000
01-672-720	Heidolph™ 036130610	Flat Rubber Mat 2000

Description

• 15 kg load capacity
• Speed range from 1 to 530 rpm
• 20 mm shaking diameter (orbit) to guarantee a homogenous distribution of media
• Applications can be carried out in continuous operation or using a timer
• Timer (1 min to 999 h 59 min)
• Integrated RS232 interface
• Device control and semi-automated processes can be carried out remotely by connecting to a PC or via server-based software, e.g. Hei-PROCESS
• Up to 50% lower energy consumption when compared to similiar shakers
• 3 year warranty and an operational lifespan of more than 10 years
• Optional accessories (sold separately) include:
  • Erlenmeyer flask platform attachment
  • Erlenmeyer flask clamps

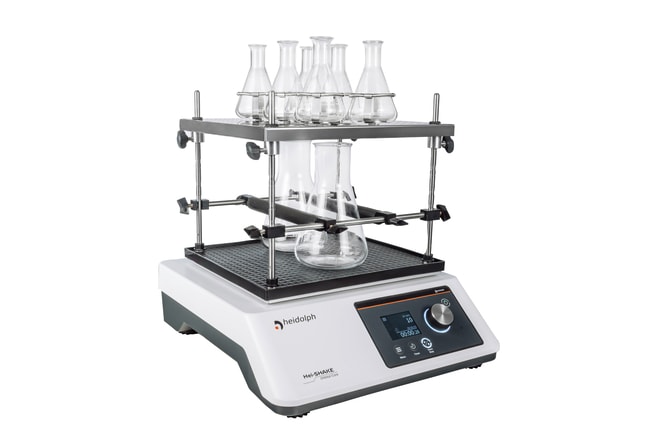

  • Multi-Tier attachment
  • Tension rollers
  • Centrifuge tube attachment
  • Micro reaction vessel attachment
  • Test tube attachment
  • Large platform upgrades

Specifications

• Orbit: 20 mm
• Speed Range: 1 to 530 rpm
• Product Type: Orbital Shaker
• Refrigerated: No

• Load Bearing Capacity (Metric): 15 kg
• Voltage: 115 V
• Model: Digital Orbital Shaker
