BriskHeat™ HTC Heating Cord with X2 PID Control and K-Type Sensor
SDP

Catalog No. 10068279
Change view
Click to view available options
Wattage:
125/135 W
17 W
170 W
260 W
43 W
64 W
82 W
Amperage:
0.14 A
0.18 A
0.36 A
0.533 A
0.68 A
1.04 A
1.42 A
2.17 A
Length (Metric) Cord:
0.15 m
0.6 m
0.9 m
1.2 m
1.8 m
2.4 m
3.7 m
8 product options available for selection
Product selection table with 8 available options. Use arrow keys to navigate and Enter or Space to select.
Catalog No. Wattage Amperage Length (Metric) Cord
10-068-279 17 W 0.14 A 0.15 m
10-068-280 64 W 0.18 A 0.9 m
10-068-281 43 W 0.36 A 0.6 m
10-068-282 64 W 0.533 A 0.9 m
10-068-283 82 W 0.68 A 1.2 m
10-068-284 125/135 W 1.04 A 1.8 m
10-068-285 170 W 1.42 A 2.4 m
10-068-286 260 W 2.17 A 3.7 m
Use arrow keys to navigate between rows. Press Enter or Space to select a product option. 8 options available.
8 options
Catalog No. 10-068-279 Supplier BriskHeat™ Supplier No. X2KHTC451007

Description

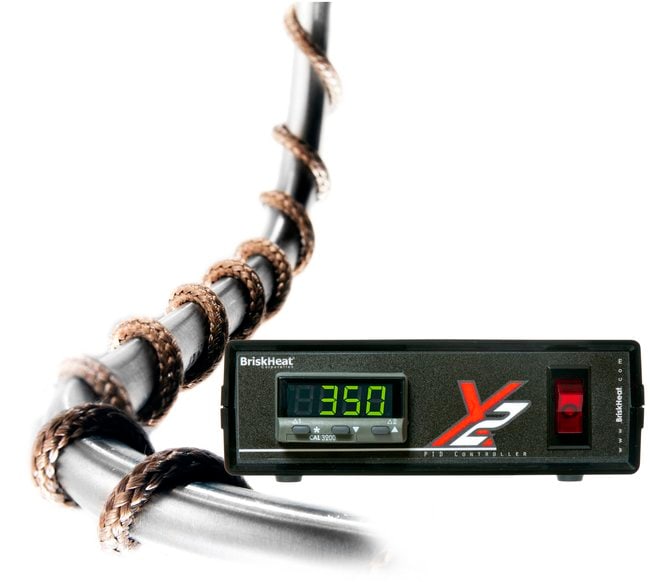

For use on small tubes, vessels and places with limited space. BriskHeat™ High Temperature Heating Cords provide extreme flexibility to wrap around items as small as 3mm in diameter. Bundle includes an easy-to-use X2 PID Temperature Control featuring a 3 button user interface with digital display.

  • Value priced Heating Cords with compatible PID Temperature Controller Bundle
  • HTC Heating Cord Features:
  • Maximum exposure temperature of up to 900°F (482°C)
  • Designed for use on small tubes, vessels, or any application where space is limited
  • Extremely flexible to wrap around objects as small as 1/8 in. (3mm) diameter
  • Multi-strand resistance wire heating element provides exceptional flexibility and durability
  • Rapid thermal response for quick heat up time. Provides accurate heat when you need it
  • Available in a wide variety of lengths
  • Ideal for laboratory, R&D, gas tubing, production maintenance, applications requiring temporary heat, and more
  • Fiberglass outer sheath provides electrical insulation for safe use on electrically conductive surfaces
  • Choice of power leads on same end or opposite ends to suit your electrical needs
  • Includes 9 in. (230mm) long high temperature tie downs for safe and easy installation
  • Built-in split-plug design for easy connection to temperature controller
  • Temperature controller is required for safe operation of this product
  • X2 Benchtop PID Temperature Controller:
  • Compact, plug-and-play design
  • Advanced PID control
  • Simple three-key user control
  • Type K thermocouple sensor input

Warranty and Services

12 months

Specifications

Length (English) Lead: 2 ft.
Length (Metric) Lead: 0.6 m
Length (Metric) Cord 0.15 m
Wattage 17 W
Sensor Types K-Type
Amperage 0.14 A
Frequency 50/60 Hz
Display Type Digital LED
Type Heating Cord
For Use With (Application) Small diameter applications with electrical conductive surfaces
Voltage 120 V
Show More Show Less
