Tocris Bioscience™ Janelia Fluor 646, Azide

Catalog No.	Quantity
70-882	2 mg

Catalog No. 70-882 Supplier Tocris Bioscience™ Supplier No. 7088/2

Description

Red dye (Reactive group: azide). Applications: super resolution microscopy e.g. dSTORM & STED, confocal, and live cell imaging

Janelia Fluor® 646, Azide is a red fluorogenic fluorescent dye, supplied as an azide for click chemistry. Suitable for confocal fluorescent imaging and super resolution microscopy (SRM) techniques such as dSTORM (live and fixed cells) and STED imaging. Can be multiplexed for two color imaging with Janelia Fluor™ 549 SE (Cat. No. 6147). Cell permeable. Excitation maximum = 646 nm; emission maximum = 664 nm. Quantum yield = 0.54; Max. extinction coefficient = 152,000 M-1cm-1 (measured in ethanol plus 0.1% TFA); A280 correction factor is 0.19.

To measure the absorbance spectrum of this dye we recommend the following solvent: ethanol or trifluoroethanol plus 0.1% TFA.

We also offer Janelia Fluor™ conjugated antibodies and custom conjugation services with our sister company Novus Biologicals.

Specifications

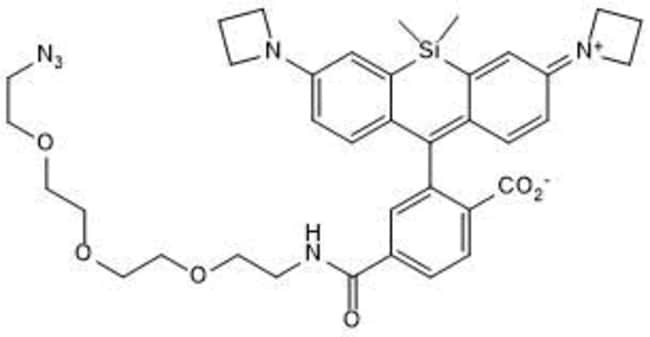

• Chemical Name or Material: 2-(3-(Azetidin-1-ium-1-ylidene)-7-(azetidin-1-yl)-5,5-dimethyl-3,5-dihydrodibenzo[b,e]silin-10-yl)-4-((2-(2-(2-(2-azidoethoxy)ethoxy)ethoxy)ethyl)carbamoyl)benzoate
• Quantity: 2 mg
• Target: Click-Reactive Janelia Fluor™ Dyes
• Molecular Formula: C₃₇H₄₄N₆O₆Si
• Formula Weight: 3535
• Purity: 95%
