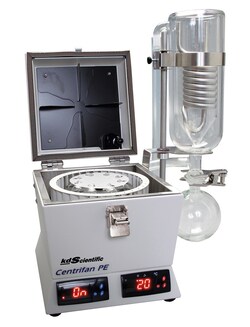

KD Scientific Centrifan™ Small Volume Evaporators

Experience reliable results, lower costs, greater safety, and increased productivity

Catalog Number	Mfr. No.	Model	Includes
14-831-225	KD Scientific 780070FS	Centrifan PE	Cold trap
14-831-600	KD Scientific 780070	Centrifan PE-T	Cold trap and timer

Description

Simplifies small volume evaporation tasks for synthetic and medicinal chemists, as well as pharmaceutical, biotech, and university researchers. Proprietary self–generated blowdown technology eliminates the potential problems with common evaporation systems



• Eliminates the problem of bumping using patented SBT (Self blowdown technology)
• Vacuum-free: no bumping or splashing to risk sample purity and yield
• Heated air flows over the surface area of the solvent, enhancing evaporation
• Temp controller range: Ambient to 55°C
• Cold finger Capacity: 1 L non–freezing liquid or dry ice nuggets
• Power Requirements: 115V 60Hz
• Fuse Ratings: 3A fast acting, 5mm × 20mm
• Dimensions W × D × H: 12 × 8 ×18 in.





• Instrument type: evaporator
• Centrifugal Evaporation: sample securely pressed in spinning containers
• Programmable timer from minutes to hours
• Concentrate samples or evaporate to complete dryness, or collect distillate
• Compact, portable, minimal bench space
• Use 20/30/40mL scintillation vials, 1.6mL Eppendorf tubes, 4mL/1 dram vials, 16×100mm test tubes (Rotors not included)



Specifications

• For Use With (Application): Synthetic and Medicinal Chemistry, as Well as Pharmaceutical, Biotech and University Research
• Type: Small Volume Evaporator
