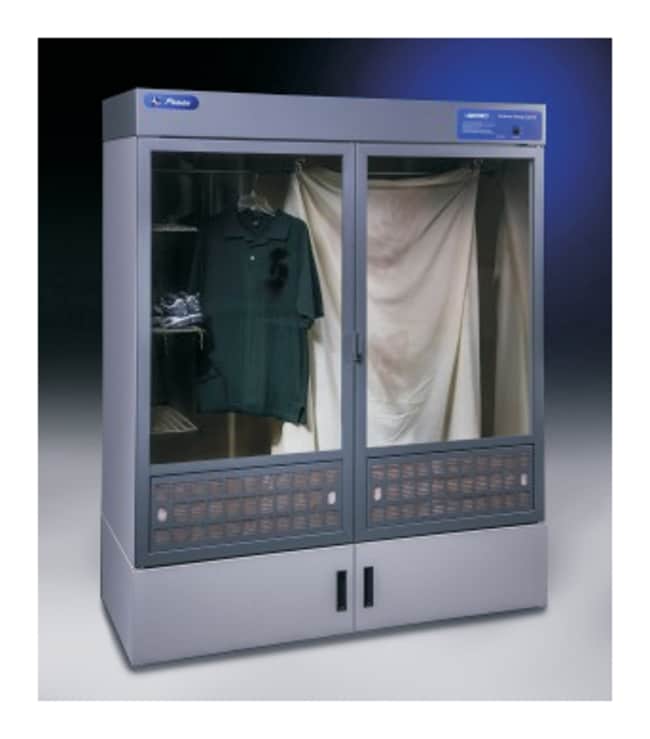

Labconco™ Protector™ Evidence Drying Cabinet: 4 ft.W

Catalog No.	Includes	Plug Type
09-682-747	Washdown system with pump	China plug
09-682-739	UV light	North America
09-682-742	UV light	China plug
09-682-740	UV light	UK
09-682-738	UV light	US
09-682-741	UV light	Schuko
09-682-743	Washdown system with pump	US
09-682-744	Washdown system with pump	North America
09-682-746	Washdown system with pump	Schuko
09-682-745	Washdown system with pump	UK

Catalog No. 09-682-747 Supplier Labconco™ Supplier No. 3404014

Description

Protector Evidence Drying Cabinets provide a secure ventilated area to dry evidence such as clothing and bedding.

A built-in blower provides airflow through the cabinet interior to speed drying. Air passes through the door inlet prefilter, circulates up through the interior, passes through the exhaust prefilter, HEPA and carbon filters and is exhausted back to the room through the top of the cabinet.

• Durable, stainless steel-lined construction
• HEPA and carbon-filtered exhaust protects personnel from exposure to biohazards while eliminating nuisance odors
• Ultraviolet light provides secondary disinfection of interior between cases to prevent cross contamination, ensuring integrity of samples for DNA testing
• Lockable cabinet maintains the chain of custody
• UV security lock limits access to the ultraviolet light switch
• Safety glass door with magnetic seal maximizes visibility into the cabinet while withstanding exposure to ultraviolet light
• Inlet roughing prefilter traps dust and other large particles in the air entering the cabinet
• Storage area below cabinet houses drain bucket and holds miscellaneous cleaning supplies
• Leak-tight brushed stainless-steel interior cleans easily
• Three-position switch activates fan or ultraviolet light (only when UV security lock key is in ON position)
• Spacious interior measures 26.5D x 32.25W x 56 in.H (81.9 x 67.3 x 142.2cm)
• Stainless-steel hanging rod accommodates clothing, bedding and other tall or bulky items; three wire mesh shelves
• Exhaust roughing prefilter traps particulates in the exhaust air to prolong the life of the HEPA filter
• HEPA filter, 99.99% efficient on particles 0.3 micron, traps airborne particulates including biohazardous aerosols, as air is exhausted from cabinet interior
• Large 14-quart plastic bucket, located in the storage area below the cabinet, collects liquids from the drain in the cabinet's floor to aid clean up

Specifications

• Product Type: Evidence Drying Cabinet
• No. of Doors: 2
• Color: Light Gray
• No. of Drawers: None
• No. of Shelves: 3
• Voltage: 220 V
• Height (English): 79 in.
• Hertz: 50/60Hz
• Height (Metric) Interior: 30.48 cm
• Depth (English): 28 in.
• Amperage: 3 A
• Depth (English) Shelf: 19 in.
• With Casters: Yes
• Cabinet Type: Evidence drying lockable cabinet
• Width (Metric) Storage Area: 91.44 cm
• Options Available: Washdown system with pump
• Height (Metric): 200.7 cm
• Includes: Washdown system with pump
• Plug Type: China plug
• Height (Metric) Storage Area: 30.48 cm
• Door Type: Safety glass door with magnetic seal
• Width (Metric): 121.9 cm
• Filter Type: HEPA and Carbon filter
• Weight (Metric): 265 kg
• Width (Metric) Shelf: 20.3 cm
• Width (English) Shelf: 8 in.
• Width (English) Storage Area: 36 in.
• Width (Metric) Cabinet: 121.9cm
• Depth (Metric) Shelf: 48.26 cm
• Depth (Metric): 71.1 cm
• Height (English) Storage Area: 12 in.
• Depth (English) Interior: 26.5 in.
• Depth (Metric) Interior: 67.31 cm
• Weight (English): 585 lb.
• Width (English) Cabinet: 48 in.
• Width (English): 48 in.
• Material: Stainless Steel
