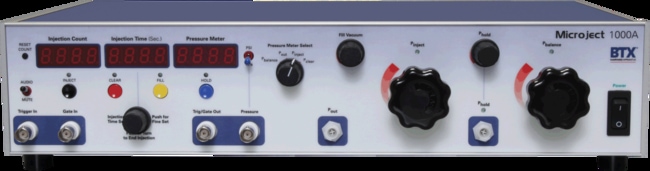

BTX™ MicroJect 1000A Microinjection System

MicroJect 1000A Microinjection System offers a mechanical method to deliver genes, proteins, macromolecules and micro-beads by direct injection into cells, tissues and oocytes simply and efficiently.

Includes: Pico-Injector, Power cord, Footswitch, Input/Output Hoses, Holding Hose, Pipette Holder, Input Adaptor for Hoses

Catalog Number	Mfr. No.	Includes
BTX450752	BTX™ 450752	Pico-Injector, Power Cord, 2 Footswitches, Input/Output Hoses, Holding Hose, 2 Pipette Holders, Input Adaptor for Hoses
BTX450750	BTX™ 450750	Pico-Injector, Power Cord
BTX450751	BTX™ 450751	Pico-Injector, Power Cord, Footswitch, Input/Output Hoses, Holding Hose, Pipette Holder, Input Adaptor for Hoses

Description

The microinjection system provides consistent and precise delivery of volumes through digitally-controlled, stable pressure regulation maintained for a set duration of time. The compressed gas, internally-controlled pressure system also allows precise delivery from femtoliter to microliter volumes.

Features:

• Two negative and three positive pneumatic capabilities
• Precise, timed Inject pressure
• Fill feature for loading pipettes from their tips
• Hold feature to immobilize and manipulate a cell or oocyte
• Clear feature positive pressure precisely discharges fluid
• Balance feature maintans positive pressure to prevent sample dilution
• TTL pulse (BNC) triggering capabilities
• Digital displays of pressure, injection count

Certifications

CE Marking, ETL Marking (UL, CSA), EU RoHS, WEEE

Warranty and Services

2 Year

Specifications

• For Use With (Application): Microinjection of Cells, Oocytes, and Tissues; Nuclear Transfer, Transgenic Animal Development
• Frequency: 50/60 Hz
• Certifications/Compliance: CE Marking, ETL Marking (UL, CSA), EU RoHS, WEEE
• Depth (Metric): 25.5 cm
• Height (Metric): 11 cm
• Operating Temperature (English): 40°F to 104°F
• Relative Humidity: 20% to 80%, non condensing
• Wattage: 220 W
• Weight (Metric): 6.8 kg
• Width (Metric): 38 cm

• For Use With (Equipment): Compressed Gas, Glass Mcropipettes
• Display: Digital
• Depth (English): 10 in.
• Height (English): 5 in.
• Life Span: 2 year warranty
• Operating Temperature (Metric): 4°C to 40°C
• Tip Type: Holder for glass micropipette needle
• Weight (English): 15 lb.
• Width (English): 15 in.
• Electrical Requirements: 100/110/220/240 VAC

Intended for Research use only. Not for use in diagnostic or clinical procedures.
