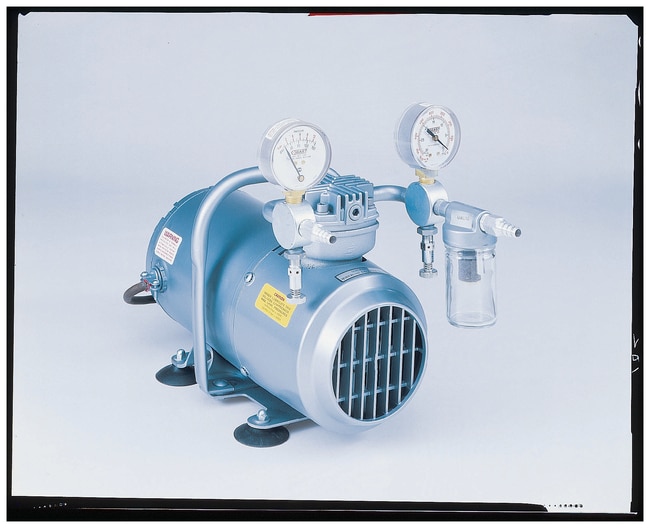

Pressure/Vacuum Pump

Catalog No. S413801

Supplier: Gast Manufacturing Corporation 1HAB25BM100X/EMD

Description

Includes

• Moisture trap
• Intake filter
• Handle
• Rubber suction-cup feet

Features pressure and vacuum gauges.

For air sampling, pressure/vacuum filtration, degassing solutions. Separate vacuum and pressure gauges, graduated from 0–30 in.Hg and 0–100psig, respectively. Durable air seal between piston and cylinder. I

Specifications:

• Free Air Displacement: 37L/min.
• Pump Speed: 1725rpm
• Pressure: 100psig (689kPag)
• Vacuum: 25 in.hg
• Motor: 0.17hp 110V 60Hz
• Hose Connection takes 0.25 in. I.D. tubing
• Dimensions: 10.75H × 15.25L × 8 in.W (27.3 × 38.7 × 20.3cm)
• Weight: 17 lb. (7.7kg)

Specifications

• Horsepower: 0.17 hp
• Includes: Moisture trap, intake filter, handle, Rubber suction cup feet
• Motor Speed: 1725 rpm
• Electrical Requirements: 110 V 60 Hz
• Noise Level: 65 to 75 dB
• Weight (English): 17 lb.
• Weight (Metric): 7.7 kg
• Temperature (English) Max.: 104°F
• Temperature (Metric) Max: 40°C
• Temperature (Metric) Min.: 5°C
• Flow Rate: 37 L/min.
• Frequency: 60 Hz
• Overall Height (English): 8 in.
• Overall Height (Metric): 27.3 cm
• Overall Length (English): 10.75 in.
• Overall Length (Metric): 38.7 cm
• Overall Width (English): 15.25 in.
• Maximum Pressure: 27 in. Hg
• Voltage: 110 V
