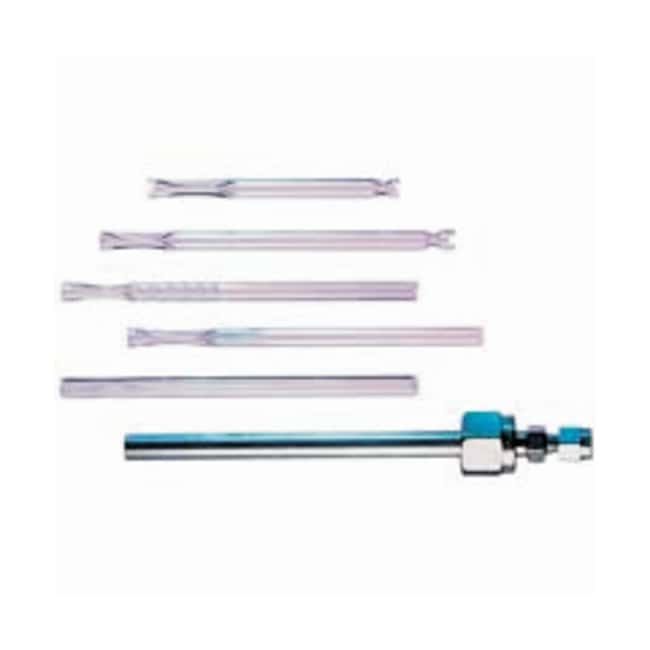

Uniliner Liners for 1/4-Inch Packed Injection Port Conversion from Restek™

For 0.25 in. packed injection port conversion.

Catalog Number	Mfr. No.	Diameter (Metric) Inner	Product Type Specs	For Use With (Equipment)
06-710-564	Restek Corporation 20310	0.8 mm	Uniliner Liner Adaptor	Less Than 8 cm Injector Length
06-710-565	Restek Corporation 20311	0.8 mm	Uniliner Liner Adaptor	8 to 15 cm Injector Length
06-717-680	Restek Corporation 20305	0.53 mm	Uniliner liner, Direct Injection/On-Column	0.53 mm I.D. On-Column Injection Mode, 0.25 in. Packed Injection Port Conversion, Large Buffer Volume Chamber 85 mm L, for ≤4 μL Injections
06-717-686	Restek Corporation 20316	0.32, 0.53 mm	Open top Uniliner liner, Uniliner With FS Wool Direct Injection	0.25 in. Packed Injection Port Conversion, 0.32 and 0.53 mm I.D. Column Direct Injection Only
06-717-693	Restek Corporation 20320	0.32, 0.53 mm	Cyclo UniLiner Liner	0.25 in. Packed Injection Port Conversion, 0.32 and 0.53 mm I.D. Column Direct Injection Only
06-710-560	Restek Corporation 20301	0.053 cm	Uniliner Liner	≤4 μL Injections
06-710-567	Restek Corporation 20315	0.32, 0.53 mm	Open Top UniLiner Liner	0.25 in. Injection Ports to Troubleshoot Purge and Trap Units, 0.32 and 0.53 mm I.D. Column Direct Injection Only
06-710-571	Restek Corporation 20319	0.32, 0.53 mm	Cyclo UniLiner Liner	0.25 in. Packed Injection Port Conversion, 0.32 and 0.53 mm I.D. Column Direct Injection Only

Description

• Reduces solvent tailing
• 0.53mm ID version can be used in the direct (DI) or on-column (OC) injection mode
• Incorporates a gentle taper that seals the column and reduces dead volume in direct injection mode
