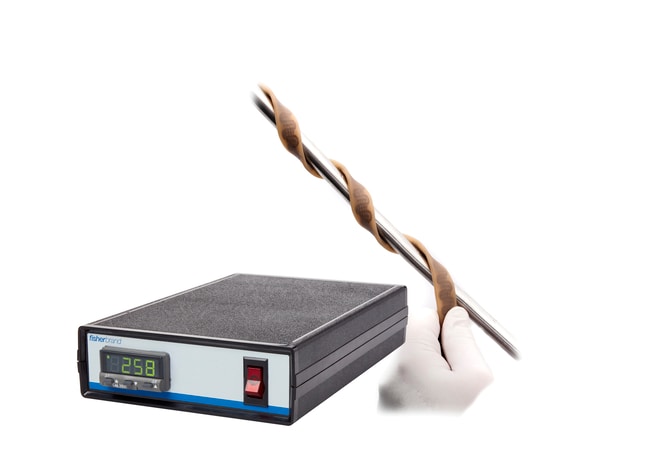

Fisherbrand™ Silicone Heating Tape and PID Control Bundle with J-type Thermocouple

Fisherbrand™ Silicone Heating Tape and PID Control Bundle with J-type Thermocouple features moisture and chemical resistance heat tape.

Catalog Number	Length (Metric)	Width (Metric)
11-476-132	0.6 m	13 mm (0.5 in.)
11-476-133	1.2 m	13 mm (0.5 in.)
11-476-134	1.8 m	13 mm (0.5 in.)
11-476-135	2.4 m	13 mm (0.5 in.)
11-476-138	0.6 m	25 mm (1 in.)
11-476-139	1.2 m	25 mm (1 in.)
11-476-140	1.8 m	25 mm (1 in.)
11-476-141	2.4 m	25 mm (1 in.)

Description

• Silicone Rubber Heating Tapes
• With maximum exposure temperature of up to 232°C (450°F)
• Moisture and chemical resistant
• Multi-strand resistance wire heating element provides exceptional flexibility and durability
• Rapid thermal response for quick heat up time provides accurate heat when needed
• Available in wide variety of length and width configurations
• Safe for use with glass and electrically conductive metal surfaces
• Choice of power leads on same end or opposite ends to suit electrical needs
• Includes 230 mm (9 in.) long high temperature tie downs for safe and easy installation
• Built-in split-plug design for easy connection to temperature controller
• Temperature controller is required for safe operation of this product
• Compact, plug-and-play design
• Advanced PID control
• Simple three-key user control
• Type J thermocouple sensor input

Warranty and Services

1-year

Specifications

• Accuracy: ±0.9°F (0.50°C)
• Controller: Digital PID Benchtop Controller
• For Use With: Electrically Conductive Surfaces
• Voltage: 120 V
• Sensor Types: J-type thermocouple
• Temperature (Metric): 232°C

• Controller Type: PID
• Design: Multi strand resistance wire heating element extruded in silicone rubber
• Dimensions (L x W x H): 6.39 x 9.48 x 1.99 in.
• Includes: Silicone Rubber Heating Tape, Digital PID Temperature Controller
• Product Type: Heater and Control Bundle
• For Use With (Application): Surface heating applications including heating tubes, pipes, glassware, etc.
