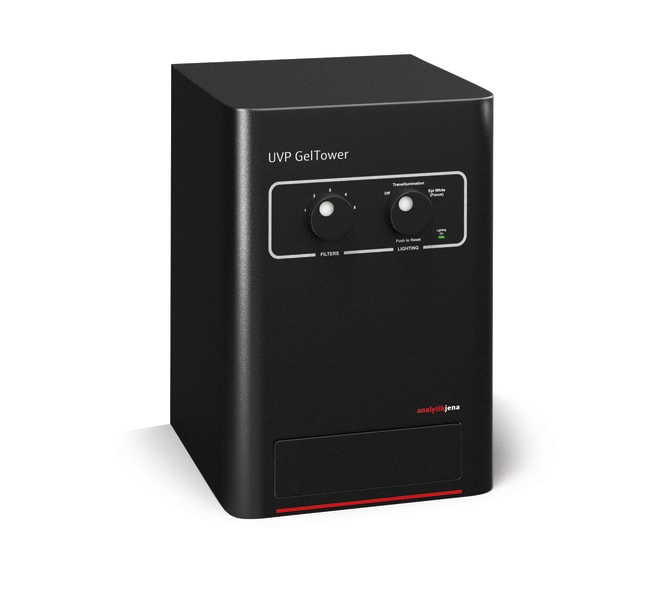

Analytik Jena US UVP GelTower

Description

Includes

Eth Bromide emission filter and VisionWorks™ Software

Analytik Jena US UVP GelStudio Systems include a high-performance 5MP imaging camera with wide aperture lens. Built to image DNA gels, protein gels, blue/white gels, plants, colorimetrics, and colony plates

• Small imager perfect for small gels and small lab spaces.
• Interchangable sample plates for viewing a wide range of fluorophore and colorimetric stains.
• Modular design enables easy placement of sample plates to illuminate precast or mini gels with sizes up to 11 x 16 cm.
• Computer controlled high-resolution color or gray-scale camera.
• The system uses a high resolution 12.2 MP camera in order to create publication-quality images.
• The emission filter selector controls the five-position filter tray, located on the side of the darkroom.
  Built-in midrange 302nm UV transilluminator.
• Lighting selector controls choice of epi white light or transillumination lightning.
• A safey switch automatically shuts the transillumination lighting off when the transilluminator is opened or after ten minutes.

Software

• Analysis of gels is done with user-friendly VisionWorks software.

• Pre-set, one-touch preview and capture buttons to simplify image acquisition.

• Define and save specific settings as templates which can easily be accessed for repeat experiments.

• VisionWorks software allows for easy image enhancements and 1D analysis.
  • Create, docment and print detailed and customizable reports of analysis data.

Certifications

CE listed

Warranty and Services

2 year warranty

Specifications

• Hertz: 50 Hz
• Voltage: 230V
• Depth (English): 13 in.
• Height (English): 15.5 in.
• Pixel Size: 12.2 MP
• Width (English): 12.8 in.
• Includes: Ethidium Bromide filter and VisionWorks Software
• Height (Metric): 39.4cm
• Width (Metric): 32.5cm
