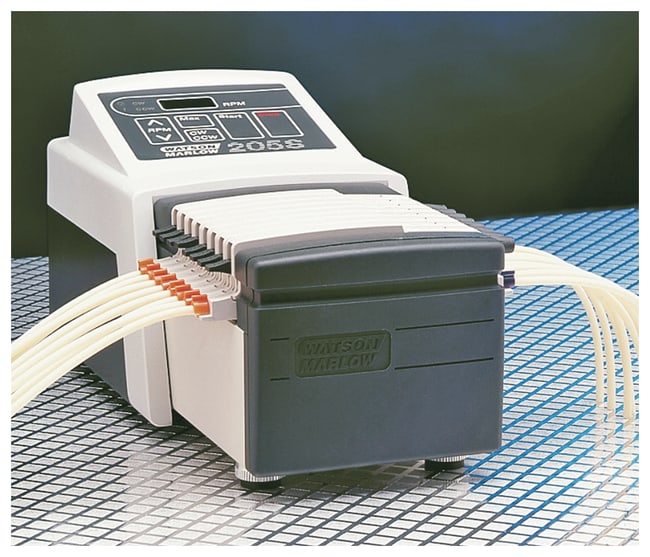

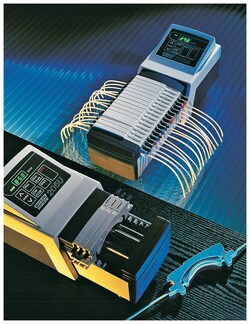

Watson-Marlow Sci-Q 205U/CA and 205S/CA Multichannel Cartridge Pumps

Catalog No. 14-284-101

Supplier: Watson-Marlow 020.3704.00A

Description

Requires

Tubing

Precision multichannel pumps provide accurate pulse-free flows in 4 to 16 channels

• Flowrate: from 0.0006 to 22mL/min. (speed range 0.5 to 90rpm) per channel
• Eight roller head and specially designed cartridges minimize pulsation
• Controls run/stop, direction change, automatic/manual toggle/alarm
• Auto restart option enables automataic recovery from power failures
• Cartidges can be adjusted individiaully for precise flow

For all models:

• Flowrate Range: 0.0006 to 22mL/min.
• Maximum rpm: 90
• Electrical Requirements: 110-120/220-240V (selectable) 50/60Hz
• Speed Control: Digital Closed Loop
• Dimensions: 5.75W × 6.12 in.H (14.6 × 15.6cm)

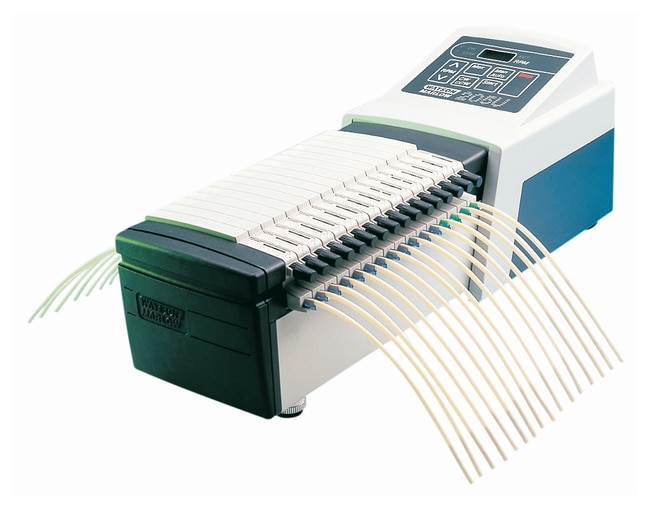

205U/CA Models Only

• Remote analog control of all functions
• Speed control via 4 to 20mA or 0 to 10V
• Tachometer speed output: 0 to 5V

Specifications

• Certifications/Compliance: CE, BS0800, IEC335-1, EN60529
• Channels: 4
• Display Type: LCD
• Enclosure Rating: IP31
• Flow Rate: 0.0006 to 22 mL/min.
• Reversible: Yes
• External Control: Manual
• Model: 205S/CA4
• Noise Level: <70 dB (A)
• Storage Requirements (English): -40°F to +158°F
• Storage Requirements (Metric): -40°C to +70°C
• Temperature (English) Max.: 104°F
• Temperature (English) Min: 41°F
• Temperature (Metric) Max: 40°C
• Temperature (Metric) Min.: 5°C
• Overall Length (English): 11.5 in.
• Overall Length (Metric): 29 cm
• Overall Width (English): 5.75 in.
• Overall Height (English): 6.12 in.
• Overall Height (Metric): 15.6 cm
• Shipping Weight (English): 18 lb.
• Electrical Requirements: 110/120 and 220/240 V 50/60 Hz
• Voltage: 110/120 and 220/240 V
• Frequency: 50/60 Hz
