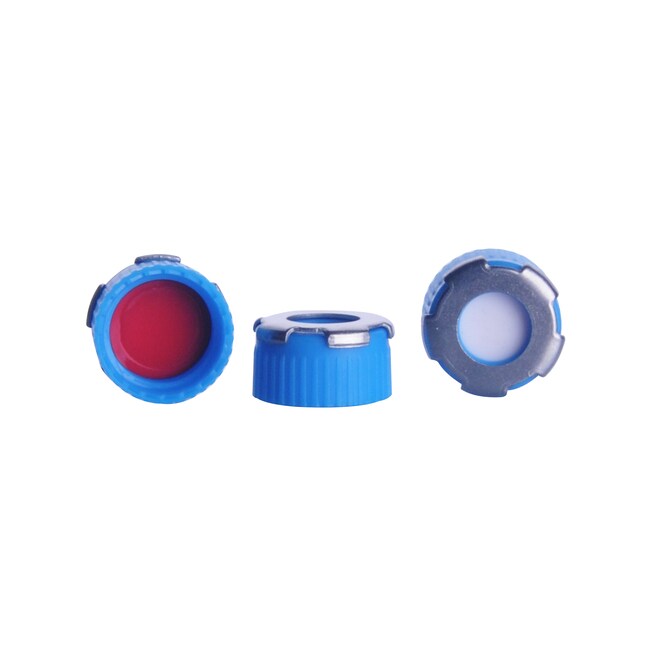

DWK Life Sciences WHEATON™ BlueMAG™ Polypropylene Screw Caps

Catalog No.	Closure Size	Color (Seal)	Material (Liner)	Pre-slit
15-112-109	9 mm	White/Red	Silicone/PTFE	No
15-112-111	9 mm	White/Red/White	Silicone/PTFE/Silicone	Yes
15-112-102	18 mm	White/Blue	Silicone/PTFE SPME	Yes
15-112-103	18 mm	White/Natural	Silicone/PTFE	Yes
15-112-104	18 mm	Red/Natural	Butyl/PTFE	Yes
15-112-105	18 mm	Transparent Blue/White	Silicone/PTFE	Yes
15-112-106	18 mm	White/Blue	Silicone/PTFE	Yes
15-112-107	18 mm	White/Red	Silicone/PTFE	Yes
15-112-108	18 mm	Red/Natural	Rubber/PTFE	Yes

Catalog No. 15-112-109 Supplier DWK Life Sciences Supplier No. 094100

Description

Uniquely designed for automated GC, GC-MS and LC-MS chromatography magnetic sample transport systems

• This polymer-magnetic hybrid cap is designed to address the robustness issues found with either all-metal 18 mm caps for headspace analysis or caps with ferrous 'metal washers' atop the cap commonly found in the 9 mm size
• Available in 18 mm headspace septa and 9 mm screw caps
• Crimped surface which provides both a flat, squared surface for machine automation
• Caps are compatible with all major brands of Autosamplers, X-Y-Z Robotics used in GC-MS or LC-MS applications

Specifications

• Color (Seal): White/Red
• Material (Liner): Silicone/PTFE
• Color: Blue
• Diameter (Metric) Outer: 11 mm
• Material: Polypropylene, Steel
• Pre-slit: No
• Sterility: Non-sterile
• Disposable: Single-use
• Septum: White Silicone/Red PTFE
• Includes: Steel Magnetic Top
• Style: Screw Thread
• Thickness (English): 0.040 in.
• Product Line: Wheaton BlueMag Caps
• Quantity: 100
• Closure Size: 9 mm
• For Use With (Equipment): Autosampler
• Autoclavable: Not Autoclavable
• Height (Metric): 6.1 mm
