Addition Funnels
Chemglass Life Sciences 250mL Funnel, Addition, 24/40 Joint Size, Valve On Side Arm, Airfree, Schlenk
250mL Funnel, Addition, 24/40 Joint Size, Valve On Side Arm, Airfree, Schlenk. Lower outlet is a standard taper inner joint and has a CG-961-01 0-4mm Chem-Vac™ Chem-Cap valve. Top outer joint is the same size as the lower inner joint. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve. This item comes with the inlet valve.

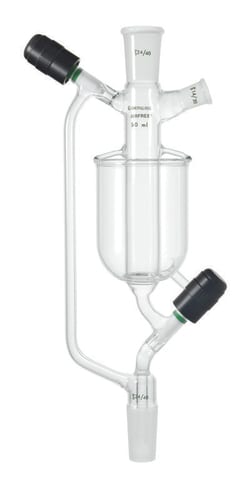

Chemglass Life Sciences 150mL Funnel, Cold Addition, 24/40 Top Outer, 24/40 Lower Inner, 370mm OAL, Airfree, Schlenk
150mL Funnel, Cold Addition, 24/40 Top Outer, 24/40 Lower Inner, 370mm OAL, Airfree, Schlenk. Used in the preparation of block copolymers or any chemical synthesis requiring high vacuum techniques. Funnel features a large diameter ring seal between the coolant container & the addition funnel body. The open cup design of the coolant chamber allows for easy addition of coolant, particularly dry ice chunks. Constructed using grease-free 0-4mm Chem-Vac™ Chem-Cap valves on the pressure equalizing arm & lower inner joint. Positioning of the valves permits the funnel contents to be kept under inert conditions prior to use or during loading. A 14/20 outer joint is sealed on the funnel body above the coolant chamber for syringe sampling of the funnel contents. Funnel has a drain tube on the rear of the coolant chamber. Designed & developed by William J. Swatos & Barton J. Schober, Department Of Materials Science & Engineering, Polymer Science Program, Penn State University
Chemglass Life Sciences 50mL Funnel, Cold Addition, 24/40 Top Outer, 14/20 Lower Inner, 300mm OAL, Airfree, Schlenk
50mL Funnel, Cold Addition, 24/40 Top Outer, 14/20 Lower Inner, 300mm OAL, Airfree, Schlenk. Used in the preparation of block copolymers or any chemical synthesis requiring high vacuum techniques. Funnel features a large diameter ring seal between the coolant container & the addition funnel body. The open cup design of the coolant chamber allows for easy addition of coolant, particularly dry ice chunks. Constructed using grease-free 0-4mm Chem-Vac™ Chem-Cap valves on the pressure equalizing arm & lower inner joint. Positioning of the valves permits the funnel contents to be kept under inert conditions prior to use or during loading. A 14/20 outer joint is sealed on the funnel body above the coolant chamber for syringe sampling of the funnel contents. Funnel has a drain tube on the rear of the coolant chamber. Designed & developed by William J. Swatos & Barton J. Schober, Department Of Materials Science & Engineering, Polymer Science Program, Penn State University
Chemglass Life Sciences 25mL Addition Funnel, 19/22 Joint Size, 2mm PTFE Stopcock, 205mm OAH
25mL Addition Funnel, 19/22 Joint Size, 2mm PTFE Stopcock, 205mm OAH. Cylindrical style addition funnel with a standard taper top outer joint and lower inner joint, both being the same size. With pressure equalizing arm and PTFE stopcock. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 25mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stopcock
25mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stopcock. Jacket permits the cooling of the contents of the funnel by means of dry ice. Drain outlet is 8mm O.D. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm.
Chemglass Life Sciences 1000mL Addition Funnel, 24/40 Joint Size, 0-4mm PTFE Valve, 545mm OAH
1000mL Addition Funnel, 24/40 Joint Size, 0-4mm PTFE Valve, 545mm OAH. Cylindrical style addition funnel with a threaded, grease-free extended tip valve. Design of all PTFE plug permits semi-needle valve action. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. For replacement stoppers see CG-3000.
Chemglass Life Sciences 50mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stopcock
50mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stopcock. Jacket permits the cooling of the contents of the funnel by means of dry ice. Drain outlet is 8mm O.D. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm.
Chemglass Life Sciences 25mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stopcock, 240mm OAH
25mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stopcock, 240mm OAH. Cylindrical style addition funnel similar to CG-1710, but with a PTFE stopcock. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 60mL Addition Funnel, 14/20 Joint Size, 2mm Stopcock, 0-2mm PTFE Valve, 235mm OAH
60mL Addition Funnel, 14/20 Joint Size, 2mm Stopcock, 0-2mm PTFE Valve, 235mm OAH. Cylindrical style addition funnel with a threaded, grease-free extended tip valve. Design of all PTFE plug permits semi-needle valve action. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 25mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm Glass Stopcock, 245mm OAH
25mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm Glass Stopcock, 245mm OAH. Cylindrical style addition funnel graduated with a double scale of numbers, one up from the stopcock and one down from the capacity line. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 50mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm PTFE Metering Stopcock, 225mm OAH
50mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm PTFE Metering Stopcock, 225mm OAH. Cylindrical style addition funnel with a PTFE adjustable bore metering plug. Turning the adjustment knob allows flow rate to be controlled from dropwise to full flow. For replacement stoppers see CG-3000.
Chemglass Life Sciences 1000mL Addition Funnel, Graduated, 29/42 Joint Size, 4mm PTFE Stpk, 535mm OAH
1000mL Addition Funnel, Graduated, 29/42 Joint Size, 4mm PTFE Stpk, 535mm OAH. Cylindrical style addition funnel similar to CG-1716, but with PTFE stopcocks. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 50mL Powder Addition Funnel, 14/20 Joint Size, Auger A
50mL Powder Addition Funnel, 14/20 Joint Size, Auger A. Facilitates the delivery of free-flowing, granular solids into reactions. Pressure equalizing arm is equipped with a vented stopper for air-free operations and also permits access into the delivery stem for easy clean-out. One piece, easily removed grooved PTFE auger delivers powders at a uniform rate. Funnel has a lower inner joint and top outer, both being the size listed.
Chemglass Life Sciences 500mL Addition Funnel, Graduated, 24/40 Joint Size, 4mm Glass Stopcock, 440mm OAH
500mL Addition Funnel, Graduated, 24/40 Joint Size, 4mm Glass Stopcock, 440mm OAH. Cylindrical style addition funnel graduated with a double scale of numbers, one up from the stopcock and one down from the capacity line. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 10mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stopcock, 255mm OAH
10mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stopcock, 255mm OAH. Cylindrical style addition funnel similar to CG-1710, but with a PTFE stopcock. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
