HPLC Columns and Cartridges
Waters Corp Waters Prep Column, C18, BEH, 300Å, 10 μm
The XBridge BEH300 C18 Peptide Separation Technology (PST) columns are optimized and QC tested for peptide separations. Featuring a wide-pore (300Å) trifunctionally bonded BEH particle, they offer a wide usable pH range, superior low pH stability, and ultra-low column bleed for proteomics, protein characterization, and peptide synthesis applications.
- C18 chemistry.
- Hybrid particle substrate.
- 300Å pore size.
- 10 μm particle size.
- 10 mm × 250 mm dimensions.
- pH range 1 to 12.
- Maximum pressure 6000 psi (415 bar).
- Molecular weight range 1,000 to 15,000.
- Spherical particle shape.
- OBD prep column format.
- For HPLC systems.
- BEH particle technology ensures stable bonded phases.
- Negligible retention loss in low-pH stability tests.
- Physical stability via Optimum Bed Density (OBD) Technology.
Sepax Technologies Inc Sepax HPLC Column Proteomix WAX, NP10, 7.8 x 150 mm
Sepax HPLC Column Proteomix WAX, NP10, 7.8 x 150 mm

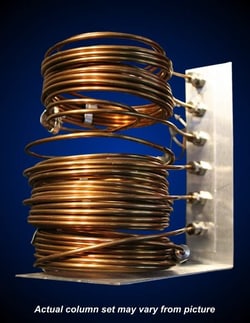

Perkin Elmer US LLC Replacement Column Set for NGA Model 2006/2206/2406
Why would you compromise your gas chromatography by accepting cheap substitutes when replacing the columns in your Arnel Analyzer Use only genuine PerkinElmer column sets as replacements to meet your specific chromatographic needs. Please contact your local PerkinElmer sales representative for replacement column sets for Custom Engineered Arnel Analyzers or for more information about our Arnel Engineered Solutions Analyzers.
Waters Corp Waters Column, C18, 10 μm, 5 mm x 100 mm
The non-encapped Resolve C18 column offers significantly different selectivity compared to similar HPLC packings. It is commonly used for applications where polar compounds require increased retention.
- Chemistry: C18
- Separation mode: Reversed phase
- Particle substrate: Silica
- pH range: 2 to 8
- Maximum pressure: 6000 psi (415 Bar)
- Endcapped: No
- Silanol activity: High
- Particle shape: Spherical
- Particle size: 10 μm
- Pore size: 90 Å
- Format: Radial-Pak column
- Surface area: 200
- System: HPLC
- USP classification: L1
- Inner diameter: 5 mm
- Length: 100 mm
- Carbon load: 10%
- Units per package: 1
Waters Corp Protein-Pak Column, 10 μm, 7.8 mm, 300 mm
Protein-Pak 125 Columns support legacy methods, utilizing 10 μm diol-bonded gel filtration materials. These columns effectively resolve biopolymers, including proteins and enzymes, in HPLC applications, distinguishing proteins that differ by as little as 15% in molecular weight.
- Made with 10 μm diol-bonded gel filtration materials.
- Resolves proteins that differ in molecular weight by a factor of two.
- Distinguishes proteins by as little as 15% in molecular weight.
- Enables separation of biopolymers in HPLC applications.
- Thoroughly tested in a quality-controlled laboratory.
- Compatible with water-miscible solvents like methanol and acetonitrile.
- Stable in normal salt buffer solutions (e.g., sodium sulfate, ammonium acetate, phosphate buffers).
Waters Corp Waters Resolve Silica Radial-Pak Column, 90Å, 5 μm, 8 mm × 100 mm
The non-endcapped Resolve packings differ significantly from Waters' other packing materials. This difference in chromatographic behavior is most commonly observed with polar compounds, which typically show greater retention.
- Non-endcapped packing material
- Designed for improved retention of polar compounds
- Chemistry: Silica
- Separation mode: Normal-Phase
- Particle substrate: Silica
- pH range: 2 to 8 pH
- Maximum pressure: 6000 psi (415 Bar)
- Silanol activity: High
- Particle shape: Spherical
- Format: Radial-Pak Column
- System: HPLC
- USP classification: L3
