pH, ORP, and Titration, Combination Electrodes
Grainger ORP Electrode Epoxy BNC Extended Tip
The Grainger Approved ORP Electrode Epoxy BNC is an oxidation reduction potential electrode with a BNC connector. It has a 3/4 inch diameter epoxy body and platinum sensor. The electrode measures ORP in water treatment, pools, spas, industrial processes and environmental monitoring. It has an operating temperature range of 0 to 80°C. The cable is 6 feet long.
Hach Company Intellical™ PHC108 Laboratory Puncture Stainless Steel pH Electrode, 1 m Cable
Intellical™ PHC108 is a digital combination puncture pH electrode with non-refillable colored electrolyte (polymer) with a ceramic pin plus an open reference junctions, and built-in temperature sensor. The PHC108 has an easy to clean stainless steel body perfect for use in the food industries. Thanks to its spear-shaped glass sensor the PHC108 is specifically designed to measure pH in semi-solid samples. The PHC108 is not suitable for use with organic solvents, low ionic strength or high alkaline sample types.
World Precision Instrument Extra Ussing Current Electrode
Current (red) and voltage (black) electrodes are threaded and screw securely into the end of each Luer tipped cartridge. The Luer tip then plugs securely into the Luer openings of the chamber. The cable from each electrode terminates with a 2 mm pin which may be plugged into most voltage/current clamps.
The miniature electrode-gel cartridge is a small plastic tube with a male Luer tip identical to those at the tip of hypodermic syringes. The tube may be filled with different gel materials. Agar is commonly used, but other gel materials may also be satisfactory.
Hach Company Sension+ 5056 laboratory ORP electrode for general applications
Sension+ 5056 is a combination platinum ORP electrode with a glass body and non-refillable gel-electrolyte reference. The 5056 has a fixed 1 meter cable and BNC connector dedicated for use with Hach Sension+ Laboratory pH (mV) meters. The 5056 has a ceramic junction is ideal for oxidation-reduction potential (ORP) measurements in general aqueous applications.

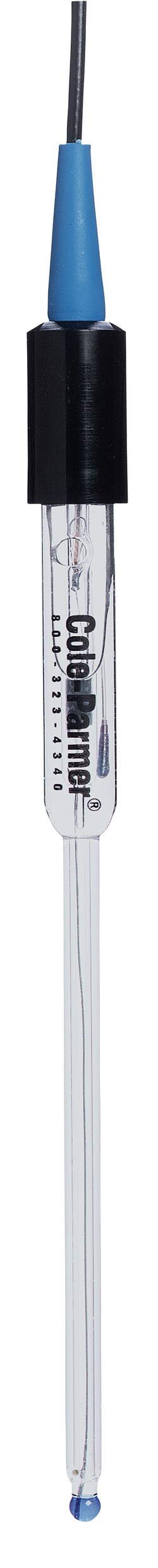

Cole-Parmer Insertion/Submersion pH Probe; DJ/CPVC/100Ohm RTD; Tinned/BNC
In-line or submersible electrodes with probe guard operate from 23 to 176°>F (-5 to 80°>C) and have a PVC housing with a 3/4'' NPT(M) fitting on both ends. Epoxy body withstands pressures to 100 psi. Measure pH from 0 to 14. All electrodes measure 6-3/4''L x 1'' OD, with a 1-3/4'' insertion depth.
Hach Company Intellical™ PHC725 Laboratory Low Ionic Strength Media RedRod Refillable Glass pH Electrode, 1 m Cable
Intellical™ PHC725 is a digital combination pH electrode with built-in temperature sensor. The PHC725 is a pH refillable electrode with annular ceramic porous reference junction embedding the RedRod technology to deliver exceptionally fast, stable, and accurate response times for accurate measurements within a wide temperature range. Thanks to its annular ring reference junction this high performance laboratory glass pH electrode is ideal for measuring pH in Low Ionic Strength aqueous solutions. A 59-mL bottle of saturated KCl Electrode Filling Solution is included with the probe. The PHC725 is not suitable for use with organic solvents, emulsions, samples with high solids content or high alkaline sample types.
Bellco Glass, Inc. EASYFERM+ K8 pH Probe,12x200mm Hamilton
Dissolved oxygen and PH electrodes are the eyes and ears for many biotechnology processes. High quality sensors are required for critical measurement and Hamilton sensors are some of the fi in the world. Bellco offers Hamilton gel-filled PH and stainless steel polarographic dissolved oxygen sensors with the standard 4 pin T82 K8 and vp style connectors in 120 to 425 mm lengths.
Cole-Parmer ORP electrode, double-junction, platinum band, 10-ft cable
This electrode can be used for many applications in a variety of industrial housings.
HANNA INSTRUMENTS INC Industrial Flat Tip pH Electrodes
Hanna presents a series of combination pH electrodes incorporating over 20 years of electrode manufacturing experience. The most advanced feature of this series is the electrode shape with a flat tip, virtually eliminating deposits that can foul the electrode, significantly reducing necessary maintenance. This characteristic makes flat tip electrodes ideal for continuous in-line monitoring and for solutions containing aggressive chemicals.Self-cleaning flat tip sensor for significantly reduced maintenance.Provided with an internal matching pin that can avoid typical problems caused by grounding loop current.3/4” NPT external thread on both ends for easy installation.
Grainger ORP Electrode CPVC BNR Flat Tip
The SensoRex Flat Surface ORP Electrode is an oxidation reduction potential (ORP) sensor designed for flat surface applications. It has a flat, smooth platinum sensing surface and body constructed of Ryton plastic. Key features include a quick response time, low maintenance requirements, and compatibility with a wide range of sample types. This electrode can be used for water treatment, plating baths, swimming pools and more. With proper care it provides stable, drift-free ORP measurement.
