Stirrer Accessories
Chemglass Life Sciences Stirring Shaft, 10mm, Polished, Button Style, for 2000 to 12000mL Flasks, 525mm OAL
Stirring Shaft, 10mm, Polished, Button Style, for 2000ml. to 12000ml. Flasks, 525mm OAL. A 10mm precision ground and polished stirrer shaft to fit CG-2076 and CG-2077 10mm bearings. Side button for attachment of CG-2080 or CG-2081 PTFE stirrer blades.PLEASE NOTE: THESE SHAFTS ARE NOT TO BE USED WITH ANY TYPE OF GLASS BEARING. FOR GROUND SHAFTS USED WITH GLASS BEARINGS SEE CG-2075.

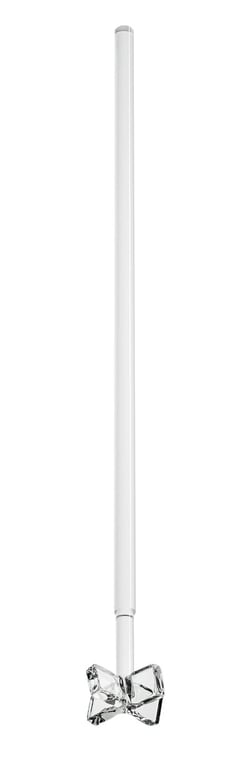

Chemglass Life Sciences Stirring Shaft, 10mm, Polished, Glass Agitator, Four-Blade, 525mm OAL, for 1000mL Reactors, 67mm OD Agitator
Stirring Shaft, 10mm, Polished, Glass Agitator, Four-Blade, 525mm OAL, for 1000mL Reactors, 67mm OD Agitator. Shaft is precision ground and polished to fit our CG-2076 and CG-2077 10mm PTFE bearings. Designed to be used with cylindrical type reactors. The straight glass blades are spaced 90° apart and angled 15°. PLEASE NOTE: STIRRER SHAFTS ARE DESIGNED FOR COUNTER-CLOCKWISE ROTATION.
Chemglass Life Sciences Stirring Shaft, 10mm, Button Style, for 100mL to 5000mL Flasks, 455mm OAL
Stirring Shaft, 10mm, Button Style, for 100mL to 5000mL Flasks, 455mm OAL. A 10mm precision ground stirrer shaft to fit CG-2070 through CG-2072 10mm bearings. Side button for attachment of CG-2080 or CG-2081 PTFE stirrer blades.PLEASE NOTE: THESE SHAFTS ARE NOT TO BE USED WITH ANY TYPE OF PTFE BEARING. FOR POLISHED SHAFTS USED WITH PTFE BEARINGS SEE CG-2079.
Chemglass Life Sciences Stirring Shaft, PTFE Covered SS, 525mm OAL, 66mm OD Retreating Blade, Fits Reactors up to 1000mL
Stirring Shaft, PTFE Covered SS, 525mm OAL, 66mm OD Retreating Blade, Fits Reactors up to 1000mL
Cole-Parmer 316 Stainless Steel three-blade propeller, 2" dia x 5/16" bore dia
Update clamps, mounts, shafts and propellers to accommodate new protocols. Replacement parts keep your overhead mixer running smoothly.
Cole-Parmer 316 Stainless Steel Shaft, 3/8" dia x 18"L (accepts a 5/16" bore dia propeller)
Update clamps, mounts, shafts and propellers to accommodate new protocols. Replacement parts keep your overhead mixer running smoothly.
Pipette Supplies, Inc. Rainin Pipet-Lite / Pipet-Lite XLS Shaft Coupling Nut, Single Channel Pipettes, 2µL-1000µL
Shaft coupling nut for the following pipettes:Pipet-Lite, Single Channel, L, SL, 2μL – 1000µLPipet-Lite XLS, Single Channel, XLS, 2μL – 1000µL
Chemglass Life Sciences Chemglass 19 mm Rotary Bearing Rebuild Kit with Tools - for CG-2077-M series mechanical-seal stirrer bearings
The Chemglass 19 mm rotary bearing rebuild kit supplies replacement bearings, seals, and hand tools needed to service 19 mm mechanical-seal stirrer bearings. It supports routine maintenance and seal replacement for rounded or beveled glass, metal, or PTFE-covered stir shafts.
- Includes adjustable pin spanner wrench and retaining ring pliers.
- Contains bearing seal, ball bearings, and needle roller bearings.
- Bearing body material: glass-filled PTFE.
- Seals use perfluorinated O-rings for broad chemical resistance.
- Rated seals up to 2,000 rpm; manufacturer recommends a maximum of 500 rpm with glass vessels or shafts.
- Seal life approximately 3,000 hours.
- Specialized grease sold separately; a small amount of mineral oil may be applied during installation.
- Designed for use with rounded or beveled stir shafts; do not use with flat-ended shafts.
Chemglass Life Sciences Bearing Body Only, 19mm Stir Bearing, Mechanical Seal, 2-3/8in Threaded Connection
Bearing Body Only, 19mm Stir Bearing, Mechanical Seal, 2-3/8in Threaded Connection. Our NEW mechanical seal bearing is the only design on the market that will permit you to use your current glass, metal or PTFE covered stir shaft. The design allows you to have the flexibility of vertical adjustment and still choose your agitator diameter and style. Bearing has a ferrule and locking nut to ensure that the seal rotates properly, and is supplied complete with a gold plated wrench. Lower joint adapters are supplied complete with perfluorinated o-rings and a loosening nut. PLEASE NOTE: BEARING BODY AND LOWER JOINT ADAPTER MUST BE ORDERED SEPARATELY.**MAX RPM WILL DEPEND ON SHAFT AND/OR AGITATOR TYPE, ALONG WITH ALIGNMENT OF MOTOR AND COUPLING. CHEMGLASS RECOMMENDS A MAX OF 500 RPM WHEN USED WITH ANY GLASS VESSEL, LID OR SHAFT. LONGER LENGTH STIRRER SHAFTS ARE REQUIRED FOR USE WITH CG-2077-M MECHANICAL SEAL STIR BEARINGS.
Chemglass Life Sciences Replacement Bearing Sleeve, 10mm
Replacement Bearing Sleeve, 10mm. Replacement part for CG2077G series of stirrer bearings.
