Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Distilling Head, 500mL, Solvent, Modified, 24/40 Inner Joint On Take-Off
Distilling Head, 500mL, Solvent, Modified, 24/40 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 24/40 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Receiver, 20mL, Moisture Test, Dean-Stark, 10/30 Thermometer Joint, Modified, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 400mm Height x 130mm Width
Distilling Receiver, 20mL, Moisture Test, Dean-Stark, 10/30 Thermometer Joint, Modified, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 400mm Height x 130mm Width. Modified Dean-Stark receiver designed for solvents that are either lighter or heavier than water. The lower three-way PTFE stopcock allows for the withdraw or return of the distillate during the distillation process. With a 10/30 outer joint on the top of the vapor tube for a 3” immersion thermometer. Graduations are the same as CG-1261.
Chemglass Life Sciences Joint Size: 24/40, Capacity mL: 20, Stopcock Size: 2mm, Approx. Height x Width (mm): 325 x 125
Graduated distilling receiver with a standard taper outer joint on top and a standard taper lower drip joint. Distance between the receiver and the uptake arm: 10 and 20mL are 100mm center to center; the 50, 100 and 250mL are 150mm center to center. Joint Size: 24/40, Capacity mL: 20, Stopcock Size: 2mm, Approx. Height x Width (mm): 325 x 125.
Chemglass Life Sciences Distilling Column, 19/22 Joint, 170mm, Vigreux
Distilling Column, 19/22 Joint, 170mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Distilling Column, 24/40 Joint, 200mm, Vigreux
Distilling Column, 24/40 Joint, 200mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Adapter, Distillation, 105°, 19/22 Outer
Adapter, Distillation, 105¿, 19/22 Outer. Distillation adapter with a top outer standard taper joint. Tapered delivery tube is bent at a 105¿ angle to the outer joint and extends into open receivers.
Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Dean-Stark, 24/40 Joint Size, Approx. 250mm Height x 90mm Width
Distilling Receiver, 10mL, Moisture Test, Dean-Stark, 24/40 Joint Size, Approx. 250mm Height x 90mm Width. Similar to CG-1258 but with the addition of an overflow tube between the uptake tube and the graduated receiver.

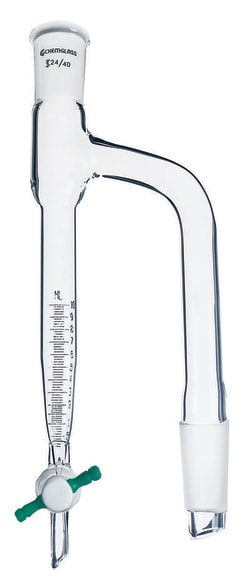

Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width. Barrett style distilling receiver used to determine the water content in petroleum or bituminous material. Receiver is made according to ASTM specifications, with the addition of the top outer standard taper joint and lower stopcock. The 2mL has sub-divisions of 0.02mL; the 5ml has subdivisions of 0.20mL; 10ml has subdivisions of 0.1mL; the 20mL has subdivisions of 0.2 from 0 to 3mL and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Receiver, 20mL, Moisture Test, Barrett, Jacketed, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 325mm Height x 105mm Width
Distilling Receiver, 20mL, Moisture Test, Barrett, Jacketed, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 325mm Height x 105mm Width. Similar to CG-1261 but with the uptake tube vacuum jacketed to improve distillation performance. The jacket eliminates the possibility of condensation or recrystallization of distillate in the sidearm. The 5ml has subdivisions of 0.20ml; 10ml has subdivisions of 0.1ml; the 20ml has subdivisions of 0.2 from 0 to 3ml and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Head, Short Path, Vigreux Indents, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 110mm Width x 110mm Height
Distilling Head, Short Path, Vigreux Indents, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 110mm Width x 110mm Height. Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as column packing. Upper hose connections are for cooling lines while the lower connection is for vacuum. Available with Vigreux indentations to improve efficiency. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accepts a 2” immersion, 10/30 thermometer.
Chemglass Life Sciences Distilling Column, 24/40 Joint, 450mm, Vigreux
Distilling Column, 24/40 Joint, 450mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.

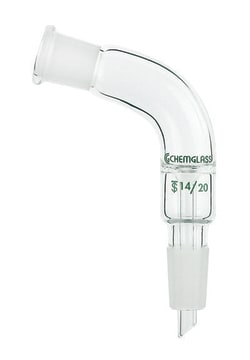

Chemglass Life Sciences Adapter, Distillation, 105°, 14/20 Outer
Adapter, Distillation, 105¿, 14/20 Outer. Distillation adapter with a top outer standard taper joint. Tapered delivery tube is bent at a 105¿ angle to the outer joint and extends into open receivers.
Chemglass Life Sciences Distilling Head, 1000mL, Solvent, Modified, 24/40 Inner Joint On Take-Off
Distilling Head, 1000mL, Solvent, Modified, 24/40 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 24/40 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Column, 24/40 Joint, 150mm, Vigreux
Distilling Column, 24/40 Joint, 150mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Distillation Head, Vigruex, Jacketed, 10/30 Thermometer Joint, 24/40 Joint Size, 200mm Column Length, Approx. 325mm Height x 350mm Width
Distillation Head, Vigruex, Jacketed, 10/30 Thermometer Joint, 24/40 Joint Size, 200mm Column Length, Approx. 325mm Height x 350mm Width. Vacuum jacketed Vigreux distillation head having a sealed on condenser, braced for strength. The top outer joint is for a 1” immersion 10/18 or 10/30 thermometer. Vacuum adapter has an inner joint and a sealed in drip tip. Condenser length is 100mm on the 14/20 size and 200mm on the 24/40 and 29/42 sizes.
