Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
YSI 3P LifeScience TRAP-#10 TENAX/SIGEL/CMS P&T
Carbon Molecular Sieve Trap, no. 10, Tenax, Silica Gel, Analytes Dichlorodifluoromethane, Chloromethane, Vinyl Chloride, Bromomethane, Chloroethane, Trichlorofluoromethane, 1, 1-Dichloroethene, for the Model 4560 Sample Concentrator
Hach Company Tubes, MICRO DIST Cyanide-1, NaOH trapping solution. 21/pk
Tubes for Cyanide MICRO DIST® Distillation System. Distill up to 21 samples in 30 minutes. Cyanide method is USEPA Approved for NPDES and NPDWR. 21/pk
Ace Glass, Inc. Congealing temperature distillation apparatus
ACE congealing temperature distillation apparatus, which is similar to that described in U.S. Pharmacopeia, 1995, page 1780. The ACE apparatus is supplied with Ace-Threds in place of rubber stoppers, where practical. A #50 thread at center holds a test tube with a #25 bushing, and the open-top test tube utilizes a rubber stopper to secure a thermometer and wire stirrer. The apparatus has a #7 Ace-Thred thermometer port on one side, and a 22mm I.D. opening on the other side to access the 125mm O.D. x 150mm high cylinder. Applicable to substances that melt down between -20 to 150 degrees C.
Chemglass Life Sciences Adapter, Distillation, 75°, 24/40 Inner Joints, Tooled Rubber Fitting
Adapter, Distillation, 75°, 24/40 Inner Joints, Tooled Rubber Fitting. Adapter has a tubulation at the top for use with a CG-1040 rubber fitting. Fitting permits insertion of plain stem, partial immersion thermometers. Supplied complete with one CG-1040 rubber fitting. With the same size inner joints on the bottom and sidearm at a 75º angle to one another. FOR THERMOMETERS SEE CG-3503.
Chemglass Life Sciences Condenser, Reflux, 390mm, 24/40 Joint, 250mm Jacket Length
Condenser, Reflux, 390mm, 24/40 Joint, 250mm Jacket Length. Reflux condenser having an internal coil that is water jacketed. Vapors are condensed both on the coil and the inner wall of the jacket. The top end has a standard taper outer joint and the lower end has an inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.
Chemglass Life Sciences Condenser, High Efficiency, 590mm, 45/50 Joint, 465mm Jacket Length
Condenser, High Efficiency, 590mm, 45/50 Joint, 465mm Jacket Length. This unique design combines some of the best features for refluxing in a single condenser. Coolant, introduced into the upper hose connection, fills a large cold finger that is wrapped with coils. After the coolant travels through the coils, it enters the water jacket to maximize cooling surface along the vapor path. Angled take off joint is a standard taper 24/40, and the angled take off joint for the 45/50 size is a standard taper 29/42. Hose connections for the 24/40 size condenser are 10mm at the largest serration. Hose connections for the 45/50 size are 15mm at the largest serration.
Chemglass Life Sciences Condenser, Reflux, 24/40 Joint, 210 x 64mm, GL-14 Screw Caps, Removable Hose Connections
Condenser, Reflux, 24/40 Joint, 210 x 64mm, GL-14 Screw Caps, Removable Hose Connections. Compact high efficiency reflux condenser similar to CG-1217 but with detachable hose connections. Connections are made of polypropylene and provide a safe and easy way of connecting and disconnecting flexible tubing to the condenser. Supplied complete with two GL open top screw caps and two straight polypropylene hose connections. Condensing area is the same as CG-1217.
Chemglass Life Sciences Distilling Column, 19/22 Joint, 170mm, Vigreux
Distilling Column, 19/22 Joint, 170mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Condenser, Reflux, 470mm, 29/42 Joint, Style B, 300mm Jacket Length
Condenser, Reflux, 470mm, 29/42 Joint, Style B, 300mm Jacket Length. Coil style reflux condenser with tightly wrapped coil providing maximum cooling. Excellent for use with high vapor pressure solvents. Condenser has a top outer standard taper joint and lower inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.

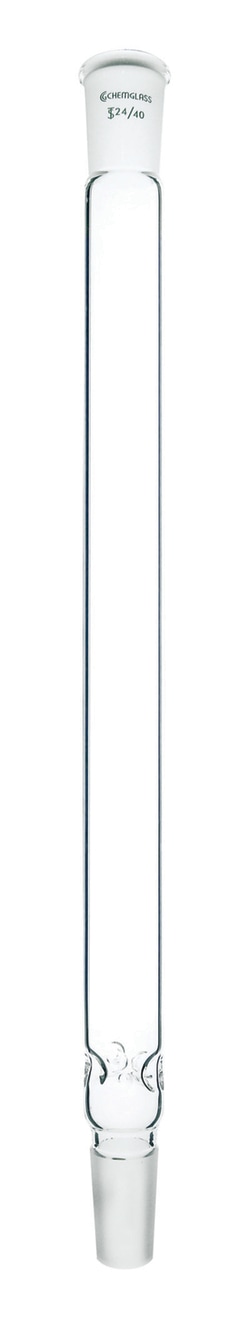

Chemglass Life Sciences Distilling Column, 19/22 Joint, 10 x 250mm, Hemple
Distilling Column, 19/22 Joint, 10 x 250mm, Hemple. Plain distillation column with a row of indentations to support column packing material. Column length listed is for the straight portion above the row of indentations and below the joint. Column has a standard taper top outer and lower inner joint.
Chemglass Life Sciences Distilling Column, Water Jacketed, 14/20 Joint, 200mm
Distilling Column, Water Jacketed, 14/20 Joint, 200mm. Jacketed distilling column has indentations on the inner tube to support packing material. The jacket allows the column to be used as a condenser. Column has a top outer and lower inner standard taper joint. Available in joint sizes other than those listed. All sizes have an I.D. of approximately 10mm.
Chemglass Life Sciences Distilling Head, Short Path, Jacketed, Vigreux Indents, 10/30 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 200mm Width x 150mm Height
Distilling Head, Short Path, Jacketed, Vigreux Indents, 10/30 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 200mm Width x 150mm Height. Similar to CG-1239 but vacuum jacketed to improve efficiency. Available with Vigreux indentations in uptake tube to further increase the performance of the head. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accept a 2” immersion, 10/30 thermometer.
