Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.

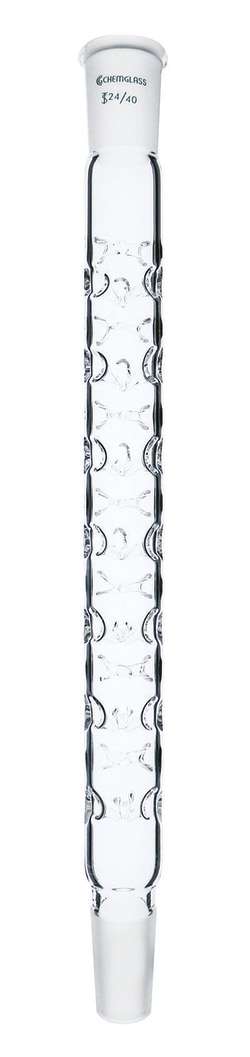

Ace Glass, Inc. Vigreux column, 24/40, 18 inch effective length
Vigreux column, 24/40, 18 inch effective length
Ace Glass, Inc. Receiver, distillation, 24/40, glass plug
Especially designed receiver to draw samples during distillation or to return the condensed vapor to the flask. Capacity 125ml.
Ace Glass, Inc. 30cm Congealing temperature wire stirrer with #3 stopper
30cm congealing temperature wire stirrer with #3 stopper, part of the ACE congealing temperature distillation apparatus, which is similar to that described in U.S. Pharmacopeia, 1995, page 1780. The ACE apparatus is supplied with Ace-Threds in place of rubber stoppers, where practical.
Ace Glass, Inc. Distillation head, automatic reflux control via solenoid valve arrangement.
Distillation head featuring an automatic reflux control by means of a solenoid valve arrangement. Supplied with a #7 Ace-Thred™ bushing for use with 6-7mm diameter temperature probes or thermometers. Equalizing arm 12/3 joints are supplied with ACE 7669-03 clamps. Top and bottom joints are 14/20. *Thermometer not included.
Chemglass Life Sciences Distilling Head, Vigreux, Jacketed, 10/18 Thermometer Joint,14/20 Joint Size, 2mm PTFE Stopcock, Approx. 255mm Height x 310mm Width
Distilling Head, Vigreux, Jacketed, 10/18 Thermometer Joint,14/20 Joint Size, 2mm PTFE Stopcock, Approx. 255mm Height x 310mm Width. Jacketed fractionation distilling head for use under vacuum. The 10/18 top outer joint is for a 1” immersion thermometer while the 10/30 joints are for a 2” immersion thermometer. The 24/40 joint size uses 4mm glass or PTFE stopcocks, and are positioned to permit changing of receiver without interruption of the distillation process. The 14/20 size uses 2mm bore glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Column, Vigreux, Minum-Ware, Column Height 75, OAL 125
Distilling Column, Vigreux, Minum-Ware, Column Height 75, OAL 125. Vigreux style column with indentations for improved vapor-liquid contact. Column height is the length of the indented section. Upper threaded outer joint and lower inner joint are 14/10. Supplied complete with open-top screw cap (MW-102-33) and Viton o-ring (MW-100-08).
Chemglass Life Sciences 50mL Tube, Storage, 24/40 Outer Joint, Airfree, Schlenk
50mL Tube, Storage, 24/40 Outer Joint, Airfree, Schlenk. Similar to AF-0522, but cylindrical in shape. The 25 and 50mL sizes have a 0-4mm Chem-Vac™ Chem-Cap valve while the 100 and 350mL sizes have a 0-8mm valve size.
Ace Glass, Inc. 1000mL vacuum trap 125 x 315mm w/#15 thread
1000mL vacuum trap with #15 Ace-Thred includes round bottom flask, adjustable inner tube, and nylon bushing with FETFE o-ring. Flask dimensions: 125mm x 315mm.
Ace Glass, Inc. Trap, stopper, vacuum, 34/45, 16mm inner & side tube OD
Trap, stopper, vacuum, 34/45, 16mm inner & side tube OD
Ace Glass, Inc. Still body, no jacket, Vigreux indents, 10/18, 14/20
Still body, no jacket, Vigreux indents, 10/18, 14/20
Ace Glass, Inc. 19/22 130mm distillation column
19/22 130mm long Vigreux distillation column. Length in millimeters refers to the effective length as measured from the lowest to the highest indent of the column.
