General Spectrometer Accessories
Glass Expansion Quartz Torch 2.5mm injector with gas fittings
Quartz Torch, single-piece, 2.5 mm ID injector with gas fittings, for Spectro (Ametek) SOP Modula, CIROS, Genesis, ARCOS Series ICP-OES (S75008). Suitable for routine aqueous analysis but not inert to samples containing hydrofluoric acid (HF).Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Tapered Quartz Injector 2.5mm for D-Torch
Tapered Quartz Injector with 2.5mm ID.2.5mm ID Tapered Quartz Injector. They are designed for organic solvents and non-HF matrices. Compatible with Spectro (Ametek) SOP Modula, CIROS, Genesis, ARCOS Radial D-Torch 50-190-7023 (30-808-2928). When replacing your injector, it is recommended to replace the injector ferrule (31-808-2962), on average every 6 months.Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Tapered Alumina Injector 2.4mm for D-Torch
Alumina Tapered Injector with 2.4mm ID.2.4mm ID tapered alumina injector (50-190-7214, 31-808-3388). This alumina injector, with 2.4 mm I.D., is for use with Spectro (Ametek) EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES, not for ARCOS II. The most versatile and suitable for use with aqueous, including HF, and organic solvent-based matrices.Spectro (Ametek) EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES Injectors - Compatible with Glass Expansion Axial D-Torch 50-190-7029 (30-808-3371) and Radial D-Torch 50-190-7023 (30-808-2928). Optional Tapered Quartz Injectors are 1.8 mm 50-190-7168 (31-808-2974), 2.5 mm 50-190-7252 (31-808-3723) and 3.0mm 31-808-3724, Tapered Alumina Injectors 1.2mm 50-190-7191 (31-808-3238) and 1.8mm 50-190-7166 (31-808-2963). Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Sapphire Injector 2.4mm for D-Torch
Sapphire Injector with 2.4mm ID.2.4mm ID sapphire injector (50-190-7222, 31-808-3414). This sapphire injector, with 2.4 mm I.D., is for use with Spectro EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES, not for ARCOS II. Sapphire injectors are ideal for silicon and HF applications.Spectro EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES Injectors - Compatible with Glass Expansion Axial D-Torch 50-190-7029 (30-808-3496) and Radial D-Torch 50-190-7023 (30-808-2928). Optional Tapered Quartz Injectors are 1.8 mm 50-190-7168 (31-808-2974), 2.5 mm 50-190-7252 (31-808-3723) and 3.0mm 31-808-3724, Tapered Alumina Injectors are 1.2mm 50-190-7191 (31-808-3238), 1.8mm 50-190-7166 (31-808-2963) and 2.4mm 50-190-7214 (31-808-3388). Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Tapered Quartz Injector 1.8mm for D-Torch
Quartz Tapered Injector with 1.8mm ID.1.8mm ID tapered quartz injector (50-190-7168, 31-808-2974), designed for organic solvents and non-HF matrices. This quartz injector, with 1.8 mm I.D., is for use with Spectro (Ametek) EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES, not for ARCOS II. The most versatile and suitable for use with aqueous, including HF, and organic solvent-based matrices.Spectro (Ametek) EOP/SOP, Axial/Radial (Modula, CIROS, Genesis, ARCOS) ICP-OES Injectors - Compatible with Glass Expansion Axial D-Torch 50-190-7029 (30-808-3371) and Radial D-Torch 50-190-7023 (30-808-2928). Optional Tapered Quartz Injectors are 2.5 mm 50-190-7252 (31-808-3723) and 3.0mm 31-808-3724, Tapered Alumina Injectors 1.2mm 50-190-7 (31-808-3238), 1.8mm 50-190-7166 (31-808-2963) and 2.4mm 50-190-7214 (31-808-3388). Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Quartz Outer Tube for D-Torch
Quartz Outer Tube for D-Torch. Compatible with Spectro (Ametek) Modula, CIROS, Genesis, ARCOS EOP Axial D-Torch (30-808-3371, 501907029). The D-Torch, provides a robust and high-performing alternative to both single-piece and semi-demountable quartz torches, ensuring greater robustness and a lower cost of ownership. With the D-Torch design, the analyst most often replaces only the outer tube, rather than replacing the entire torch or a quartz torch body.When not in use, clean as per recommended guidelines, and store in original box.Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001

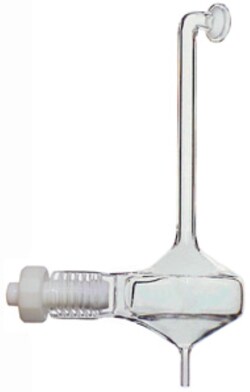

Glass Expansion Tracey Spray Chamber with Helix CT (Long Neck),50ml cyclonic, Borosilicate glass. Includes UFT-2-700 UniFit Connector (1 unit) and 70-803-1439 Helix CT locking screw with seal (1 unit)
Tracey spray chamber, includes Helix CT locking screw & seal (1 pc), UniFit with 2.0mm OD x 0.86mm ID x 700mm long tube (1 pc) & 13mm ball joint clip. Made from borosilicate glass, 50mL volume. Compatible with Spectro (Ametek) EOP Modula, Ciros, Genesis, Arcos.The Tracey is a cyclonic design providing the highest sensitivity and fastest washout performance for ICP analyses. Ideal choice for most ICP applications, especially for those requiring the highest sample throughput and performance.The unique Helix CT interface consists of two parts, a ConstantTorque Locking Screw & chemically inert PressFit ferrule. The main feature of the Helix CT is the built-in, ratcheting torque control mechanism that allows for a consistent, zero dead volume, inert seal of the nebulizer.Replacement parts include UFT-2-700 & NC2081825, suggested to replace every 6 months.Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
Glass Expansion Quartz Outer Tube for D-Torch
Quartz Outer Tube for D-Torch. Compatible with Spectro (Ametek) Modula, CIROS, Genesis, ARCOS SOP Radial D-Torch (30-808-2928, 501907023). The D-Torch, provides a robust & high-performing alternative to both single-piece and semi-demountable quartz torches, ensuring greater robustness & a lower cost of ownership. With the D-Torch design, the analyst most often replaces only the outer tube, rather than replacing the entire torch or a quartz torch body.When not in use, clean as per recommended guidelines, and store in original box.If analyzing high salt, fusions, wear metals in oil, hydrofluoric acid (HF) or volatile organics, we recommend the ceramic outer tube P/N 501907167, which does not devitrify or crack from thermal shock, like quartz. Compared to quartz outer tubes, the ceramic alternative has an extended lifespan, significantly reducing maintenance, cleaning, and downtime caused by torch failure.Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001

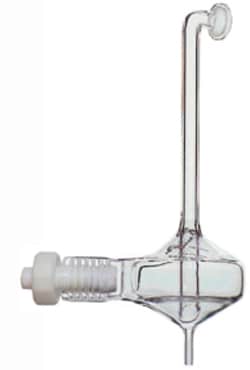

Glass Expansion Twister Spray Chamber with Long Neck and Helix CT, 50ml cyclonic, Borosilicate glass. Includes UFT-2-700 UniFit Connector (1 unit) and70-803-1439 Helix CT locking screw with seal (1 unit)
Twister spray chamber with long neck, includes Helix CT locking screw & seal (1 pc) & UniFit with 2.0mm OD x 0.86mm ID x 700mm long tube (1 pc). Made from borosilicate glass, 50mL volume. Compatible with Spectro Arcos & Genesis EOP Series.The Twister features a baffle, which efficiently removes larger droplets, producing a smaller mean droplet size entering the plasma. Resulting in a more robust plasma, making the Twister an excellent choice for applications requiring the best possible precision & for both high TDS or organic sample matrices.The unique Helix CT interface consists of two parts, a ConstantTorque Locking Screw & chemically inert PressFit ferrule. The main feature of the Helix CT is the built-in, ratcheting torque control mechanism that allows for a consistent, zero dead volume, inert seal of the nebulizer.Replacement parts include UFT-2-700 & NC2081825, suggested to replace every 6 months.Glass Expansion is ISO 9001:2015 certified by AB Certification, No. AU4501-9001
