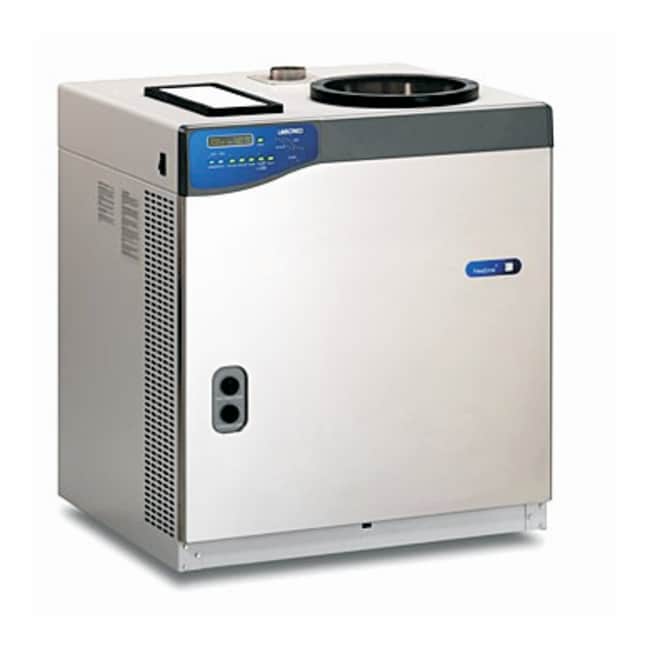

Labconco™ Console FreeZone™ Freeze-Dry Systems: 6L

Labconco Console FreeZone Freeze-Dry System: 6L models available in several system configurations and collector capacities to meet sample load requirements.

Supplier:  Labconco™ 7753522

Catalog No. 16-208-504

Description

• Cabinets are white epoxy-coated steel with brushed stainless-steel front panels and are mounted on 3 in. (7.6cm) casters for mobility
• Refrigeration system cools collector to -50°C (-58°F)
• Purge Valve option with switch prevents backstreaming of vacuum pump oil and minimizes chance for sample contamination of power if interrupted
• Upright collector chamber simplifies defrosting; many models include built-in hot gas defrost to quickly melt any collected ice
• Automatic one-button startup initiates condenser cooldown and vacuum pulldown
• LCD indicates temperature in °C or °F; vacuum in mbar, Pa, and torr
• LED vacuum and temperature “waves”, on all except 1L models, show relative system vacuum and collector temperature
• LED alarm light, on all except 1L models, flashes for abnormal events, including power interruptions, improper power supply, when collector temperature rises above -40°C, and required vacuum pump service
• Vacuum control valve, on all except 1L systems, maintains vacuum level
• For 220/240V 50Hz



Connectivity

• RS-232 port can be used to transmit data to a computer

Features

• Easy to service with retractable drain hoses
• Cabinets are white epoxy-coated steel with brushed stainless-steel front panels and blue accents
• Console models have removable front panels and are roomy enough to accommodate vacuum pump
• Benchtop models easily fit on laboratory benchtop to process light to moderate loads
• PTFE-coated collector chamber and coil for processes involving corrosive compounds are available6L models available with optional built-in shell freezer with stainless-steel bath, 12.5L x 5.5W x 7.5 in.H (30.5 x 14 x 19cm) for easier prefreezing

Specifications

• Certifications/Compliance: CAN/CSA C22.2, UL
• Plug Type: North America
• Includes: Shell freezer
• Width (Metric): 81.8 cm
• Height (Metric): 92.2 cm
• Depth (Metric): 71.1 cm
• Weight (Metric): 147 kg

• Capacity (Metric): 6 L
• Type: Console Freeze Dry System
• Width (English): 32.2 in.
• Height (English): 36.3 in.
• Depth (English): 28 in.
• Weight (English): 324 lb.
• Electrical Requirements: 115 V 60 Hz, 16 A
