Honeywell™ Miller™ Temporary Anchorage Connectors

A variety of durable temporary connectors

Catalog Number	Mfr. No.	Product Type
19-003-001	Honeywell™ 440/6FT	Cross Arm Chain
19-002-991	Honeywell™ 485/22INYL	Rebar hook anchor
19-002-994	Honeywell™ 4751/	Extension Hook
19-002-998	Honeywell™ 455/	Beam Clamp
19-002-995	Honeywell™ 475/	Extension pole and hook
19-002-993	Honeywell™ 4752/	Extension Pole

Description

440/6FT Cross-Arm Chain Anchor

• 1.8m (6 ft.) chain anchor
• Wraps around I-beams or other structures
• Ideal to use in environments where chemical, heat or welding splatter may occur

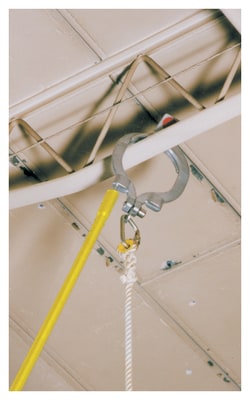

455/ Beam Clamp

• Steel anchor point can be attached to horizontal I-beams, S-beams or W-beams
• Swivel attachment ring
• Accommodates beams with a max. width of 31.8cm (12.5 in.)

460/ Large Anchor Bracket

• With anchorage bracket weldment, eyebolt, bolts, washers and lock nuts
• 475/ Extension Pole and Anchor Hook
  • 6m (20 ft.) fiberglass pole (475-2) and spring-loaded hook (475-1)
  • Installs fall arrest systems up to 6m (20 ft.) from ground level to angle iron, piping and related structures
• 485/22INYL Rebar Hook Anchor
  • Designed to facilitate anchoring to scaffolding, pipe or angle iron
  • Locking rebar hook with SofStop shock absorber and D-ring

Compliance

Meets all applicable OSHA, ANSI and CSA standards

Warranty and Services

Limited Lifetime

Specifications

• Certifications/Compliance: OSHA, ANSI, CSA
• Load Bearing Capacity (English): 400 lb.
• Load Bearing Capacity (Metric): 181.43 kg
