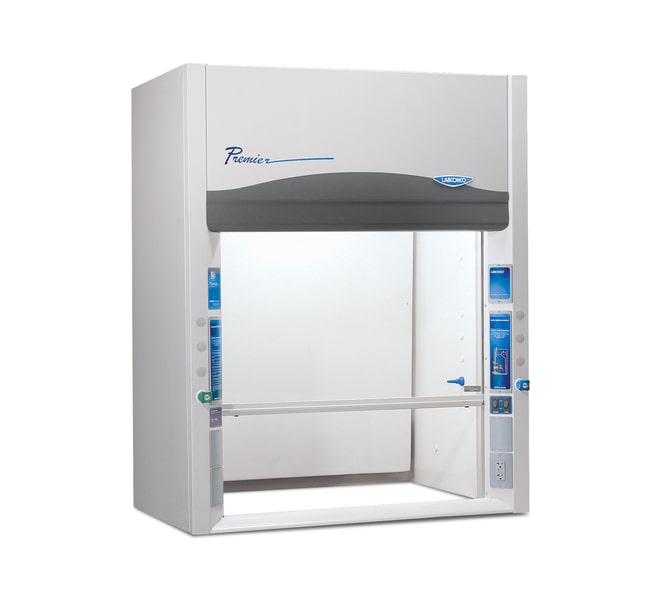

Labconco™ Protector™ Premier™ I-S™ Fume Hoods

High performance fume hoods with automated blower controls based on sash position for increased energy efficiency and safety. Molded one-piece fiberglass liner.

Catalog Number	Mfr. No.	Width (English)	Includes
16-317-234	Labconco™ 100406002	4 ft.	2 service fixtures and 1 electrical duplex
16-317-235	Labconco™ 100406021	4 ft.	2 service fixtures
16-317-236	Labconco™ 100506002	5 ft.	2 service fixtures and 1 electrical duplex
16-317-237	Labconco™ 100506021	5 ft.	2 service fixtures
16-317-238	Labconco™ 100606002	6 ft.	2 service fixtures and 1 electrical duplex
16-317-239	Labconco™ 100606021	6 ft.	2 service fixtures
16-317-240	Labconco™ 100806002	8 ft.	2 service fixtures and 2 electrical duplex
16-317-241	Labconco™ 100806021	8 ft.	2 service fixtures

Description

• High performance chemical fume hood
• Integrated sash sensors for blower speed control
• Factory-installed Guardian™ Digital Airflow Monitor
• One-piece molded fiberglass liner

Protector Premier I-S Laboratory Hoods incorporate a sleek interior with a molded one-piece fiberglass liner, the signature feature of Labconco's leading line of fume hoods since 1961. The one-piece liner of specially-formulated, fiberglass-reinforced polyester offers corrosion and fire resistance and easy clean up. Without seams, the interior has fewer points of deterioration for longer life.

Designed for use with Labconco's Intelli-Sense Multi-Speed Blowers, Protector Premier I-S Hoods feature integrated sash position blower controls. As the sash is raised or lowered, sensors alert the blower to change speeds to maintain a safe face velocity. That face velocity is displayed on the factory-installed Guardian™ Digital Airflow Monitor for users' peace of mind.

Protector Premier Hoods incorporate many containment-enhancing features including Clean-Sweep™ technology and the Eco-Foil™ air foil. Testing confirms the Protector Premier I-S Hood meets the SEFA-1 standard of a low velocity, high performance hood and may be operated as low as 60 fpm.

Intelli-Sense Multi-Speed Remote Blower (without control box), work surface, supporting base and ductwork are required (not included). Dedicated exhaust is required.

All models feature:

• By-pass airflow design
• Eco-Foil™ Air Foil with aerodynamic Clean-Sweep™ airflow openings
• Cord-Keeper™ Slots on left and right side of air foil
• Factory-installed Intelli-Sense Blower control box
• Factory-installed sash position activated blower speed switches
• Factory-installed Guardian™ Digital Airflow Monitor
• Glacier white powder-coated steel exterior
• One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E-84
• Tempered safety glass vertical-rising sash with powder-coated sash handle
• 37.5 in. (95.3 cm) high sightline from the work surface to header panel
• Pre-wired LED lighting with vapor-proof design and ADA-compliant light and blower switches. Lighting rated to 50,000 hours.
• Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
• Molded fiberglass 12.81 in. ID exhaust connection(s)

Specifications

• Product Type: Laboratory Fume Hood
• Lighting Type: LED
• Depth (English): 31.7 in.
• Description: By-pass airflow design

• Coating: Powder
• Material: Powder-coated Steel
• Depth (Metric): 80.5 cm
• Liner Material: Molded Fiberglass
