Reaction Kettles
Synthware™ Double-Walled Quartz Photochemical Immersion Well
Use with RC50 Nylon™ Bushing and a Viton™ O-ring to form a compression type seal with threaded vessels. Well does not have a joint, but offers a greaseless connection and can be adjusted to desired height.
Andwin Scientific Kettle Mantles for PYREX™ Reaction Kettles
Lower sections moldblown for breakage resistance
Chemglass Life Sciences 2L Reaction Vessel, Jacketed, 150mm Schott O-Ring Flange, GL-14 Inlet/Outlet, CG-511-02 Drain Valve
2L Reaction Vessel, Jacketed, 150mm Schott O-Ring Flange, GL-14 Inlet/Outlet, CG-511-02 Drain Valve. Similar to CG1924, but with our 0-20mm CG511 sidearm valve. All valves are designed to seal flush with the bottom of the flask avoiding the dead space normally associated with stopcock drains. This feature permits total mixing & draining of the contents of the reactor. The CG510 is recommended for solution based reactions while the CG911A and CG511 are recommended for reactions containing solids. Reaction vessel is constructed with a flange having a groove formed in the sealing surface of the flange. Flange is also ground to permit a greased seal with any lids CG1940 through CG1946. Supplied complete with two polypropylene hose connections and two screw caps(Polypropylene hose connections with a Viton rubber seal for working temperatures up to max +110°C.) For clamp see CG141 or CG141T. For o-ring see CG147.
Chemglass Life Sciences 3L Reaction Vessel, Jacketed, 150mm Schott O-Ring Flange, 3/4" Beaded Pipe Inlet/Outlet, CG-511-02 Drain Valve
3L Reaction Vessel, Jacketed, 150mm Schott O-Ring Flange, 3/4" Beaded Pipe Inlet/Outlet, CG-511-02 Drain Valve. Features: • Chemically Resistant Perfluoro O-Rings On Drain Valves• Graduation Scale On Both Sides Showing Approximate Volume• Sidearm on Lower Drain Valve Can Be Used With a Standard 1/2 or 3/4in TFE, PFA or PP Compression Fitting• All Vessels Are Serial Numbered• GL Thread Inlet/Outlets Are Supplied With Removable High Temperature PFA Hose Connections And PPS Screw Caps• 3/4in Beaded Pipe Inlet/Outlets Are For Use With CG-1968-70 Couplings, CG-1969-A-03 Or CG-1964-42 Adapters
Chemglass Life Sciences 8-Neck PTFE Reaction Vessel Lid, 200mm, 29/42 Outer, 19mm Lasentec, 104mm Overall Height
8-Neck PTFE Reaction Vessel Lid, 200mm, 29/42 Outer, 19mm Lasentec, 104mm Overall Height. Reaction vessel lid is constructed entirely of PTFE. Low-form lid has eight openings: center neck 1 female NPT for PTFE standard taper adapter, side necks 1-1/2 female NPT, vertical for PTFE standard taper adapters, side neck 1 female NPT with 10 X 10 compound angle for PTFE compression fitting used with Lasentec Probe, side neck 1-1/2 female NPT, vertical for PTFE standard taper adapter, side neck 1-1/2 female NPT angled 10 for powder addition, and side necks 1/2 female NPT. Lid is supplied complete with listed PTFE standard taper adapters for center and vertical side necks, 19mm or 25mm PTFE compression fitting for 10 X 10 compound angle side neck, PTFE standard taper adapter for angled powder addition port, and two 1/2 male NPT PTFE plugs. For clamp see CG-141 or CG-141-T. For o-ring see CG-147.Lasentec is a registered trademark of Mettler Toledo.
Chemglass Life Sciences 50L Process Reactor, Complete, Air Motor, 87.3" OAH with Motor, 18.1" Clearance Below Valve
50L Process Reactor, Complete, Air Motor, 87.3" OAH with Motor, 18.1" Clearance Below Valve.Features:• Motor Mount Arm Can Unlock And Swing Out Giving Greater Access To Reactor• Smaller Footprint Support Frame With Oversized Rugged S.S. Uprights And Heavy Duty PTFE Coated Aluminum Fittings• Electric And XP Motor Has Separate Controller With Digital Display• Reactor Support Plate Holds Reactor Securely And Allows Easy Installation/Removal Of Reactor By One Person• Lower Safety Ring And Lower Mantle Base• Heavy Duty Lockable Casters• Electric Or Air Motor Optional XP Motor Available• Open Frame Design Provides Excellent Accessibility• 7-Neck Lid With Large Powder Addition Port• Ridge Clamp Accepts 1/2” Rod And Adds Additional Support For Large Glassware• #304 S.S. Cooling Coil PTFE Coated • Digital Temperature Controller• Zero Dead Space Detachable Drain Valve Has Knob With Laser Etched Directional Arrows For Open And Close
Wilmad Labglass Cylindrical Reaction Vessel; O-Ring Flange 3000L
Reaction vessel has a tooled flat flange with an O-ring groove for a greaseless seal. Suitable for vacuum operation. Wall thickness is uniform throughout flask.
Chemglass Life Sciences 100mL Storage Vessel, Cajon, Airfree, Schlenk, 0-8mm Valve, 235mm OAH
100mL Storage Vessel, Cajon, Airfree, Schlenk, 0-8mm Valve, 235mm OAH. Storage vessel sidearm has a 9mm OD tubulation for use with 3/8" Cajon connections. Chem-Vac™ Chem-Cap valve is used to control gas or liquid flow into the vessel.
Chemglass Life Sciences 10000mL Reaction Vessel, Cylindrical, Jacketed, 200mm Schott O-Ring Flange, 200mm I.D. x 435mm Height, Hose Conn. Thread Size GL-18
10000mL Reaction Vessel, Cylindrical, Jacketed, 200mm Schott O-Ring Flange, 200mm I.D. x 435mm Height, Hose Conn. Thread Size GL-18. Cylindrical, jacketed, reaction vessel constructed with a flange having a groove formed in the sealing surface of the flange. Flange is also ground to permit a greased seal with any of the lids CG-1940 through CG-1946. Cooling jacket is equipped with two removable hose connections to reduce the risk of injury while attaching or detaching flexible tubing. Supplied complete with two polypropylene hose connections and two screw caps of the listed size. For clamp see CG-141 or CG-141-T. For o-ring see CG-147.PLEASE NOTE: HIGH TEMPERATURE HOSE CONNECTIONS AND SCREW CAPS ARE AVAILABLE. SEE CG-195-H AND CG-198-H.
Chemglass Life Sciences #316 Stainless Steel Lid Only, 300mm
#316 Stainless Steel Lid Only, 300mm. Stainless steel, 300mm, 7 openings. Component of 1968B01.
Chemglass Life Sciences Reaction Vessel Lid Complete, Stainless Steel, 400mm, 7-Neck, Large Addition Port
Reaction Vessel Lid Complete, SS, 400mm, 7-Neck, Large Addition Port. Reaction vessel lid is constructed of 1/4 thick #316 Stainless Steel with a 1/8 thick PTFE gasket underneath. The only material exposed to the reaction is PTFE. Lid has seven openings that accept 45/50 outer PTFE inserts. One neck is a bulk addition port is 80mm reaction flange with o-ring groove. Inserts are secured to the lid using glass filed PTFE nuts. Lid can be used on any of Chemglass's CG-1968-W style reactors. The flat design reduces the height over the standard glass reaction vessel lids.
Ace Glass, Inc. Head, 4in Duran O-ring groove flange, 34/45 center, (3)24/40 side necks
2000mL reaction kettle head with 4 Duran o-ring groove flange, a 34/45 center neck, and (3) 24/40 side necks.
Ace Glass, Inc. Flask, reaction, 1L, jacketed, 137mm O-ring groove flat flange, 140mm bottom OD x 165mm H, 28/15 O-ring ball joints on jacket inlet/outlet
1L jacketed reaction flask with round bottom and 28/15 o-ring ball joints on jacket inlet/outlet. 137mm o-ring groove flat flange is used to seal a head, instead of a flat gasket. Jacketed for temperature control of ingredients. Supplied with CAPFE o-rings. Dimensions: 140mm bottom O.D. x 165mm H.

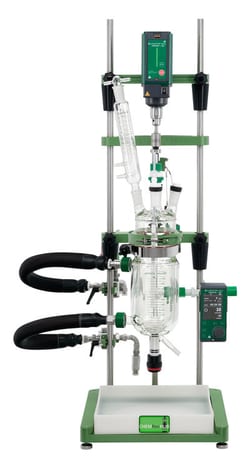

Chemglass Life Sciences 1L ChemRxnHub Process System Complete with Glassware, Stand, and OHS 100 Advance Motor
ChemRxnHub™ process systems are complete with benchtop stand, overhead stirrer and glassware. Available with the optional manifold connection and heat transfer fluid draining system. The unique design of the ChemRxnHub™ support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most benchtop hoods.
Bellco Glass, Inc. Manufactured from type 1 class a Borosilicate glass. Includes 4 or 6 polypropylene blue screw caps 45mm and pouring rings, also 1 polypropylene blue cap 100mm for the center. 100mm center neck Graduations: 8-36l Sidearms: 45mm
Manufactured from type 1 class a Borosilicate glass. Includes 4 or 6 polypropylene blue screw caps 45mm and pouring rings, also 1 polypropylene blue cap 100mm for the center. 100mm center neck Graduations: 8-36l Sidearms: 45mm
