Filling Funnels
Funnels have a conical shape and short, wide stems for filling bottles or transferring powders. Filling funnels typically have a 60-degree angle that permits accurate fitting of filter paper, as well as vents or flutes to reduce vacuum formation and decrease filtering time.
Filling Funnel Materials
Glass
Borosilicate glass filling funnels include a strong beaded edge that resists chipping. Their resistant structure allows for the use of various reagents and chemicals. They also have a high resistance to thermal and mechanical shock and chemical attack. Funnels made from flint glass and soda-lime glass are also available.
Plastic

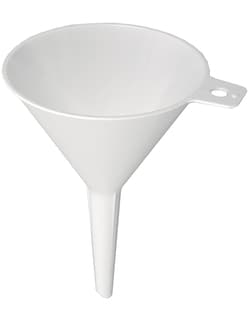

Plastic filling funnels may be disposable or reusable and are made from polystyrene, polypropylene, polyethylene (LDPE or HDPE), or other resins.
Metal
Metal funnels are durable and reusable and may be constructed from a variety of metals. Each has characteristics that facilitate a particular use and purpose.
Filling funnels are available in a range of sizes and dimensions. They are typically sized based on capacity — the volume they can contain. Dimensionally, they may vary in top diameter, stem length, stem diameter, bowl angle, bowl capacity, and overall length. Filling funnels may be classified as Class A or Class B based on tolerances specified by ASTM and other standards.
What Different Types of Glass Funnels Are Available?
• General-purpose glass filling funnels for channeling, filling, and decanting liquids
• Short-stem or powder funnels to prevent the stem from clogging during the handling of fine powders
• Long-stem analytical funnels, often used with filter papers
• Fluted funnels to help reduce vacuums and facilitate more rapid filtration
• Büchner, glass-filtering, or vacuum filtration funnels made with an integral sintered glass disc for filtering precipitates or particulates without the need for filter papers. The sintered discs come in a range of pore sizes, typically from 10 to 40 μm
• Pear-shaped separatory funnels (separating or separation funnels) fitted with a stopper and a PTFE or glass stopcock for separating layered immiscible liquids in chemistry applications
• Weighing funnels to function as weighing dishes and to transfer weighed solids to other vessels
Shimadzu Scientific Instruments SHIMADZU SCIENTIFIC INS (3P ONLY)
NC4030809 MARVELXACT SS 254UM X 150MM
Sklar Instruments Funnel, Sklar, Stainless Steel. This product is a 8-3/8 in. x 9-1/2 in. funnel with a 64 oz capacity. EA/1.
Funnel, Sklar, Stainless Steel. Sklar's Surgical Funnel features a hanging hook so it can easily be elevated above a patient's head when introduction of fluid is necessary as part of a surgical procedure. This product is a 8-3/8 in. x 9-1/2 in. funnel with a 64 oz capacity.
Chemglass Life Sciences 100mm Powder Funnel, 29/42 Inner Joint
100mm Powder Funnel, 29/42 Inner Joint. Useful for the introduction of solids or liquids into reactions under atmospheric conditions. Funnels have 60 side angle and a standard taper inner joint.
Chemglass Life Sciences Funnel, Powder, 75mm, 24/40 Outer
Funnel, Powder, 75mm, 24/40 Outer. Powder funnel is useful for the introduction of solids or liquids into reactions under atmospheric conditions. Funnels have 60 side angle and a standard taper outer joint.
Chemglass Life Sciences 100mm Powder Funnel, Offset, 29/42 Inner Joint, C to C Offset is 45mm
100mm Powder Funnel, Offset, 29/42 Inner Joint, C to C Offset is 45mm. Funnel has a lower stem made with an offset to permit use with multi-neck flasks.
Bellco Glass, Inc. Aseptic Fill Bell,50mm
Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. MADE IN THE USASpecifications:Type 1 Class A Borosilicate GlassDimensions: 49x100mmTubing Size: 1/2″2 per case
Bellco Glass, Inc. Aseptic Fill Bell,70mm
Manufactured from Type 1 Class A Borosilicate Glass. Ideal for use of filling other glass vessels. Receiving vessel is placed under bell to maintain aseptic conditions during filling. Attaches to reservoir with rubber tubing. MADE IN THE USASpecifications:Type 1 Class A Borosilicate GlassDimensions: 70x125mmTubing Size: 1/2″2 per case
California Pacific Lab & Consulting ECO FUNNEL 8 ECO FUNNEL WITH
NC3866205 ECO FUNNEL 8 ECO FUNNEL WITH
Foxx Life Sciences Autofil 2 Bottle Top Filter, Funnel Only, 1000 mL, 0.1 µm PES Membrane, Sterile, 12/CS
The Autofil 2 Bottle Top Vacuum Filter Funnel Only features 0.1um, 0.2um, or 0.45um PES membranes. Perfect for filtering FBS and other viscous solutions. The membrane is low protein binding and surfactant-free.
Features
Available in 250ml, 500ml and 1000ml. Funnel is compatible with GL 45 thread bottles
Bottle top Filter units include adapter for connecting to vacuum hose
Design includes the NEW EZLabpure™ ergonomic bottle shape with molded finger grip
GL 45 caps provides a convenient gripping surface
All units are sterile and manufactured from USP Class VI polystyrene in an ISO 13485 clean room
Foxx Life Sciences Autofil 2 Bottle Top Vacuum Filtration unit, Funnel Only, 1000 mL, 0.45 µm PES Membrane, Sterile, 12/CS
The Autofil 2 Bottle Top Vacuum Filter Funnel Only features 0.1um, 0.2um, or 0.45um PES membranes. Perfect for filtering FBS and other viscous solutions. The membrane is low protein binding and surfactant-free.
Features
Available in 250ml, 500ml and 1000ml. Funnel is compatible with GL 45 thread bottles
Bottle top Filter units include adapter for connecting to vacuum hose
Design includes the NEW EZLabpure™ ergonomic bottle shape with molded finger grip
GL 45 caps provides a convenient gripping surface
All units are sterile and manufactured from USP Class VI polystyrene in an ISO 13485 clean room
CALIFORNIA PACIFIC LAB & CONSULTING 8IN ECO FUNNEL SYS 4L CAP 1EA
NC3316222 8IN ECO FUNNEL SYS 4L CAP 1EA
California Pacific Lab & Consulting ECO FUNNEL 8 ECO FUNNEL WITH
NC3866206 ECO FUNNEL 8 ECO FUNNEL WITH
