Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Adapter Only, Distribution, 14/20 Joint
Adapter replacement part for the CG1276 series of cow type design distillation receivers. 14/20 Joint. Adapter only.
Chemglass Life Sciences Distilling Column, 29/42 Joint, 150mm, Vigreux
Distilling Column, 29/42 Joint, 150mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Distilling Head, 1000mL, Solvent, Modified, 24/40 Inner Joint On Take-Off
Distilling Head, 1000mL, Solvent, Modified, 24/40 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 24/40 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Dean-Stark, 14/20 Joint Size, Approx. 250mm Height x 80mm Width
Distilling Receiver, 10mL, Moisture Test, Dean-Stark, 14/20 Joint Size, Approx. 250mm Height x 80mm Width. Dean-Stark receiver used for determining the water content of various materials. Can be used with ASTM Method D-95 along with similar ASTM methods. The 10mL size has subdivisions of 0.1 from 0 to 2mL, and 0.2 from 2 to 10mL. The 25mL size has subdivisions of 0.1 from 0 to 2mL and 0.2 from 2 to 25mL.

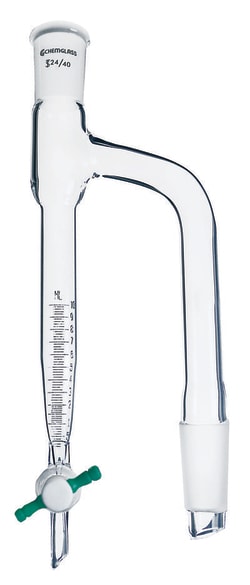

Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm Glass Stopcock, Approx. 275mm Height x 95mm Width. Barrett style distilling receiver used to determine the water content in petroleum or bituminous material. Receiver is made according to ASTM specifications, with the addition of the top outer standard taper joint and lower stopcock. The 2mL has sub-divisions of 0.02mL; the 5ml has subdivisions of 0.20mL; 10ml has subdivisions of 0.1mL; the 20mL has subdivisions of 0.2 from 0 to 3mL and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.

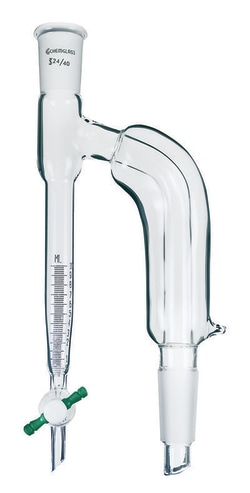

Chemglass Life Sciences Distilling Receiver, 20mL, Moisture Test, Barrett, Jacketed, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 325mm Height x 105mm Width
Distilling Receiver, 20mL, Moisture Test, Barrett, Jacketed, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 325mm Height x 105mm Width. Similar to CG-1261 but with the uptake tube vacuum jacketed to improve distillation performance. The jacket eliminates the possibility of condensation or recrystallization of distillate in the sidearm. The 5ml has subdivisions of 0.20ml; 10ml has subdivisions of 0.1ml; the 20ml has subdivisions of 0.2 from 0 to 3ml and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Saddles, Berl, 1000cc, Porcelain, Distilling Column, Approx. 1250 Pieces/Package
Saddles, Berl, 1000cc, Porcelain, Distilling Column, Approx. 1250 Pieces/Package. Porcelain berl saddles having an O.D. of 8mm. Ideal for vacuum distillation, absorption and extraction. Saddles provide a highly useable surface area, lower gas flow resistance and excellent internal distribution. Available in packages of 200cc and 1000cc boxes.
Chemglass Life Sciences Distillation Head, 250mL, Solvent, Modified, 24/40 Inner Joint On Take-Off
Distillation Head, 250mL, Solvent, Modified, 24/40 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 24/40 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Head, Short Path, Jacketed, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 105mm Width x 105mm Height
Distilling Head, Short Path, Jacketed, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 105mm Width x 105mm Height. Similar to CG-1239 but vacuum jacketed to improve efficiency. Available with Vigreux indentations in uptake tube to further increase the performance of the head. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accept a 2” immersion, 10/30 thermometer.
Chemglass Life Sciences Distilling Receiver, 5mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 205mm Height x 65mm Width
Distilling Receiver, 5mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 205mm Height x 65mm Width. Barrett style distilling receiver used to determine the water content in petroleum or bituminous material. Receiver is made according to ASTM specifications, with the addition of the top outer standard taper joint and lower stopcock. The 2mL has sub-divisions of 0.02mL; the 5ml has subdivisions of 0.20mL; 10ml has subdivisions of 0.1mL; the 20mL has subdivisions of 0.2 from 0 to 3mL and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 190mm Height x 75mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 14/20 Joint Size, 2mm PTFE Stopcock , Approx. 190mm Height x 75mm Width. Similar to CG-1261 but with the uptake tube vacuum jacketed to improve distillation performance. The jacket eliminates the possibility of condensation or recrystallization of distillate in the sidearm. The 5ml has subdivisions of 0.20ml; 10ml has subdivisions of 0.1ml; the 20ml has subdivisions of 0.2 from 0 to 3ml and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Receiver, 50mL, 24/40, Complete, Approx 413mm Height x 160mm Width
Distilling Receiver, 50mL, 24/40, Complete, Approx 413mm Height x 160mm Width. Radial style distillation receiver allows four flasks to be progressively filled. Upper vacuum adapter is bent at a 105º angle. Complete item consists of a vacuum adapter, distribution adapter, four of the listed size flasks with hooks and ten CG-110 stainless steel springs.

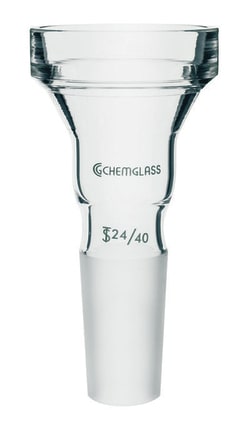

Chemglass Life Sciences Replacement Steam Duct for Buchi R-200/R-205 Rotary Evaporators, 29/42 Steam Duct
Replacement vapor (steam) tube adapter for Bchi R-200/205 rotary evaporators. Adapters have a 50mm OD top flange with a tapered interior to fit the Bchi sealing ring. Lower portion of the adapter has the listed standard taper inner joint. Each tube is supplied complete with corresponding size Keck clip.NOTE: ITEMS WILL REPLACE THE BUCHI PART NUMBERS AS LISTED. CHEMGLASS ITEMS ARE TO BE USED WITH THE KECK CLIP, NOT THE BUCHI COMBI-CLIP.

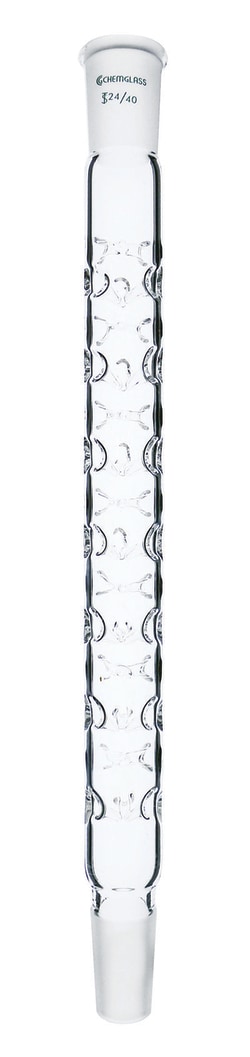

Chemglass Life Sciences Distilling Column, 24/40 Joint, 300mm, Vigreux
Distilling Column, 24/40 Joint, 300mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Distilling Head, 24/40 Joint Size, 250mm Condenser Length, Approx. 165mm Height x 420mm Width
Distilling Head, 24/40 Joint Size, 250mm Condenser Length, Approx. 165mm Height x 420mm Width. Simple distillation head with a condenser sealed to the adapter at a 75º angle. The sidearm is sealed at a height for use with a 1” immersion thermometer. The 24/40 and 29/42 sizes are made to accept a 10/30, 3” immersion thermometer. The inner drip tip joint on the condenser and inner joint on the uptake tube are the same size.
