Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?

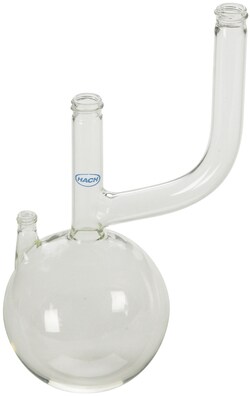

Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Ace Glass, Inc. Distillation system, alginates assay
Distillation system, alginates assay. The system includes a metering valve with flow meter tube set, 250ml flask and mantle, reflux condenser with u-tube and hose connection adapters and a 250ml gas washing bottle. 5/16in ID Vinyl tubing.
Ace Glass, Inc. 24/40 10mL Dean & Stark Moisture Test Receiver
24/40 10mL Dean & Stark Moisture Test Receiver with return line to allow excess solvent to return to the boiling flask. Suitable for ASTM D 95 and E 123.
Chemglass Life Sciences 48mL HW Pressure Vessel, Cylindrical, #15 Internal Thread, Complete, 38mm O.D. x 114mm Length, Bushing Size/15
48mL Heavy Wall Pressure Vessel, Cylindrical, #15 Internal Thread, Complete, 38mm O.D. x 114mm Length, Bushing Size/15. Heavy wall pressure vessels have an internal thread for use with PTFE bushings as pressure seals. The design allows hand tightening/loosening for easy access into the vessel. O-ring is positioned on the bushing above the thread for improved sealing. Supplied complete with vessel, PTFE bushing & Viton o-ring. Optional Perfluoro o-ring has the chemical resistance & service temperature range similar to Kalrez 4079. See CG-362, CG-364, and CG-366 for optional PTFE Bushings.IMPORTANT NOTICE: ALL CHEMGLASS PRESSURE VESSELS ARE TESTED AT 150 PSI, OR APPROX TWO AND ONE-HALF TIMES THEIR RECOMMENDED WORKING PRESSURE. HOWEVER, CHEMGLASS DOES NOT GUARANTEE THE VESSEL FROM BREAKING UNDER PRESSURE, DUE TO THE NATURE OF MATERIAL AND CONDITIONS BEYOND OUR CONTROL. CHEMGLASS RECOMMENDS THE USE OF SAFETY SHIELDS AND/OR OTHER SAFETY EQUIPMENT.
Chemglass Life Sciences Reaction Vessel Lid, 4-Neck, 29/42 Center Neck, 3-24/40 Side Necks, 100mm Schott Flange
Reaction Vessel Lid, 4-Neck, 29/42 Center Neck, 3-24/40 Side Necks, 100mm Schott Flange. Four neck vessel lid to fit CG-1920 through CG-1936 vessels. Lid has a flat ground surface allowing it to be greased or used with an o-ring. Note: Four neck lids are available with joint sizes and configurations other than those listed. Please call for details.
Ace Glass, Inc. 24/40 30.5cm distillation column
30.5cm Hemple distillation column with 24/40 standard taper joints, and indentations to support packing. Length in centimeters refers to the length from the packing support to the bottom of the outer ground joint.
Chemglass Life Sciences Distillation Head, 250mL, Solvent, Modified, 14/20 Inner Joint On Take-Off
Distillation Head, 250mL, Solvent, Modified, 14/20 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 14/20 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Head, Short Path, Jacketed, 14/20 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 200mm Width x 150mm Height
Distilling Head, Short Path, Jacketed, 14/20 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 200mm Width x 150mm Height. Similar to CG-1239 but vacuum jacketed to improve efficiency. Available with Vigreux indentations in uptake tube to further increase the performance of the head. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accept a 2” immersion, 10/30 thermometer.
Chemglass Life Sciences Distilling Column, 14/20 Joint, 10 x 130mm, Hemple
Distilling Adapter, Double, 10° Angled Side Neck, 24/40 Joint, 6mm PTFE Stopcock, 1/2" Swagelok. Adapter is designed for use with flasks or reaction vessel lids that have a 10° angled side neck. Adapter has a lower inner joint and two top outer joints. Lower stopcock is a 6mm PTFE stopcock with a 1/2” or 3/4” OD distillate takeoff for use with a compression fitting and TFE tubing. PLEASE NOTE: ADAPTER CAN BE USED WITH COMPOUND ANGLED SIDE NECKS.
Chemglass Life Sciences Distilling Column, Water Jacketed, 24/40 Joint, 200mm
Distilling Column, Water Jacketed, 24/40 Joint, 200mm. Jacketed distilling column has indentations on the inner tube to support packing material. The jacket allows the column to be used as a condenser. Column has a top outer and lower inner standard taper joint. Available in joint sizes other than those listed. All sizes have an I.D. of approximately 10mm.
Chemglass Life Sciences Distilling Column, 24/40 Joint, 300mm, Vigreux
Distilling Column, 24/40 Joint, 300mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Hickman Still Head, 14/10-14/20 Joint Size, Minum-Ware
Hickman Still Head, 14/10-14/20 Joint Size, Minum-Ware.
Chemglass Life Sciences Adapter, Distillation, 75°, 29/42 Inner Joints, 10/30 Thermometer Joint For 75mm Immersion
Adapter, Distillation, 75¿, 29/42 Inner Joints, 10/30 Thermometer Joint For 75mm Immersion. Adapter has a standard taper outer joint at the top of the main tube for use with jointed thermometers. The 10/18 size is used with 10/18, 25mm immersion thermometers while the 10/30 is for use with 10/30, 75mm immersion thermometers. With inner joints on the bottom and sidearm at a 75¿ angle to one another.
