Stoelting™ Lab Standard™ Stereotaxic Instrument for Rats

Classic Lab Standard™ includes a 100 micron 3-axes, left-hand manipulator arm, rat adaptor, traditional (18°) ear bars, and corner clamp probe holder. Available as dual, ultra-precise, digital or motorized.

Catalog Number	Mfr. No.	Model
10-000-133	Stoelting™ 51600	Lab Standard for Rats

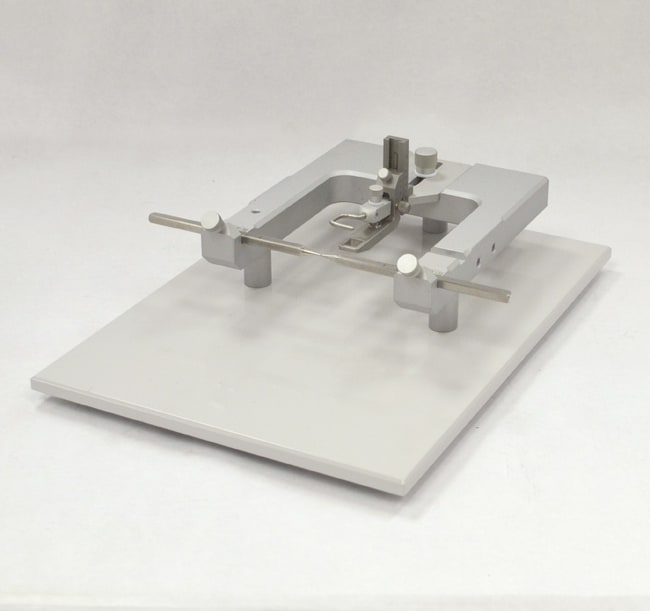

10-000-134	Stoelting™ 51601	Lab Standard Stereotaxic Instrument, Rat, Base only
10-000-136	Stoelting™ 51603	Dual Lab Standard Stereotaxic Instrument, Rat
10-000-173	Stoelting™ 51650	Lab Standard Stereotaxic Inst., Rat (non-rupture ear bars)
10-000-174	Stoelting™ 51653	Dual Lab Standard Stereotaxic, Rat (non-rupture ear bars)
10-000-188	Stoelting™ 51700	Motorized Lab Standard Stereotaxic Inst., Rat, 18 deg.
10-000-206	Stoelting™ 51750	Motorized Lab Standard Stereotaxic Inst., Rat, 45 deg.
10-000-207	Stoelting™ 51753	Motorized Dual Lab Standard Stereotaxic, Rat

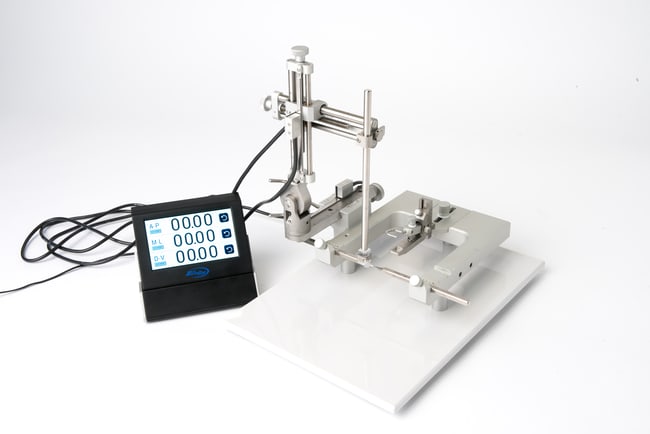

10-000-230	Stoelting™ 51900	Digital Lab Standard Stereotaxic, Rat

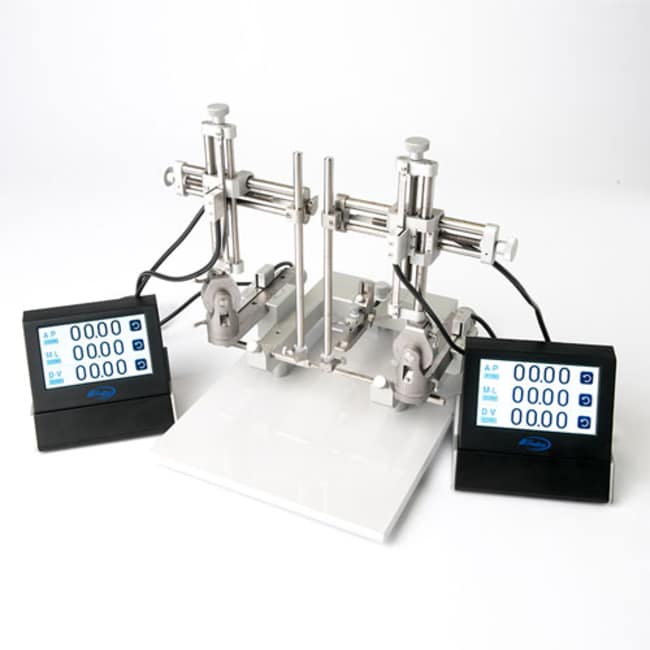

10-000-231	Stoelting™ 51903	Digital Dual Lab Standard Stereotaxic, Rat

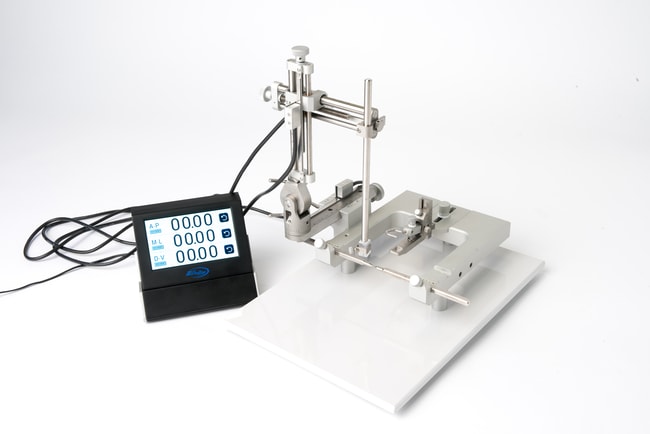

10-000-238	Stoelting™ 51950	Digital Lab Standard Stereotaxic, Rat (non-rupture ear bars)
10-000-239	Stoelting™ 51953	Digital Dual Lab Standard, Rat (non-rupture ear bars)

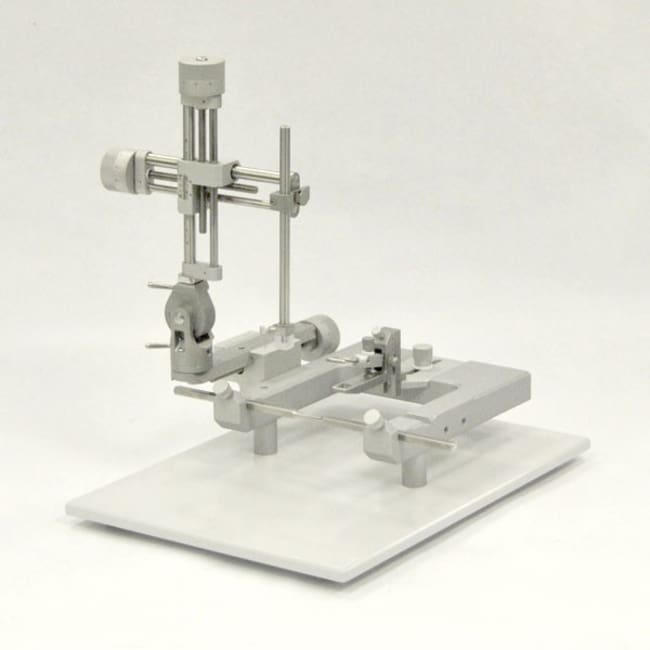

10-000-394	Stoelting™ 51600U	Ultra Precise Lab Standard, Rat

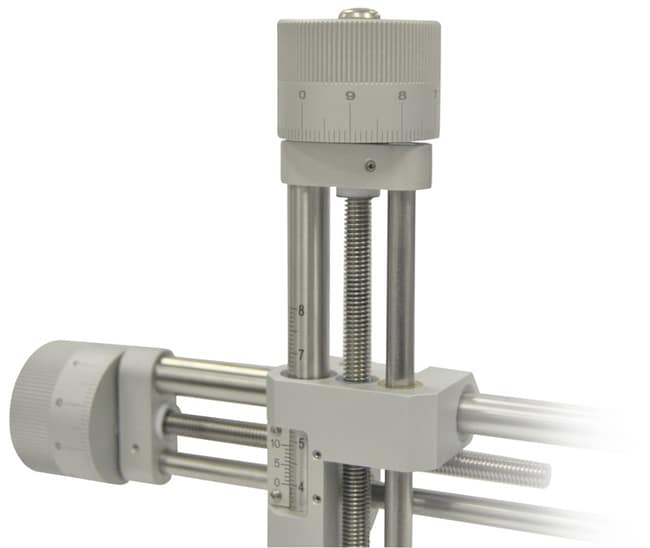

10-000-396	Stoelting™ 51603U	Ultra Precise Dual Lab Standard, Rat
10-000-404	Stoelting™ 51650U	Ultra Precise Lab Standard, Nontraumatic Ear Bars, Rat
10-000-405	Stoelting™ 51653U	Ultra Precise Dual Lab Standard, Nontraumatic Ear Bars, Rat
10-000-418	Stoelting™ 51900U	Ultra Precise Digital Lab Standard, Rat
10-000-420	Stoelting™ 51903U	Ultra Precise Dual Digital Lab Standard, Rat

Description

• Large, easy to read vernier scales Scales are laser engraved — accurate to 100 microns
• Triple lead screws for fast positioning 80 mm of vertical, lateral and anterior-posterior travel
• Absolute lock at 90° (vertical)
• Brass bushings in manipulator arm permit electrical grounding
• Accessories available for use with a wide variety of small animals
• Adaptors available for use with mice, neonatal rats, birds and other species
• Gas anesthesia compatible
• Easily cleaned durable surface
• Warmer ready base compatible with Stoelting Rodent Warmer System
• Versatile Positioning
• Manipulator arm controls medial-lateral and ventral-dorsal using exclusive triple lead screws for faster positioning, and anterior-posterior movement via dovetail slide movement, with 80mm of travel possible in each direction.
• Universal joint allows the researcher to change the angle of the probe up to 90° in either the anterior-posterior or mediallateral planes.
• Improved locking mechanism on the Lab Standard™ will hold any angle position without slipping and provides an absolute lock at 90° vertical.
• Easily-Read Scales
  • Oriented to be easily read from the open end of the U
  • Numerals are large and easy to read.
  • Scale lines are laser engraved, to allow the finest possible permanent marking of scales on all 3 axes.
  • Precise alignment with facing vernier scales gives accurate resolution to 100 microns.
• Smooth, Consistent Movements - Triple-lead screws allow smooth consistent movements with the fastest positioning possible.
• Warmer ready base
• Base Plates are designed to be integrated with the Stoelting Rodent Warmer System (sold separately) and are used to maintain body temperature throughout surgical procedures.
• Thermal heating pads are embedded into base plates to avoid cross contamination with easy clean-up and maintain a sterile environment during stereotaxic surgery.
• Can be used as a general warming system or with a rectal thermal probe (sold separately) for homeothermic regulation.

Specifications

• For Use With (Application): Neuroscience
• Animal: Rat
