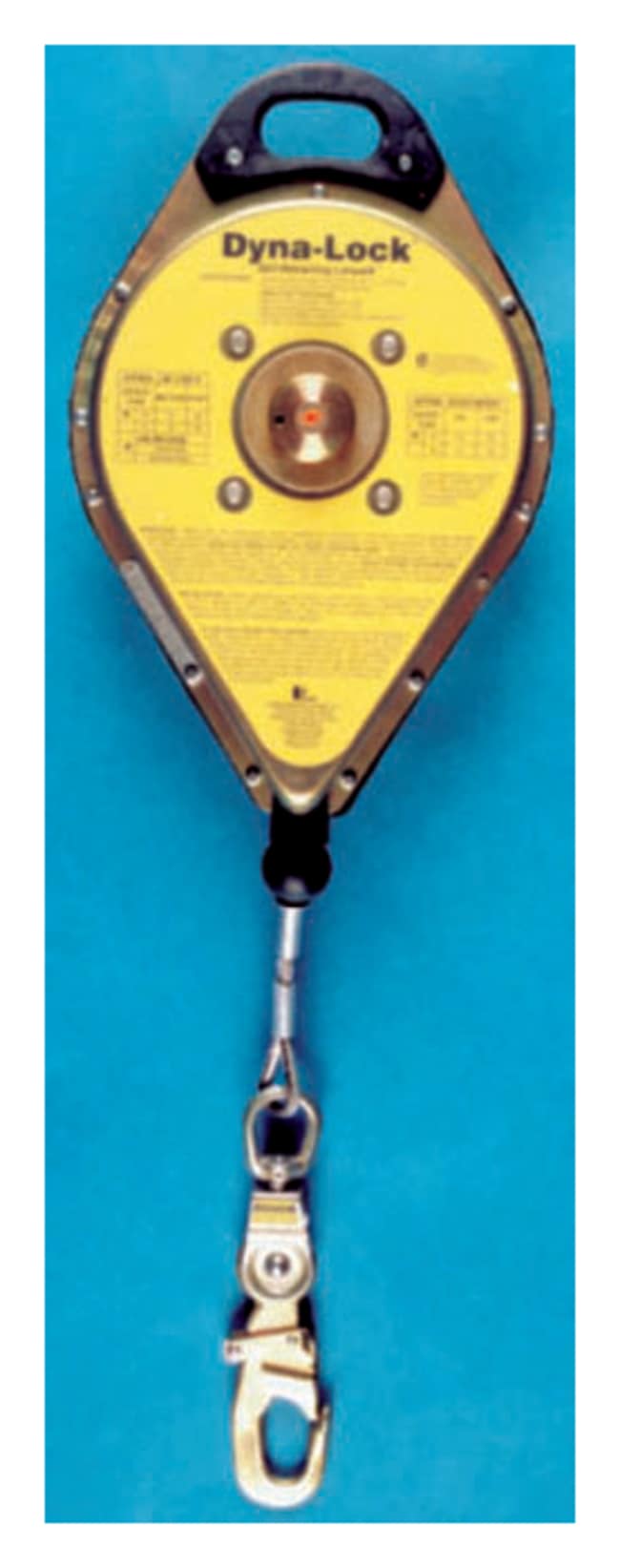

MSA™ FP Dyna-Lock™ Self-Retracting Lanyards

Automatically limits fall distance and fall arrest forces

Catalog Number	Mfr. No.	Length (English)	Length (Metric)	Material
19-818-267	MSA™ 506203	30 ft.	9.14 m	Stainless Steel Wire Rope
18-999-4701	MSA™ 506204	50 ft.	15.24 m	Galvanized Wire Rope
19-818-268	MSA™ 506205	50 ft.	15.24 m	Stainless Steel Wire Rope
19-818-269	MSA™ 506207	70 ft.	21.33 m	Stainless Steel Wire Rope

Description

Fast-acting fall arrester limits injury yet allows freedom of movement. Will function in any orientation, and may be mounted overhead.

• 20 ft. (6.1m) stainless-steel line resists corrosion and abrasion
• Automatically pays out and retracts into the housing
• Rugged all-steel construction is sealed against environmental contamination, increasing reliability
• Three continuously moving, independent locking pawls will engage—even in freezing and icy conditions
• With a 4.5 foot-per-second locking speed, normal worker movement progresses smoothly
• Unit will lock up and arrest a fall within 24 in. (61cm)
• Built-in shock absorber limits fall arrest forces to under 900 lb. (408kg)
• Corrosion-resistant, self-closing, self-locking steel snap hook on a swivel mount reduces line twisting
• Load indicator on the snap hook deploys on impact

No factory recertification is required unless unit is involved in a fall.

Order Info

Maximum work load: 400 lb. (181kg).

Compliance

Meets ANSI™ Z359.1, A10.32, and all applicable OSHA standards.

Specifications

• Certifications/Compliance: Meets ANSI A10.32, ANSI Z359.1 , and all applicable OSHA standards.
• Connector Types: Dyna-Lock
• Load Bearing Capacity (English): 400 lb.
