Beakers
Glass beakers can be heated to much higher temperatures than the plastic counterparts, while offering higher clarity for content visibility and measuring. Glass beakers feature uniform sidewalls and bottom thicknesses with a flat bottom and a beak, or small spout, for easier pouring. Glass beakers may have graduated markings on their side that are accurate within 10 percent, though a graduated cylinder or volumetric flask is recommended for precise volume measurements.
Laboratory are available in a range of materials and in sizes from 10 mL to 6 L. Although glass beakers are common, beakers are also made from a variety of plastic resins (PMP, polystyrene, polypropylene, PFA, polymethylpentene, HDPE, ETFE, PTFE, and more). You may also find beakers made from stainless steel, quartz, and carbon.
A variety of beaker types are available:

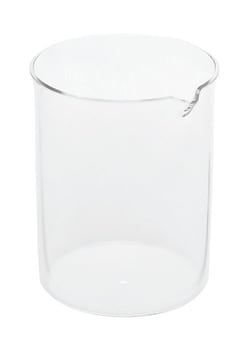

- Griffin or Low Form: Shorter versions, with or without pouring lips and made of standard weight or heavy-duty borosilicate glass or polypropylene plastic
- Berzelius or Tall Form: Taller and narrower than Griffin beakers, but with similar characteristics
- Pharmaceutical: Taller and more narrow, these beakers are usually graduated in both milliliters and ounces and may have double pouring spouts
- Tri-Cornered: Plastic, disposable, and stackable, these beakers feature a triangular top opening that offers three dripless pouring spouts
- Handled: Glass beakers can have attachable handles and plastic beakers may have molded-in handles; larger handled beakers with spouts may be called pitchers
- Colored Markings: Most beakers have areas on the side suitable for writing; these marking spots are also available in white or your choice of colors
Sigma Aldrich Fine Chemicals Biosciences Disposable beakers capacit
Translucent PP with three dripless pouring spoutsMolded graduationsflat bottoms keep magnetic stir bars centeredAutoclavable
Cole-Parmer Stainless-steel Griffin-style beaker with easy-pour rim, 125 mL
Cole-Parmer Stainless-steel Griffin-style beaker with easy-pour rim, 125 mL, Get durable, economical mixing capabilitiesSturdy beakers for general stirring or measuring of solutionsBeaker features a 125 mL capacity
Ace Glass, Inc. 75L CYL,JKTD,FLASK,BP I/O
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
Ace Glass, Inc. 50L,JKTD FLASK,400MM,3in BP
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
Chemglass Life Sciences Beaker, Quartz, 100mL, 62mm OAH X 51mm OD
Beaker, Quartz, 100mL, 62mm OAH X 51mm OD. Low form beaker made of quartz. Non-graduated with pouring spout. Beaker can be used at temperatures to 1000°C.
Ace Glass, Inc. 150L CYL,JKTD,FLASK,BP I/O
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
Consolidated Plastics 250 mL Polypropylene Disposable BeakerQuantity per case: 10 packages of 50
Polypropylene Plastic BeakersTranslucent plastic beakers are resistant to strong acids and bases, organic solvents, and commonly used laboratory reagents. Autoclavable beakers have excellent temperature resistance (250oF). The beakers are molded with a special "dripless" lip and have excellent clarity.
Chemglass Life Sciences Chemglass Griffin Low-Form Beaker, 20 mL, Graduated (CG-8048-20)
Low-form (Griffin) 20 mL beaker made from borosilicate (Pyrex) glass for routine laboratory mixing, heating, and pouring. The wide mouth and spout allow easy pouring and access for stirring, and the clear graduations provide approximate volume measurement.
- Borosilicate glass construction for thermal and chemical resistance.
- Low-form Griffin shape with pouring spout for easy pouring and stirring access.
- Graduated scale for approximate volume measurement (visible graduations approx. 5-15 mL).
- Compact dimensions for small-volume tasks (approx. 40 mm height, 32 mm outer diameter).
- Suitable for mixing, heating, and routine laboratory use.
Ace Glass, Inc. 50L CYL,JKTD,FLASK,3in BP
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
Ace Glass, Inc. 10L CYL,JKTD,FLASK,BP I/O
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
Ace Glass, Inc. 20L CYL,JKTD,FLASK,BP I/O
Jacketed, cylindrical kilo scale reaction flasks featuring removable flush seal valves, beaded pipe jacket inlet/outlets and bottom drain. Double-sided graduations facilitate left or right hand orientation. 10 to 20L flasks have 200mm Duran style o-ring grooved flanges while larger flasks have 300 to 400mm KF style flat flanges. All flask sizes thru 50 liter have all glass lower seals, larger flasks incorporate silicone lower seals. Low aspect ratio saves hood space. Temp range: -60°C to 200°C. Max jacket pressure: 8 psig.
