Addition Funnels
Sigma Aldrich Fine Chemicals Biosciences Ace addition funnel capaci1EA
Angled position makes manipulation of stopcock easier than conventional style. Leak-proof with complete drainage pressure-equalizing arm precise needle-valve adjustment and double-scale graduations.Threaded stopcock (0 to 3 mm orifice for funnels up to 250 mL and 0 to 5 mm orifice for funnels 500 mL and larger) with PTfE plug permits smooth needle-valve adjustment down to 0.1 mL/min flow rate. Double PTfE-ring seals prevent exposure of backup O-ring to corrosive liquids.

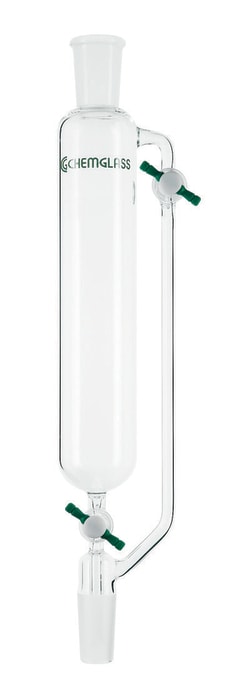

Chemglass Life Sciences 125mL Addition Funnel, 24/40 Joint Size, 2mm Stopcock, 325mm OAH
125mL Addition Funnel, 24/40 Joint Size, 2mm Stopcock, 325mm OAH. Cylindrical shape addition funnel with PTFE stopcocks. For replacement stoppers see CG-3000.
Ace Glass, Inc. Addition funnel, 9.5L, #25 Ace-Thred bottom, body only
9.5L addition/separatory funnel body for use where large volumes are needed. The cylindrical shape necks down to a #25 Ace-Thred.
Ace Glass, Inc. 50mL powder dispensing funnel vertical type
50mL vertical, compact, screw-feed powder dispensing funnel. Features a flexible PTFE screw thread, a #15 Ace-Thred at the top, and a large, 1-1/4 knob. Top side port is 14/20, bottom joint is 24/40. 9-1/2 overall height.
Ace Glass, Inc. 250mL 15mm equalizing add funnel
250mL, 15mm equalizing addition funnel with graduations for use with ACE pressure reactors. Funnel is heavy walled and features a #15 Ace-Thred at the top, bottom drip tip, pressure equalizing arm, and 0-3mm threaded PTFE stopcock plug.
Ace Glass, Inc. Funnel, addition, graduated, needle valve stopcock, 60mL, 14/20
Funnel, addition, graduated, needle valve stopcock, 60mL, 14/20
Ace Glass, Inc. Funnel, addition, graduated, metering stopcock, 25mL, 14/20
Funnel, addition, graduated, metering stopcock, 25mL, 14/20
Ace Glass, Inc. 500mL graduated cylindrical funnel, 24/40 top, 24/40 bottom
500mL graduated cylindrical funnel with 24/40 joints at top and bottom. Features include drip stem, and double scale graduations calibrated from stopcock. Drip stem does not extend beyond the joint, thereby eliminating a possible source of breakage. Includes PTFE stopcock plug.
Ace Glass, Inc. Funnel, addition, 200mL, 24/40 top & bottom, 0-3mm valve sidearm, 0-4mm valve bottom, No-Air
Funnel, addition, 200mL, 24/40 top & bottom, 0-3mm valve sidearm, 0-4mm valve bottom, No-Air
Ace Glass, Inc. Funnel, addition, 100mL, 24/40 top & bottom, 2mm glass stopcock sidearm, 0-4mm valve bottom, No-Air
Funnel, addition, 100mL, 24/40 top & bottom, 2mm glass stopcock sidearm, 0-4mm valve bottom, No-Air
Ace Glass, Inc. 100mL graduated funnel, #25 Ace-Thred bottom
100mL graduated funnel with a #25 Ace-Thred bottom. Funnel is part of the ACE borosilicate glass filtration apparatus that accomm ODates 25mm membrane filters.
Ace Glass, Inc. 3000mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
3000mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
Ace Glass, Inc. 125mL graduated cylindrical addition funnel
125mL graduated cylindrical addition funnel with a 24/40 standard taper stopper joint. Stopcock and Stopper not supplied.
Ace Glass, Inc. Funnel, addition, graduated, PTFE stopcock, 60mL, 14/20
60mL pressure equalizing addition funnel with standard PTFE stopcock. Features include 14/20 standard taper joints, protected drip-tip, equalizing arm, and double scale graduations calibrated from the stopcock.
