Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Vacuum Trap, Lower Body Only
Vacuum Trap, Lower Body Only. Replacement part for CG453201 vacuum trap.
Chemglass Life Sciences Harvest Tube, M10, for 5L Bio Reactors
Harvest Tube, M10, for 5L Bio Reactors. Harvest tubes mount into the outer M10 or M27 thread on the standard head plate. The design has the tapered tip within 2mm of the bottom of the bio reaction vessel to allow complete harvesting of all cells. The 15 Liter size has an M27 thread with 1/2” tubing for quicker harvest. Like-for-like replacement parts for Applikon Biotechnology and Broadley-James brands of bioreactors. Applikon is a registered trademark of Applikon Biotechnology, Inc. Broadley-James and Broadley-James Corporation are registered trademarks of Broadley-James Corporation.
Sterlitech Corporation Direct Contact Membrane Distillation Cell, Acrylic
Sterlitech’s “plug and play” DCMD test cell is a bench-scale cross/tangential flow test cell that mimics the conditions representative of a large-scale DCMD system while using minimal amounts of membrane or product.

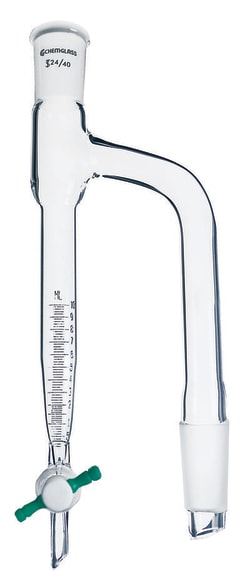

Chemglass Life Sciences Distilling Receiver, 50mL, Dean-Stark, Modified, 24/40 Joint Size, 4mm PTFE Stopcock, Approx. 355mm Height x 240mm Width
Distilling Receiver, 50mL, Dean-Stark, Modified, 24/40 Joint Size, 4mm PTFE Stopcock, Approx. 355mm Height x 240mm Width. This innovative and compact Dean-Stark receiver is designed for azeotropic distillations using solvents that are heavier than water. The solvent vapor travels through tube “A” to a condenser inserted in the top standard taper outer joint. Vapors are condensed and collected in the reservoir section. The layers separate and the heavier than water solvent overflows through tube “C” back into the distillation flask. The upper water layer is drained out intermittently using the 4mm PTFE stopcock “D”. Capacity of the lower reservoir is approx. 50mL.
Ace Glass, Inc. Trap, bump, drain holes, 250mL, 24/40 top, 24/40 bottom
250mL bump trap for use between a rotary evaporators steam tube and evaporator flask, preventing fluid from being drawn into the condenser. Trap has 24/40 top and bottom joints. Improved design incorporates two drain holes to expedite the return of solvent to the evaporator flask.
Chemglass Life Sciences Condenser, ''CR'' Assembly, For Rotary Evaporators, Plastic Coated
Condenser, ''CR'' Assembly, For Rotary Evaporators, Plastic Coated. Two piece cold trap style condenser for use with rotary evaporators. Condenser has a 45/40 lower inner drip joint, a 19/38 stopcock plug, and removable hose connections using GL-14 threads. Condenser is supplied complete with PTFE centering ring along with plastic caps and serrated hose connections. Plastic coating is on the outer portion of condenser only.
Chemglass Life Sciences 2mm Glass Plug Only, 12/30
2mm Glass Plug Only, 12/30. Stopcock has three sidearms sealed 90 apart. The solid glass plug has a "T" shaped bore so that any two or all three sidearms can be connected at one time. All sizes are supplied complete with a metal retaining device CG-423.
Chemglass Life Sciences 100mL Peptide Synthesis Vessel, Solid Phase, Coarse Frit, GL 25 Thread
100mL Peptide Synthesis Vessel, Solid Phase, Coarse Frit, GL 25 Thread. Solid phase peptide synthesis vessel having a medium or coarse porosity fritted glass resin support. Top of the vessel has a GL thread and is supplied complete with a PTFE lined PBT screw cap. Lower PTFE stopcock has a 2mm bore with the arm being 8mm O.D. Vessels are available in sizes other than those listed. Please call for details.
Chemglass Life Sciences 25mL Peptide Synthesis Vessel, Solid Phase, T-Bore PTFE Stpk, Vacuum, Medium Frit, GL 25 Thread
25mL Peptide Synthesis Vessel, Solid Phase, T-Bore PTFE Stpk, Vacuum, Medium Frit, GL 25 Thread. Similar to CG-1864, but with the addition of a lower standard taper inner joint to allow collection into a vessel having a 24/40 outer joint. MEDIUM porosity fritted glass resin support. A serrated hose connection is sealed on the inner joint for connection to a vacuum source. The “T”-Bore stopcock has an 8mm O.D. sidearm for connection to nitrogen, while the serrated hose connection has an O.D. of 8mm at the middle ring.
Chemglass Life Sciences 150mL HW Pressure Vessel, Round Bottom, #25 Internal Thread, Vessel Only, 63.5mm O.D. x 117mm Length, Bushing Size/25
150mL HW Pressure Vessel, Round Bottom, #25 Internal Thread, Vessel Only, 63.5mm O.D. x 117mm Length, Bushing Size/25. Heavy wall pressure vessels have an internal thread for use with PTFE bushings as pressure seals. The design allows hand tightening/loosening for easy access into the vessel. O-ring is positioned on the bushing above the thread for improved sealing. Supplied complete with vessel, PTFE bushing & Viton o-ring. Optional Perfluoro o-ring has the chemical resistance & service temperature range similar to Kalrez 4079. See CG-362, CG-364, and CG-366 for optional PTFE Bushings.IMPORTANT NOTICE: ALL CHEMGLASS PRESSURE VESSELS ARE TESTED AT 150 PSI, OR APPROX TWO AND ONE-HALF TIMES THEIR RECOMMENDED WORKING PRESSURE. HOWEVER, CHEMGLASS DOES NOT GUARANTEE THE VESSEL FROM BREAKING UNDER PRESSURE, DUE TO THE NATURE OF MATERIAL AND CONDITIONS BEYOND OUR CONTROL. CHEMGLASS RECOMMENDS THE USE OF SAFETY SHIELDS AND/OR OTHER SAFETY EQUIPMENT.
Chemglass Life Sciences Clamp, Two-Prong Extension, Medium, Dual Adjust, 9.02in OAL
Clamp, Two-Prong Extension, Medium, Dual Adjust, 8in OAL. Nickel-plated zinc alloy clamp has high tensile strength and corrosion resistance. Fully enclosed stainless steel springs provide smooth operation. Two-prong clamps are available in single and dual adjustment. The medium clamp has a 1 1/2¿ (38mm) maximum grip size with a 1/2¿ (13mm) O.D. extension arm. The large clamp has a 2 1/2¿ (64mm) maximum grip size with a 5/8¿ (16mm) O.D. extension arm. Complete with removable vinyl and fiberglass sleeve covers.
Chemglass Life Sciences Vacuum Trap, Complete, Trap Bottle 32mm OD x 200mm Overall Length, 10mm OD Side and Inner Tubes, 29/42 Jt.
Vacuum Trap, Complete, Trap Bottle 32mm OD x 200mm Overall Length, 10mm OD Side and Inner Tubes, 29/42 Jt. Two piece vacuum trap connected with an inner and outer joint to facilitate cleaning.
Chemglass Life Sciences Vacuum Trap, Body Only
Vacuum Trap, Body Only. Replacement part for CG452701 vacuum trap.
Chemglass Life Sciences Clamp, Chain, Small
Clamp, Chain, Small. Small size chain clamps to accommodate up to 6 1/2” (170mm) O.D. Quick slip-on chain connection has large, easy-to-turn adjusting knob. Extension arm has a length of 6” (150mm). Grip is vinyl coated.
