Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Condenser, High Efficiency, 730mm, 45/50 Joint, 600mm Jacket Length
Condenser, High Efficiency, 730mm, 45/50 Joint, 600mm Jacket Length. This unique design combines some of the best features for refluxing in a single condenser. Coolant, introduced into the upper hose connection, fills a large cold finger that is wrapped with coils. After the coolant travels through the coils, it enters the water jacket to maximize cooling surface along the vapor path. Angled take off joint is a standard taper 24/40, and the angled take off joint for the 45/50 size is a standard taper 29/42. Hose connections for the 24/40 size condenser are 10mm at the largest serration. Hose connections for the 45/50 size are 15mm at the largest serration.
Chemglass Life Sciences Condenser, Double Coil, 895cm², High Efficiency, 45/50 Joints, 400 x 80mm, GL-14 Screw Caps, Removable Hose Connections
Condenser, Double Coil, 895cm², High Efficiency, 45/50 Joints, 400 x 80mm, GL-14 Screw Caps, Removable Hose Connections. High efficiency double coil condenser, similar to a rotary evaporator condenser but with 45/50 joints. Condenser has an O.D. of 80mm and is 400mm overall length. Coolant connections are made using removable hose connections with GL-14 threads. Supplied complete with two polypropylene hose connections and caps.
Chemglass Life Sciences Distilling Column, 24/40 Joint, 250mm, Vacuum Jacketed
Distilling Column, 24/40 Joint, 250mm, Vacuum Jacketed. Hemple style distilling column, vacuum jacketed to improve performance. Indentations on the inner tube support the packing material. All sizes have an I.D. of approximately 10mm.
Chemglass Life Sciences Condenser, Reflux, 470mm, 29/42 Joint, Style B, 300mm Jacket Length
Condenser, Reflux, 470mm, 29/42 Joint, Style B, 300mm Jacket Length. Coil style reflux condenser with tightly wrapped coil providing maximum cooling. Excellent for use with high vapor pressure solvents. Condenser has a top outer standard taper joint and lower inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.
Chemglass Life Sciences Distilling Column, 19/22 Joint, 10 x 250mm, Hemple
Distilling Column, 19/22 Joint, 10 x 250mm, Hemple. Plain distillation column with a row of indentations to support column packing material. Column length listed is for the straight portion above the row of indentations and below the joint. Column has a standard taper top outer and lower inner joint.
Chemglass Life Sciences Distilling Column, Water Jacketed, 14/20 Joint, 200mm
Distilling Column, Water Jacketed, 14/20 Joint, 200mm. Jacketed distilling column has indentations on the inner tube to support packing material. The jacket allows the column to be used as a condenser. Column has a top outer and lower inner standard taper joint. Available in joint sizes other than those listed. All sizes have an I.D. of approximately 10mm.
Chemglass Life Sciences Condenser, High Efficiency, 590mm, 45/50 Joint, 465mm Jacket Length
Condenser, High Efficiency, 590mm, 45/50 Joint, 465mm Jacket Length. This unique design combines some of the best features for refluxing in a single condenser. Coolant, introduced into the upper hose connection, fills a large cold finger that is wrapped with coils. After the coolant travels through the coils, it enters the water jacket to maximize cooling surface along the vapor path. Angled take off joint is a standard taper 24/40, and the angled take off joint for the 45/50 size is a standard taper 29/42. Hose connections for the 24/40 size condenser are 10mm at the largest serration. Hose connections for the 45/50 size are 15mm at the largest serration.
Chemglass Life Sciences Condenser, 29/42 Joint, Reflux, 230 x 65mm
Condenser, 29/42 Joint, Reflux, 230 x 65mm. Compact high efficiency reflux condenser employs a double wall thimble shape bulb sealed into the outer jacket. Serrated hose connections for water connection extend through the outer bulb and have an O.D. of 10mm at the middle serration. While the overall height of this condenser is only 210-215mm, it has the efficiency of a standard 400mm Liebig or West condenser.
Chemglass Life Sciences Condenser, Reflux, 24/40 Joint, 210 x 64mm, GL-14 Screw Caps, Removable Hose Connections
Condenser, Reflux, 24/40 Joint, 210 x 64mm, GL-14 Screw Caps, Removable Hose Connections. Compact high efficiency reflux condenser similar to CG-1217 but with detachable hose connections. Connections are made of polypropylene and provide a safe and easy way of connecting and disconnecting flexible tubing to the condenser. Supplied complete with two GL open top screw caps and two straight polypropylene hose connections. Condensing area is the same as CG-1217.
Chemglass Life Sciences Distilling Column, 19/22 Joint, 170mm, Vigreux
Distilling Column, 19/22 Joint, 170mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Distilling Head, Short Path, 10/18 Thermometer Joint, 14/20 Lower Inner Joint, Approx. 110mm Width x 115mm Height
Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as column packing. Upper hose connections are for cooling lines while the lower connection is for vacuum. Available with Vigreux indentations to improve efficiency. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accepts a 2” immersion, 10/30 thermometer.

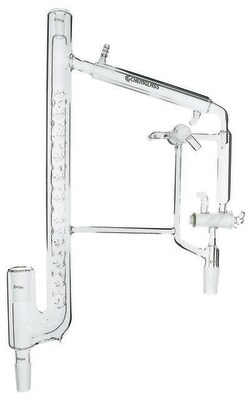

Chemglass Life Sciences Distilling Head, Vigreux, Jacketed, 10/18 Thermometer Joint,14/20 Joint Size, 2mm Glass Stopcock, Approx. 255mm Height x 310mm Width
Distilling Head, Vigreux, Jacketed, 10/18 Thermometer Joint,14/20 Joint Size, 2mm Glass Stopcock, Approx. 255mm Height x 310mm Width. Jacketed fractionation distilling head for use under vacuum. The 10/18 top outer joint is for a 1” immersion thermometer while the 10/30 joints are for a 2” immersion thermometer. The 24/40 joint size uses 4mm glass or PTFE stopcocks, and are positioned to permit changing of receiver without interruption of the distillation process. The 14/20 size uses 2mm bore glass or PTFE stopcocks.

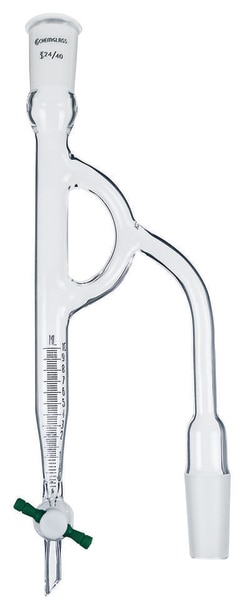

Chemglass Life Sciences Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 275mm Height x 95mm Width
Distilling Receiver, 10mL, Moisture Test, Barrett, 24/40 Joint Size, 2mm PTFE Stopcock, Approx. 275mm Height x 95mm Width. Barrett style distilling receiver used to determine the water content in petroleum or bituminous material. Receiver is made according to ASTM specifications, with the addition of the top outer standard taper joint and lower stopcock. The 2mL has sub-divisions of 0.02mL; the 5ml has subdivisions of 0.20mL; 10ml has subdivisions of 0.1mL; the 20mL has subdivisions of 0.2 from 0 to 3mL and 0.5 from 3 to 20mL. Available with glass or PTFE stopcocks.
Chemglass Life Sciences Distilling Column, 14/20 Joint, 130mm, Vigreux
Distilling Column, 14/20 Joint, 130mm, Vigreux. Vigreux style column with indentations that run the entire length of the column for improved vapor-liquid contact. Column length refers to the effective length, measured from the lowest to highest indent in the column. Column has a top outer and lower inner standard taper joint.
Chemglass Life Sciences Adapter Only, Distribution, 24/40 Joint
Adapter replacement part for the CG1276 series of cow type design distillation receivers. 24/40 Joint. Adapter only.
