Addition Funnels

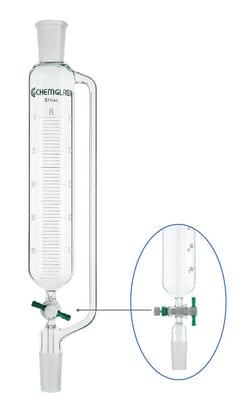

Chemglass Life Sciences 60mL Addition Funnel, Graduated, 24/40 Joint Size, 0-2mm PTFE Valve, 280mm OAH
60mL Addition Funnel, Graduated, 24/40 Joint Size, 0-2mm PTFE Valve, 280mm OAH. Cylindrical style graduated addition funnel has a threaded, grease-free extended tip valve. Design of all PTFE plug permits semi-needle valve action. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.

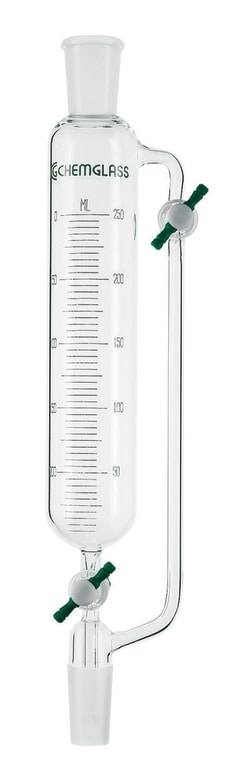

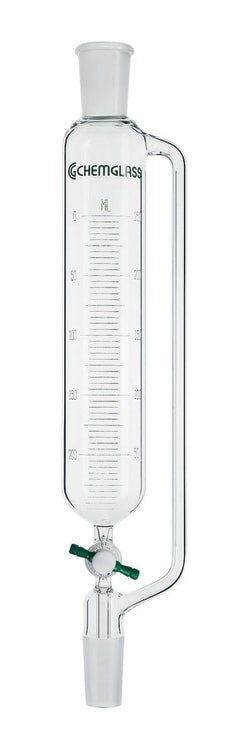

Chemglass Life Sciences 250mL Addition Funnel, 24/40 Joint Size, 2mm Glass Stpk, 375mm OAH
250mL Addition Funnel, 24/40 Joint Size, 2mm Glass Stopcock, 375mm OAH. Cylindrical style addition funnel with a standard taper top outer joint and lower inner joint, both being the same size. With pressure equalizing arm and glass stopcock. For replacement stoppers see CG-3000.
Ace Glass, Inc. Addition funnel, 19L, #25 Ace-Thred bottom, body only
19L addition/separatory funnel body for use where large volumes are needed. The cylindrical shape necks down to a #25 Ace-Thred.
Chemglass Life Sciences 10mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm Glass Stpk, 210mm OAH
10mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm Glass Stopcock, 210mm OAH. Cylindrical style addition funnel graduated with a double scale of numbers, one up from the stopcock and one down from the capacity line. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Ace Glass, Inc. Funnel, 500mL, jacketed, pressure equalizing, addition, 24/40joints, 4mm PTFE stopcock.
500mL jacketed pressure equalizing addition funnel with 24/40 top and bottom joints, and a 4mm PTFE stopcock. Jacket runs from shoulder at top of vessel to above the PTFE stopcock. Funnel has size D hose barbs for 3/8 ID tubing. Pressure equalizing arm runs from top of vessel to just below the PTFE stopcock. Graduations are in both ascending and descending volume. Bottom drip tip extends to the edge of the bottom inner joint. Top outer joint is reinforced for safety.
Chemglass Life Sciences 150mL Funnel, Cold Addition, 24/40 Top Outer, 24/40 Lower Inner, 370mm OAL, Airfree, Schlenk
150mL Funnel, Cold Addition, 24/40 Top Outer, 24/40 Lower Inner, 370mm OAL, Airfree, Schlenk. Used in the preparation of block copolymers or any chemical synthesis requiring high vacuum techniques. Funnel features a large diameter ring seal between the coolant container & the addition funnel body. The open cup design of the coolant chamber allows for easy addition of coolant, particularly dry ice chunks. Constructed using grease-free 0-4mm Chem-Vac™ Chem-Cap valves on the pressure equalizing arm & lower inner joint. Positioning of the valves permits the funnel contents to be kept under inert conditions prior to use or during loading. A 14/20 outer joint is sealed on the funnel body above the coolant chamber for syringe sampling of the funnel contents. Funnel has a drain tube on the rear of the coolant chamber. Designed & developed by William J. Swatos & Barton J. Schober, Department Of Materials Science & Engineering, Polymer Science Program, Penn State University
Chemglass Life Sciences 10mL Powder Addition Funnel, 24/40 Joint Size, Auger A
10mL Powder Addition Funnel, 24/40 Joint Size, Auger A. Facilitates the delivery of free-flowing, granular solids into reactions. Pressure equalizing arm is equipped with a vented stopper for air-free operations and also permits access into the delivery stem for easy clean-out. One piece, easily removed grooved PTFE auger delivers powders at a uniform rate. Funnel has a lower inner joint and top outer, both being the size listed.
Chemglass Life Sciences 10mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm PTFE Stpk, 205mm OAH
10mL Addition Funnel, Graduated, 14/20 Joint Size, 2mm PTFE Stopcock, 205mm OAH. Cylindrical style addition funnel similar to CG-1710, but with a PTFE stopcock. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Ace Glass, Inc. 250ML SIDE POWDER DISP FUNNEL
250mL side-operated, screw-feed powder dispensing funnel, for use with up to 25 mesh. Features a #15 Ace-Thred at the top, a large, 1-1/4” knob, and top female and bottom male 24/40 joints.
Chemglass Life Sciences 50mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stpk
50mL Addition Funnel, Cooling Jacket, 14/20 Joint Size, 2mm Stopcock. Jacket permits the cooling of the contents of the funnel by means of dry ice. Drain outlet is 8mm O.D. With a standard taper top outer joint and lower inner joint, both being the same size, and pressure equalizing arm.
Ace Glass, Inc. 600mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
600mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
Ace Glass, Inc. 2000ML FUNNEL 2000ML FUNNEL
2000mL graduated cylindrical addition funnel with a 24/40 standard taper stopper joint. Stopcock and Stopper not supplied.

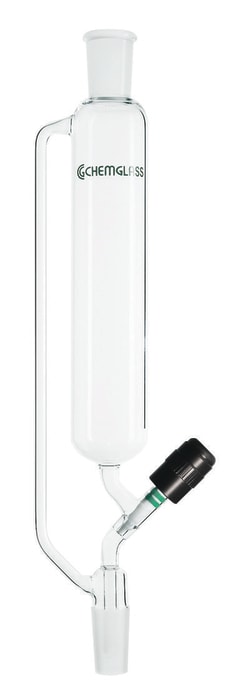

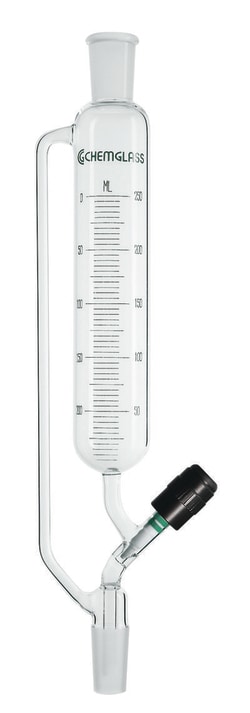

Chemglass Life Sciences 250mL Funnel, Addition, 24/40 Joint Size, Valve On Side Arm, Airfree, Schlenk
250mL Funnel, Addition, 24/40 Joint Size, Valve On Side Arm, Airfree, Schlenk. Lower outlet is a standard taper inner joint and has a CG-961-01 0-4mm Chem-Vac™ Chem-Cap valve. Top outer joint is the same size as the lower inner joint. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve. This item comes with the inlet valve.
Ace Glass, Inc. Funnel, addition, 200mL, 24/40 top & bottom, 2mm glass stopcock sidearm, 0-4mm valve bottom, No-Air
Funnel, addition, 200mL, 24/40 top & bottom, 2mm glass stopcock sidearm, 0-4mm valve bottom, No-Air
