Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Beads, Borosilicate Glass, 6mm, Approx. 1, 500 Pcs. Per Lb.
Beads, Borosilicate Glass, 6mm, Approx. 1,500 Pcs. Per Lb. Solid borosilicate spheres can be used as distillation column packing, boiling stones or to provide support for chromatography columns used in gel filtrations. Beads have excellent chemical resistance. Packed in boxes containing one pound.
Chemglass Life Sciences Beads, Borosilicate Glass, 1mm, Approx. 135, 000 Pcs. Per Lb.
Beads, Borosilicate Glass, 1mm, Approx. 135,000 Pcs. Per Lb. Solid borosilicate spheres can be used as distillation column packing, boiling stones or to provide support for chromatography columns used in gel filtrations. Beads have excellent chemical resistance. Packed in boxes containing one pound.
Chemglass Life Sciences Scrubber/Absorber Tube Only, Arsine Generator
Scrubber/Absorber Tube Only, Arsine Generator. Replacement scrubber/absorber tube for item CG109001. Complete item CG109001 consists of a 125mL Erlenmeyer flask and scrubber tube both having 24/40 standard taper joints. Also supplied complete with one CG-145-05, size 24 Keck clip. Glass beads may be added to the absorber tube to enhance the gas mixing.
Chemglass Life Sciences Bump Trap, 250mL, Rotary Evaporator, 24/40 Top Outer, 29/42 Lower Inner
Bump Trap, 250mL, Rotary Evaporator, 24/40 Top Outer, 29/42 Lower Inner. Used between the vapor tube and evaporation flask on a rotary evaporator to prevent contents of the flask from being drawn into the condenser in the event of “bumping.” Traps have a 24/40 top outer joint and the listed size of lower inner joint.
Chemglass Life Sciences Vacuum Trap, Serrated Hose Connections, Complete, Trap Bottle 54mm OD x 275mm Overall Length, 50/50 Jt.
Vacuum Trap, Serrated Hose Connections, Complete, Trap Bottle 54mm OD x 275mm Overall Length, 50/50 Jt. Two piece construction for easy removal of condensate. Inlet and outlet are 180º apart for installation into a variety of vacuum systems. Stopper has a standard taper inner joint and body has an outer joint. Body length is the overall length from the top of the joint to the bottom of the round bottom. Serrated hose connections have an O.D. of 13mm at the smallest serration and 16mm at the largest serration.
Ace Glass, Inc. Distillation system, alginates assay
Distillation system, alginates assay. The system includes a metering valve with flow meter tube set, 250ml flask and mantle, reflux condenser with u-tube and hose connection adapters and a 250ml gas washing bottle. 5/16in ID Vinyl tubing.

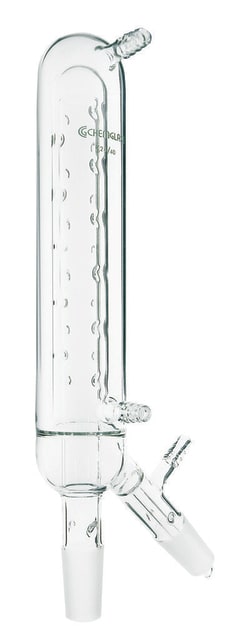

Chemglass Life Sciences Condenser, Concentrator, 340mm, 29/42 Joint, 200mm Inner Tube Height
Condenser, Concentrator, 340mm, 29/42 Joint, 200mm Inner Tube Height. Vapors rise to the top of inner tube then travel downward and condense in this highly efficient concentrator. Condensate drains through the side tube which has a standard taper inner joint the same size as the lower inner uptake joint. Serrated hose connection for connecting to vacuum source. Hose connections for both the cooling jacket and vacuum source have an O.D. of 10mm. Available with detachable hose connections on a special order basis.
Ace Glass, Inc. DISTILLATION HEAD W COND JCKT DISTILLATION HEAD W COND JCKT
14/20 200mm distillation head with condenser jacket on side arm. Thermometer joint is 10/30. Side arm is at a 75 degree angle.

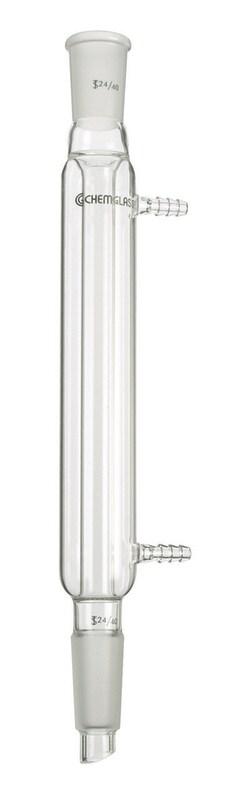

Chemglass Life Sciences Condenser, Liebig, 620mm, 24/40 Joint, 500mm Jacket Length
Condenser, Liebig, 620mm, 24/40 Joint, 500mm Jacket Length. Condenser has a standard taper outer joint at the top and a lower inner drip tip joint. Hose connections have an O.D. of 10mm at the middle serration.
Chemglass Life Sciences Distilling Column, 14/20 Joint, 10 x 130mm, Hemple
Distilling Adapter, Double, 10° Angled Side Neck, 24/40 Joint, 6mm PTFE Stopcock, 1/2" Swagelok. Adapter is designed for use with flasks or reaction vessel lids that have a 10° angled side neck. Adapter has a lower inner joint and two top outer joints. Lower stopcock is a 6mm PTFE stopcock with a 1/2” or 3/4” OD distillate takeoff for use with a compression fitting and TFE tubing. PLEASE NOTE: ADAPTER CAN BE USED WITH COMPOUND ANGLED SIDE NECKS.
Chemglass Life Sciences Rings, Raschig, 6 x 6mm, Distilling Column
Rings, Raschig, 6 x 6mm, Distilling Column. Rings are made of borosilicate glass and sold in one pound packages.
Chemglass Life Sciences 35mL HW Pressure Vessel, Cylindrical, #15 Internal Thread, Complete, 25.4mm O.D. x 190mm Length, Bushing Size/15
35mL Heavy Wall Pressure Vessel, Cylindrical, #15 Internal Thread, Complete, 25.4mm O.D. x 190mm Length, Bushing Size/15. Heavy wall pressure vessels have an internal thread for use with PTFE bushings as pressure seals. The design allows hand tightening/loosening for easy access into the vessel. O-ring is positioned on the bushing above the thread for improved sealing. Supplied complete with vessel, PTFE bushing & Viton o-ring. Optional Perfluoro o-ring has the chemical resistance & service temperature range similar to Kalrez 4079. See CG-362, CG-364, and CG-366 for optional PTFE Bushings.IMPORTANT NOTICE: ALL CHEMGLASS PRESSURE VESSELS ARE TESTED AT 150 PSI, OR APPROX TWO AND ONE-HALF TIMES THEIR RECOMMENDED WORKING PRESSURE. HOWEVER, CHEMGLASS DOES NOT GUARANTEE THE VESSEL FROM BREAKING UNDER PRESSURE, DUE TO THE NATURE OF MATERIAL AND CONDITIONS BEYOND OUR CONTROL. CHEMGLASS RECOMMENDS THE USE OF SAFETY SHIELDS AND/OR OTHER SAFETY EQUIPMENT.
