Addition Funnels
Chemglass Life Sciences 50mL Powder Addition Funnel, 29/26 Joint Size, Auger A
50mL Powder Addition Funnel, 29/26 Joint Size, Auger A. Facilitates the delivery of free-flowing, granular solids into reactions. Pressure equalizing arm is equipped with a vented stopper for air-free operations and also permits access into the delivery stem for easy clean-out. One piece, easily removed grooved PTFE auger delivers powders at a uniform rate. Funnel has a lower inner joint and top outer, both being the size listed.
Wilmad Labglass FUNNEL ADD CYL GRAD 25ML 14/20
Funnel Addition, Graduated, Pressure Equalizing, PTFE Stopcock. Capacity: 25mL; Subdivisions: 0.5mL; Joint Size:14/20; Stopcock Bore: 2. Standard taper Outer joint at top and standard taper joint w/ drip Tube at bottom.
Chemglass Life Sciences 60mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stpk, 265mm OAH
60mL Addition Funnel, Graduated, 24/40 Joint Size, 2mm PTFE Stpk, 265mm OAH. Cylindrical style addition funnel similar to CG-1716, but with PTFE stopcocks. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Chemglass Life Sciences 500mL Addition Funnel, Graduated, 29/42 Joint Size, 4mm PTFE Stopcock, 445mm OAH
500mL Addition Funnel, Graduated, 29/42 Joint Size, 4mm PTFE Stopcock, 445mm OAH. Cylindrical style addition funnel similar to CG-1710, but with a PTFE stopcock. Funnels with 14/20 and 19/22 joints are supplied complete with a stopper. For replacement stoppers see CG-3000.
Ace Glass, Inc. 3000mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
3000mL Addition funnel with Ace-Thred™ connections for a leak-proof seal.
Ace Glass, Inc. 125mL graduated cylindrical addition funnel
125mL graduated cylindrical addition funnel with a 24/40 standard taper stopper joint. Stopcock and Stopper not supplied.
Ace Glass, Inc. Addition funnel, 9.5L, #25 Ace-Thred bottom, body only
9.5L addition/separatory funnel body for use where large volumes are needed. The cylindrical shape necks down to a #25 Ace-Thred.
Ace Glass, Inc. Funnel, addition, graduated, metering stopcock, 25mL, 14/20
Funnel, addition, graduated, metering stopcock, 25mL, 14/20
Ace Glass, Inc. Funnel, addition, graduated, needle valve stopcock, 60mL, 14/20
Funnel, addition, graduated, needle valve stopcock, 60mL, 14/20
Ace Glass, Inc. Funnel, addition, graduated, PTFE stopcock, 60mL, 14/20
60mL pressure equalizing addition funnel with standard PTFE stopcock. Features include 14/20 standard taper joints, protected drip-tip, equalizing arm, and double scale graduations calibrated from the stopcock.
Ace Glass, Inc. 50mL graduated cylindrical funnel, 14/20 top, 14/20 bottom, metering valve stopcock plug
50mL graduated cylindrical funnel with 14/20 top and bottom joints, a drip stem, and double scale graduations that are calibrated from the stopcock. Drip stem does not extend beyond the joint, thereby eliminating a possible source of breakage. Funnel has a metering valve stopcock plug.
Ace Glass, Inc. 100mL graduated funnel, #25 Ace-Thred bottom
100mL graduated funnel with a #25 Ace-Thred bottom. Funnel is part of the ACE borosilicate glass filtration apparatus that accomm ODates 25mm membrane filters.

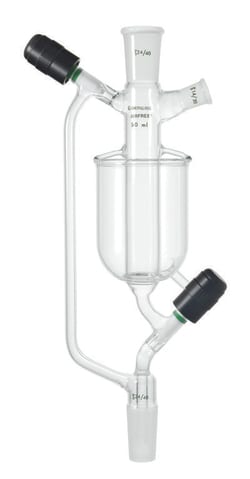

Chemglass Life Sciences 150mL Funnel, Cold Addition, 24/40 Top Outer, 14/20 Lower Inner, 340mm OAL, Airfree, Schlenk
150mL Funnel, Cold Addition, 24/40 Top Outer, 14/20 Lower Inner, 340mm OAL, Airfree, Schlenk. Used in the preparation of block copolymers or any chemical synthesis requiring high vacuum techniques. Funnel features a large diameter ring seal between the coolant container & the addition funnel body. The open cup design of the coolant chamber allows for easy addition of coolant, particularly dry ice chunks. Constructed using grease-free 0-4mm Chem-Vac™ Chem-Cap valves on the pressure equalizing arm & lower inner joint. Positioning of the valves permits the funnel contents to be kept under inert conditions prior to use or during loading. A 14/20 outer joint is sealed on the funnel body above the coolant chamber for syringe sampling of the funnel contents. Funnel has a drain tube on the rear of the coolant chamber. Designed & developed by William J. Swatos & Barton J. Schober, Department Of Materials Science & Engineering, Polymer Science Program, Penn State University
Chemglass Life Sciences 60mL Funnel, Addition, Graduated, 14/20 Joint Size, Airfree, Schlenk
60mL Funnel, Addition, Graduated, 14/20 Joint Size, Airfree, Schlenk. Pressure equalizing addition funnel, with Graduations, and a glass T-Bore stopcock in the equalizing arm permitting the purging and isolation of the funnel contents for storage. Both top outer and lower inner joints are the same size. Lower stopcock is a glass straight bore stopcock. Both stopcocks are 2mm high vacuum glass stopcocks having a Stainless Steel constant pressure retention device.

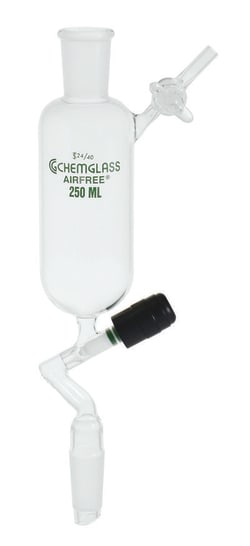

Chemglass Life Sciences 250mL Funnel, Addition, 24/40 Joint Size, 2mm Glass Stopcock On Side Arm, Airfree, Schlenk
250mL Funnel, Addition, 24/40 Joint Size, 2mm Glass Stpk On Side Arm, Airfree, Schlenk. Lower outlet is a standard taper inner joint and has a CG-961-01 0-4mm Chem-Vac™ Chem-Cap valve. Top outer joint is the same size as the lower inner joint. Available with a choice of a 2mm high vacuum glass stopcock having a Stainless Steel constant pressure retaining device or a 0-4mm Chem-Cap Airfree inlet valve. This item comes with the stopcock.
