Data Loggers
Data Loggers
Devices used to collect and record physical data such as temperature, humidity, speed, sound, and light levels to ensure sample quality and regulatory compliance during storage, transportation, and handling. May be wireless and with/without display.
Data loggers can be used to monitor and record various environmental conditions to help maintain sample quality and regulatory compliance during storage, transportation, and handling.
These electronic devices record data over time or in relation to location. Generally, they are small, battery powered, portable, and equipped with a microprocessor, data storage memory, sensors, and remote connectivity.
They may interface with a computer and have software that activates the device or allows the collected data to be viewed and analyzed. Others may have a local interface device (keypad or LCD) and act as stand-alone devices. Some data loggers are programmable, while others have static or limited capabilities. The main benefit of data loggers is their ability to collect data while left unattended for a specific period.
Data loggers may measure more than one parameter. If temperatures are being recorded, choose a temperature logger that records within the intended range. Data loggers may also have the capability to record minimum and maximum temperatures to help ensure the products or samples have not been exposed to temperatures outside a specific range.
Sensors may be built-in or external. External probes may be made to withstand harsh environments and may be connected via cable for remote measurements. A single data logger may also have more than one channel to measure internal and external temperatures simultaneously, for example.
Other features available for data loggers include maximum days’ measurements, programmable intervals, submersible probes, waterproofing, single use, traceability, and permanent or erasable data capabilities.
Vernier™ Projectile Stop
The Projectile Stop has one job–to keep the projectiles from the Vernier Projectile Launcher from rolling out of sight. Place the Projectile Stop in the launch line, beyond the landing site, and the projectile will be caught. The Projectile Stop is heavy foam-coated steel that stays where you put it.
Vernier™ Pyranometer
The Pyranometer measures the power of electromagnetic radiation in watts per square meter. It is sensitive to near infrared, visible, and UV radiation, where 90% of solar energy is concentrated.
Vernier™ Oxidation-Reduction Potential Sensor
The Oxidation-Reduction Potential (ORP) Sensor measures the ability of a solution to act as an oxidizing or reducing agent. Use the ORP Sensor to measure the oxidizing ability of chlorine in swimming pools or to determine when the equivalence point has been reached in an oxidation-reduction reaction.
Microdaq Onset HOBO MX1101 Bluetooth Temperature and Humidity Data Logger
Integrated Sensors for Temperature and Humidity Measurements in an Indoor Environment. Wireless Transmission of Recorded Readings to Android devices, iPhone, iPad Using Bluetooth Smart LE Communications. -20°C to 70°C and 1% to 90% RH Measurement Ranges with a ±0.21°C and 2% RH Accuracy. (2) User-Replaceable AAA Alkaline Batteries with 1 Year Life (1 Minute Sampling Rate). Stores up to 84,650 Measured Readings with Date/Time Stamp if Bluetooth Communications Not Available. Includes Command Strip, Double-Sided Tape, Hook & Loop Strap and (2) AAA Alkaline Batteries. HOBOmobile App Available on the Apple Store and the Google Play Store.
Lascar Electronics Inc Pack of 10 Chilled Goods Data Logger
Sold in packs of 10 data loggers, the low cost EL-PDF-1-001 data logger comes with configured alarms for use in Chilled environments – simply press the Start button to begin logging. The LEDs give a quick status update & show whether the temperature has exceeded an alarm condition at any point. When a logging session is finished, simply tear open the waterproof wallet to reveal the USB connector & plug into your PC. The logger will then automatically generate a PDF report that you can save to your PC. The "Plug & Play" functionality & compact, lightweight design of this logger make it ideal for logistics use.A cumulative alarm feature is available upon request. This is designed to trigger if the temperature has been within a specified range for a specified amount of time through the duration of the whole log. There will be an LED indication when you are in the cumulative alarm regionbut an alarm will not be triggered until the specified amount of time has been exceeded.

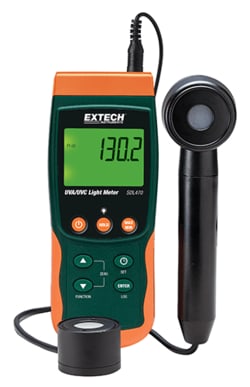

GENIE GROUP UVA/UVC Light Meter/Datalogger
The SDL470 is a UVA/UVC Light Meter and Data logger. The SDL470 can measure both long wave and short wave UV irradiance under UVA and UVC light sources respectively. This meter features a cosine correction filter, data logging to Excel format, offset adjustment for relative measurements, type K/J thermocouple input for temperature measurements (probe sold separately), record/recall modes, min and max readings, data hold plus auto power off with disable function. This product comes with a built-in tilt stand, SD memory card, UVA light sensor with protective cover, UVC light sensor, hard case, universal AC adaptor, and 6 x AA batteries.
Lascar Electronics Inc High-accuracy temperature data logger with display
Monitor the environment you live and work in with the EasyLog EL-SIE-1+. Advanced onboard software means there is nothing to install on your PC or Mac – simply connect the logger with a USB cable and use your web browser to configure the device and view, analyse and download your data. It really couldn’t be easier.The bright and clear display shows current readings and device status at a glance, and the product is supplied with a bracket for secure wall mounting. EL-SIE-1+ uses standard AAA batteries and typical battery life is over 1 year.The EL-SIE-1+ is a high-accuracy model version and measures temperature only. Other models which measure temperature and humidity, or temperature, humidity and pressure, are also available. Key markets include facilities and building management, logistics, warehouses and storage, and clean rooms and other pressure-sensitive environments.
Control Solutions Inc LOGTAG DOCKING STATION W/USB
Docking Station with USB Connection LogTag's unique interface cradle design provides rapid and reliable LogTag data transfer to LogTag Analyzer software in only a few seconds. LogTag Analyzer software provides chart production along with reporting. Users can zoom in, annotate, and chart multiple units on the same graph. Reports not only show how many alarms occurred, but how long the alarm occurred.
Deltatrak Inc USB PDF Reusable Data Logger, Packaged individually
A built-in USB connector makes it easy to program and download the logger without special reading devices. Data can be downloaded to a PC or tablet with USB port, without needing to install FlashPDF Program Manager software on additional computers. FlashPDF Program Manager software allows users to configure logging parameters, such as sample intervals, high/low alarm limits, automatic or manual start, and alarm delay. LCD Display. Measurement Range -40F to 122F (-40C to 50C) Temperature Resolution 0.1F/C Accuracy 1.0F from 14F to 77F (0.5C from -10C to 25C) 2.0F above 77F (1.0C above 25C) 2.0F below 14F (1.0C below -10C) Data Capacity 32,496 points Programmable Alarm Levels High & Low levels displayed on LCD Battery Two AAA Lithium batteries, LCD % remaining power indicator Certification CE Mark, NIST traceable, RoHS Compliant FAA Compliance RTCA/DO-160 Display LCD, Red LED Alarm IP64 (with silicon cap on) System Requirements Windows PC with current OS
Lascar Electronics Inc USB Industrial Temperature Data Logger
This standalone data logger measures more than 32,000 readings over a -40 to +125°C (-40 to +257°F) range. Its robust stainless steel assembly provides protection from corrosion, impact and water ingress to IP67/NEMA 4X. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with a specialist high temperature ⅔ AA battery.
Control Solutions Inc VFC 5000-TP Vaccine Monitoring Data Logger
This standalone data logger measures and stores up to 32,510 temperature readings from the supplied thermistor probe which is attached via the socket at the base of the unit. The user can easily set up the logging rate and start-time, and download the stored data by plugging the data logger into a PC’s USB port and running the purpose designed software under Windows XP, Vista, 7 or 8. Data can then be graphed, printed and exported to other applications.
Lascar Electronics Inc High Accuracy Temp & Relative Humidty Data Logger with LCD Display
This standalone data logger measures over 16,000 readings over a -35 to +80°C (-31 to +176°F) and 0 to 100% humidity (RH) range. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum temperature logs seen during the session for both temperature and humidity. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software provided. Data can then be graphed, printed and exported to other applications for detailed analysis. Supplied with ½ AA battery and wall mount clip.
