Distillation Labware
Glassware and replacement parts designed to carry out distillations in laboratory settings; includes condensers, distillation heads, receivers, etc. Products are available for various scales and for specialty distillations.
Distillation is a process used widely in the laboratory or in wider working environments for separating or purifying liquids or liquid mixtures based on the different boiling points of individual components.
Distillation Applications:
• Separation and purification of miscible liquid mixtures in organic chemistry
• Drying of solid residues and/or solvent removal
• Fractional distillation of liquids from polymers and petroleum products
• Removal of particulates or other solid contaminants
• As part of a water purification system for production of distilled water for laboratory use
• Specialist steam distillation-based applications such as Kjeldahl analysis of nitrogen and proteins in food, beverage, or environmental samples
What Types of Distillation Equipment Are Available?
Conventional distillation apparatus, typically comprising individual, jointed borosilicate glassware components assembled by the user (depending upon the application), using appropriate clamps, stands, and supports. Most conventional distillation assemblies combine a round-bottomed distilling flask to contain and heat the liquid(s) that require purification, fitted with a stoppered or jointed neck to which is attached a downward-sloping, inclined side-arm for connection to a condensing unit to cool the heated vapors back down to their liquid state. Heating mantles are the preferred heat source for improved temperature control. These conventional distillation units are also available supplied complete and ready-assembled for added convenience and ease of use.
Specialized automated distillation equipment, notably units designed for the determination of volatile acidity and alcoholic strength by volume in wines, musts, and alcoholic beverages, and units designed for Kjeldahl nitrogen or protein determinations.
Chemglass Life Sciences Distilling Column, Hemple, Minum-Ware
Distilling Column, Hemple, Minum-Ware. Hemple style column with indents just above the lower inner joint to support packing material. Top threaded outer joint and lower inner drip tip joint are 14/10. Supplied complete with open-top screw cap (MW-102-33) and Viton O-ring (MW-100-08).
Chemglass Life Sciences Lower Vessel Only, 40ml Sublimer
Lower Vessel Only, 40ml Sublimer. Replacement part for CG303401 sublimator.
Chemglass Life Sciences Adapter, Distilling Trap, Kjeldahl, 14/20 Joint Size
Adapter is placed above flask to prevent carry-over of reactions which have a tendency to foam. With top standard taper outer and lower inner joints, both being the same size.
Ace Glass, Inc. Distilling head only, with 14/20 joints. Does not include condenser.
Distilling head only, with 14/20 joints. Does not include condenser.
Sigma Aldrich Fine Chemicals Biosciences AldrichR Vigreux column Va1EA
Vigreux indents run the entire length of the column and act as the packing for the column.Jacketed version is pictured.

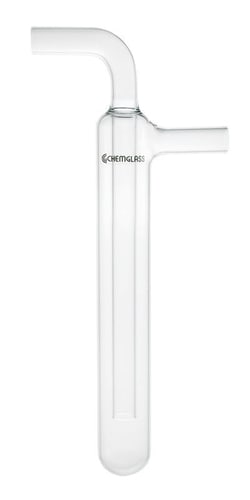

Ace Glass, Inc. 38mm vacuum trap where the top is bent in line with side tube.
38mm vacuum trap where the top is bent in line with side tube.
Ace Glass, Inc. Condenser, double coil, 1in beaded pipe top and bottom joints
Double coil condenser with 1 beaded pipe top and bottom joints. Supplied with #15 Ace-Thred connections for Ace-Safe hose barbs. Unit length is approximately 390mm and the O.D. is approximately 85-90mm. Condenser is designed to fit larger systems and pilot plant reactors.
Ace Glass, Inc. Condenser, double coil, 45/50 outer top, 45/50 inner bottom
Double coil condenser with 45/50 outer top and 45/50 inner bottom joints. Supplied with #15 Ace-Thred connections for Ace-Safe hose barbs. Unit length is approximately 390mm and the O.D. is approximately 85-90mm. Condenser is designed to fit larger systems and pilot plant reactors.

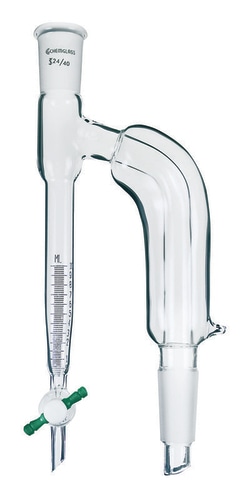

Ace Glass, Inc. 24/40 10mL Dean & Stark Moisture Test Receiver
24/40 10mL Dean & Stark Moisture Test Receiver with return line to allow excess solvent to return to the boiling flask. Suitable for ASTM D 95 and E 123.
Chemglass Life Sciences Condenser, Reflux, 300mm, 24/40 Joint, 125mm Coil Length, GL-14 Screw Cap, Removable Hose Connections
Condenser, Reflux, 300mm, 24/40 Joint, 125mm Coil Length, GL-14 Screw Cap, Removable Hose Connections. Coil style reflux condenser with a large diameter jacket and coil, similar to CG-1213-L but with detachable hose connections. Connections are made of polypropylene and provide a safe and easy way of connecting and disconnecting flexible tubing to the condenser. Supplied complete with two GL open top screw caps and two bent polypropylene hose connections. Condensing area is the same as CG-1213-L.
Chemglass Life Sciences Distilling Head, 500mL, Solvent, Modified, 24/40 Inner Joint On Take-Off
Distilling Head, 500mL, Solvent, Modified, 24/40 Inner Joint On Take-Off. Designed to maintain distilled solvents in an inert atmosphere. Top of main vapor tube is open and an additional vapor tube has been added to decrease risk of pressure buildup. Upper sampling port has a 4mm PTFE stopcock with a 14/20 outer joint for use with CG-3022 septa. Lower drain is centered to allow total drainage of storage head. Double oblique 2mm bore PTFE stopcock on the 250 through 1000mL sizes allows for removal of distilled solvent or return to flask. The 250mL size has a 4mm double oblique stopcock. Both the uptake tube and top outer joints are 24/40, while the take-off tube is supplied with a 24/40 inner joint.**Design suggested by Dr. A.K. Saksena, Schering Plough Research Institute, Kenilworth NJ.
Chemglass Life Sciences Distilling Head, Short Path, Vigreux Indents, 14/20 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 195mm Width x 150mm Height
Distilling Head, Short Path, Vigreux Indents, 14/20 Thermometer Joint, 24/40 Lower Inner Joint, Approx. 195mm Width x 150mm Height. Designed for use with small quantities where hold up between the flask and receiver must be kept to a minimum. The thermometer bulb and stem serve as column packing. Upper hose connections are for cooling lines while the lower connection is for vacuum. Available with Vigreux indentations to improve efficiency. NOTE: The 14/20 size accepts a 1” immersion 7/12 or 10/18 thermometer, while the 24/40 and 29/42 sizes accepts a 2” immersion, 10/30 thermometer.
